AGRICULTURAL MACHINERY
Product Series DH7-6000 Specifications Value/Specification Throughput capacity kg/s 20 Overall dimensions (without header) (L × W × H) mm 10706×4004×4038 (without header) Operating weight (excluding header) kg 20785 (unloaded) Min. ground clearance mm 460 Model / YC-K11480 Number of cylinders cylinders 6 Fuel tank capacity L 760 Structural design / 3-stage tangential separation + twin…
Product Series F6-3000 Specifications Value/Specification Throughput capacity kg/s 15 Overall dimensions (without header) (L × W × H) mm 8225×3650×3975 Operating weight (excluding header) kg 13248 Min. ground clearance mm Model / YCA07K300-T300/YCA08300-S301 Number of cylinders cylinders 6 Fuel tank capacity L 605 Structural design / Tangential separation +twin axial rotors Cylinder (diameter × length)…
Function Zoomlion H8-5500 Parameters Unit Value/Specification Throughput Capacity kg/s 22 maximum speed km/h 40 Minimum Ground Clearance mm 466 Emission Standard / Euro 3A Horsepower hp 580 Fuel Tank Capacity L 1100 Width mm 1700 Floating Axes / 6 Feeding System Reversing / ● Dust Removal System / ● Threshing & Separation Technology / Triple Tangential＆Dual…
Product Series TE100 － DH Throughput capacity kg/s 10 Overall dimensions (excluding header) (L × W × H) mm 6100×2900×3420 Operating weight (excluding header) kg 7400 Min. ground clearance mm 330 Model / Yuchai YCA05190-T300 Number of cylinders cylinders 4 Fuel tank capacity L 440 Structural design / Single axial rotor (combined threshing & separation)…
Title Zoomlion Sugarcane Harvester C600 Model C600 Product Name Wheeled sugarcane harvester Overall Dimensions 10350 × 2320 × 5408 mm (L × W × H) Wheel base/Track gauge 2425mm Turning radius 6m Operating weight 9.56t Max. travel speed 18km/h Max. gradeability 20% Fuel tank capacity 280L Hydraulic tank capacity 180L Row spacing ≥ 1.2m Max….
Title Zoomlion Sugarcane Harvester C610 Model C610 Product Name Wheeled sugarcane harvester Overall Dimensions 7178 × 2320 × 3960 mm (L × W × H) Wheel base/Track gauge 2425mm Turning radius 6m Operating weight 9.00t Max. travel speed 18km/h Max. gradeability 20% Fuel tank capacity 280L Hydraulic tank capacity 180L Row spacing ≥ 1.2m Max….

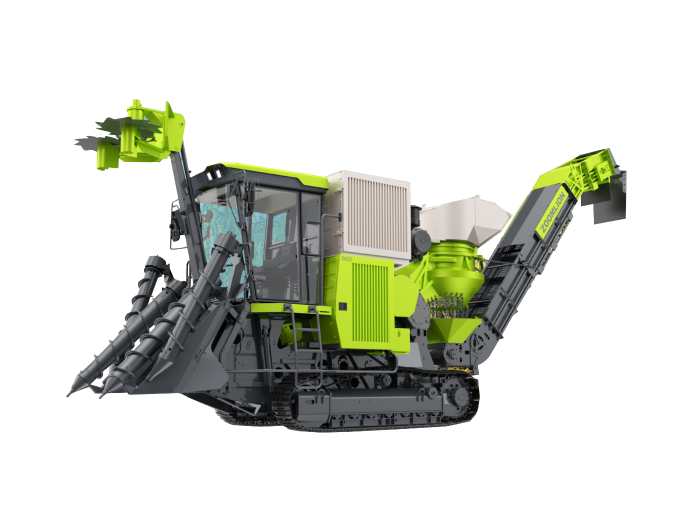

Title Zoomlion Sugarcane Harvester C620 Model C620 Product Name Tracked sugarcane harvester Overall Dimensions 10210 × 2320 × 5408 mm (L × W × H) Wheel base/Track gauge 1550mm Turning radius 1.62m Operating weight 11.61t Max. travel speed 12km/h Max. gradeability 25% Fuel tank capacity 270L Hydraulic tank capacity 180L Row spacing ≥ 1.2m Max….

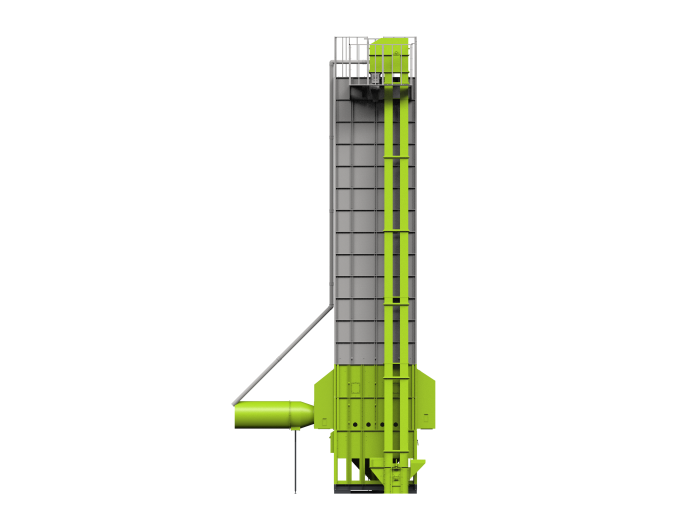

Model 5HXG-30C1 ID No. DC300-C DC300-G Parameter Unit Value/Specification Configuration / Upper auger + lower auger Upper discharge chute + lower auger Structure type (continuous flow/batch recirculating/batch static) / Batch recirculating Heating mode (direct/indirect heating) / Indirect heating Drying principle (concurrent flow/cross flow/mixed flow/counter flow) / Cross flow Overall dimensions (L × W × H)…

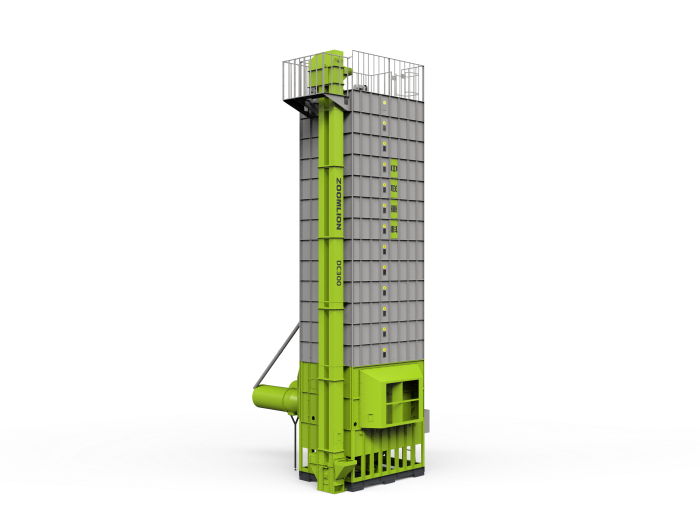

Model 5HXG-30E ID No. DC300-E Configuration / Upper discharge chute + lower discharge chute Structure type (continuous flow/batch recirculating/batch static) / Batch recirculating Heating mode (direct/indirect heating) / Indirect heating Drying principle (concurrent flow/cross flow/mixed flow/counter flow) / Cross flow Overall dimensions (L × W × H) mm 3090×2790×11880 Batch capacity t 30 Moisture removal…
Model 5HXH-30 ID No. DF300-G DF300-E Parameter Unit Value/Specification Upper discharge chute + lower auger Upper discharge chute + lower discharge chute Structure type (continuous flow/batch recirculating/batch static) / Batch recirculating Heating mode (direct/indirect heating) / Indirect heating Drying principle (concurrent flow/cross flow/mixed flow/counter flow) / Mixed flow Overall dimensions (L × W × H)…
