INDUSTRIAL VEHICLE

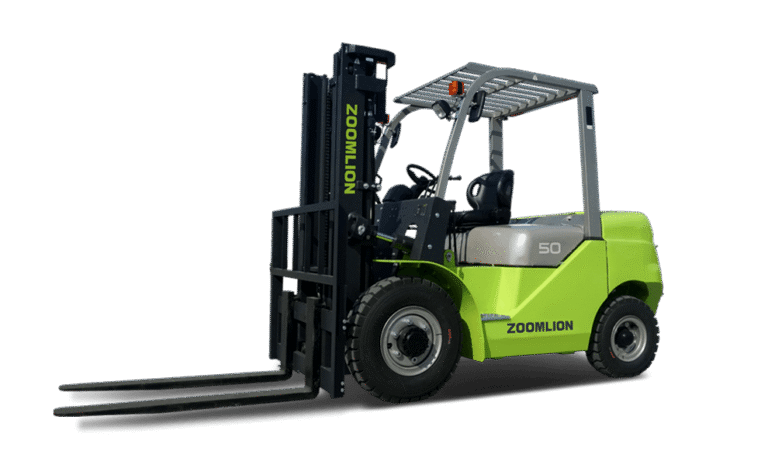

Rated capacity 5000 Load centre 500mm Lifting height 3000mm Free lifting height 140mm Tilting angle 6°/12° Turning radius 2760mm Front overhang 570mm Tread 530mm Wheelbase 2000mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 20MPa Travel (Laden) 18Km/h Travel(Unladen) 19Km/h Lifting(Laden) 410mm/s Lifting(Unladen) 430mm/s Lowering (Laden) ＜600mm/s…

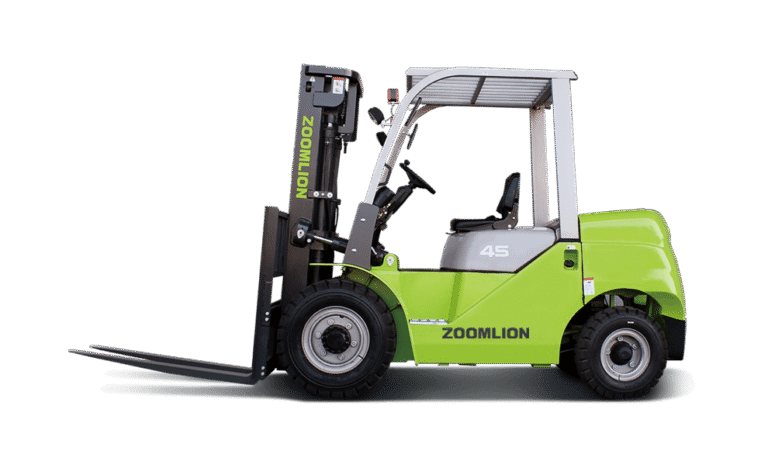

Rated capacity 4500Kg Load centre 500mm Lifting height 3000mm Free lifting height 140mm Tilting angle 6°/12° Turning radius 2760mm Front overhang 570mm Tread 530mm Wheelbase 2000mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 20MPa Travel (Laden) 18Km/h Travel(Unladen) 19Km/h Lifting(Laden) 410mm/s Lifting(Unladen) 430mm/s Lowering (Laden) ＜600mm/s…

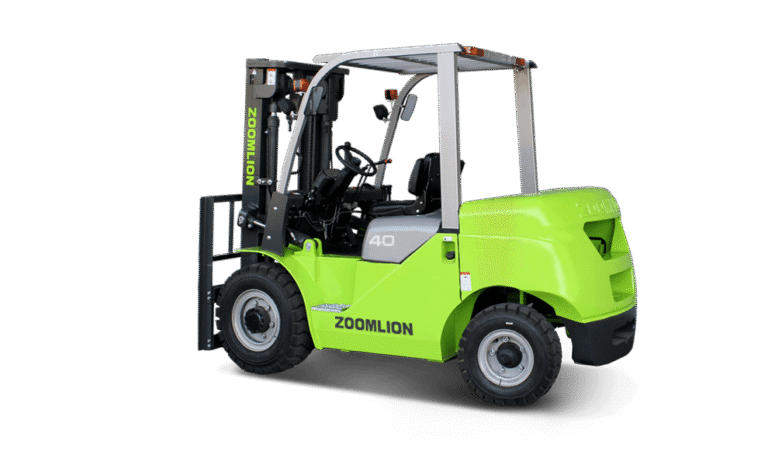

Rated capacity 4000Kg Load centre 500mm Lifting height 3000mm Free lifting height 85mm Tilting angle 6°/12° Turning radius 2700mm Front overhang 500mm Tread 490mm Wheelbase 1900mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 17.5MPa Travel (Laden) 19Km/h Travel(Unladen) 20Km/h Lifting(Laden) 410mm/s Lifting(Unladen) 440mm/s Lowering (Laden) ＜600mm/s…

Rated capacity 3500Kg Load centre 500mm Lifting height 3000mm Free lifting height 145mm Tilting angle 6°/12° Turning radius 2445mm Front overhang 488mm Tread 460mm Wheelbase 1700mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 17.5MPa Travel (Laden) 19Km/h Travel(Unladen) 20Km/h Lifting(Laden) 410mm/s Lifting(Unladen) 440mm/s Lowering (Laden) ＜600mm/s…

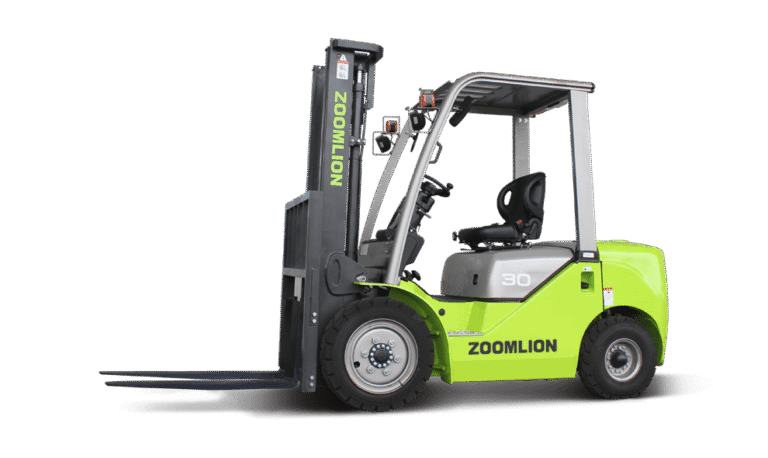

Rated capacity 3000Kg Load centre 500mm Lifting height 3000mm Free lifting height 145mm Tilting angle 6°/12° Turning radius 2410mm Front overhang 483mm Tread 460mm Wheelbase 1700mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 17.5MPa Travel (Laden) 19Km/h Travel(Unladen) 20Km/h Lifting(Laden) 410mm/s Lifting(Unladen) 440mm/s Lowering (Laden) ＜600mm/s…

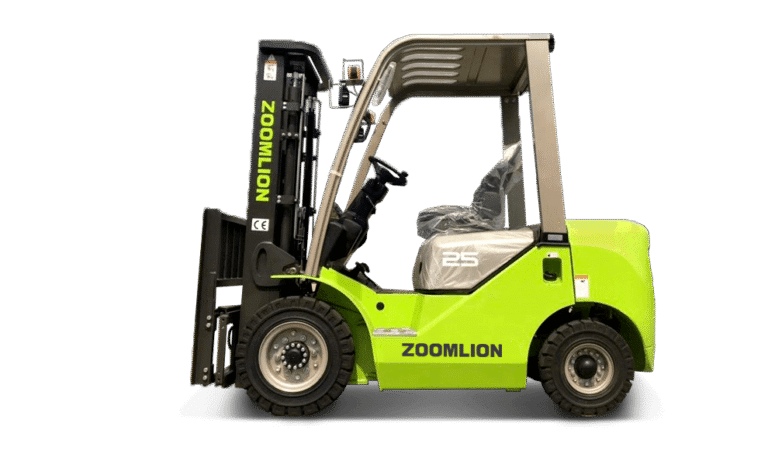

Rated capacity 2500Kg Load centre 500mm Lifting height 3000mm Free lifting height 135mm Tilting angle 6°/12° Turning radius 2240mm Front overhang 473mm Tread 430mm Wheelbase 1600mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 17.5MPa Travel (Laden) 18Km/h Travel(Unladen) 19Km/h Lifting(Laden) 400mm/s Lifting(Unladen) 430mm/s Lowering (Laden) ＜600mm/s…

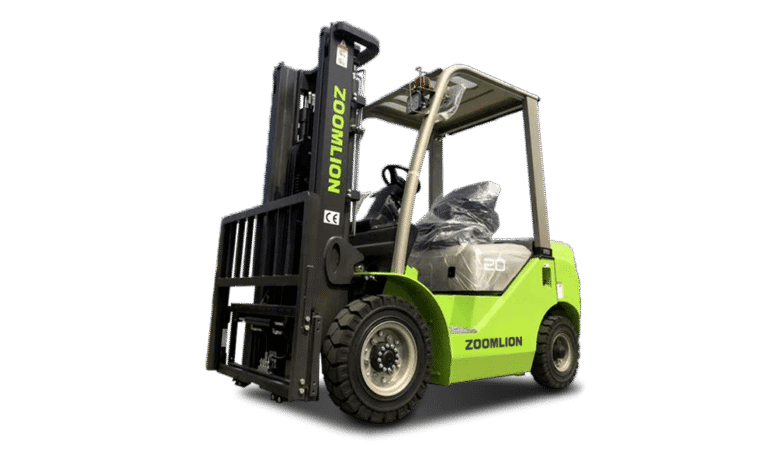

Rated capacity 2000Kg Load centre 500mm Lifting height 3000mm Free lifting height 135mm Tilting angle 6°/12° Turning radius 2240mm Front overhang 473mm Tread 430mm Wheelbase 1600mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 17.5MPa Travel (Laden) 18Km/h Travel(Unladen) 19Km/h Lifting(Laden) 400mm/s Lifting(Unladen) 430mm/s Lowering (Laden) ＜600mm/s…

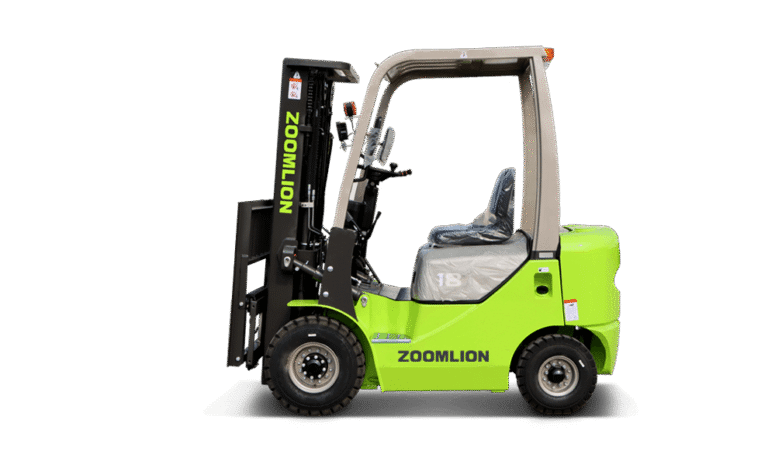

Rated capacity 1800Kg Load centre 500mm Lifting height 3000mm Free lifting height 115mm Tilting angle 6°/12° Turning radius 2060mm Front overhang 400mm Tread 390mm Wheelbase 1400mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 17.5MPa Travel (Laden) 14.5Km/h Travel(Unladen) 15.5Km/h Lifting(Laden) 390mm/s Lifting(Unladen) 420mm/s Lowering (Laden) ＜600mm/s…

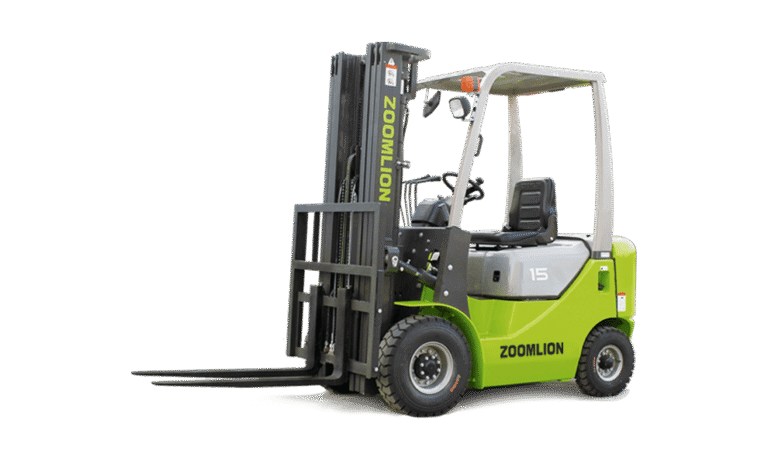

Rated capacity 1500Kg Load centre 500mm Lifting height 3000mm Free lifting height 115mm Tilting angle 6°/12° Turning radius 2060mm Front overhang 400mm Tread 390mm Wheelbase 1400mm Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 17.5MPa Travel (Laden) 14.5Km/h Travel(Unladen) 15.5Km/h Lifting(Laden) 390mm/s Lifting(Unladen) 420mm/s Lowering (Laden) ＜600mm/s…

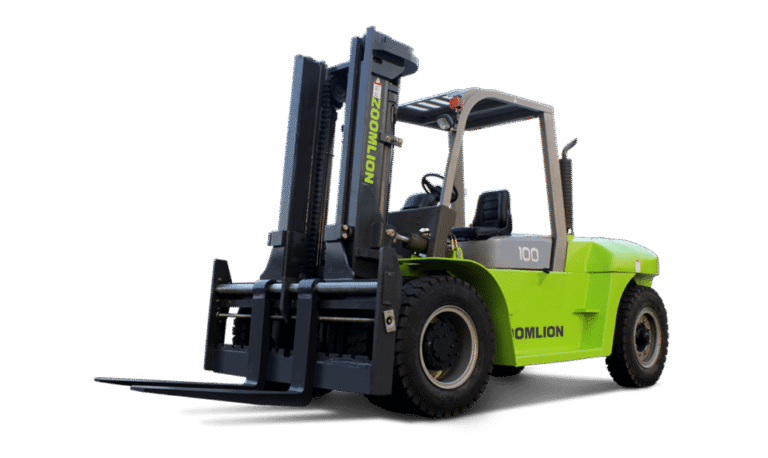

Rated capacity 10000Kg Load centre 600 Lifting height 3000 Free lifting height 220 Tilting angle 6°/12° Turning radius 4080 Front overhang 718 Tread 400 Wheelbase 2800 Fork spread(Min./Max.) – Working aisle width with pallet(Ast) – Service weight – Operating pressure for attachment 20MPa Travel (Laden) 20 Travel(Unladen) 25 Lifting(Laden) 345 Lifting(Unladen) 425 Lowering (Laden) 400…
