Range-Extended Hybrid Articulating Boom Lifts

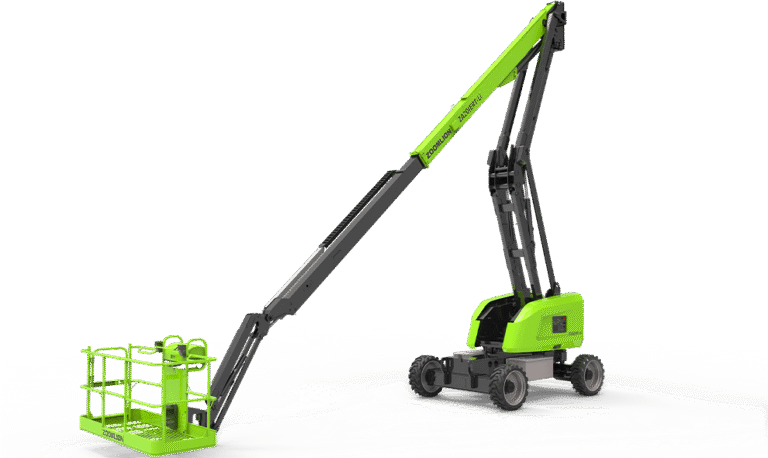

Work Height 21.38m Platform Height 19.38m Horizontal Outreach 12.1m Up and Over Height 8.25m A – Stowed Length 8.8m B – Stowed Width 2.46m C – Stowed Height 2.52m D – Platform Length 244m E – Platform Width 0.91m F – Wheelbase 2.52m G – Ground Clearance 0.4m Platform Capacity 250kg/360kg Drive Speed 5.2km/h Gradeability…

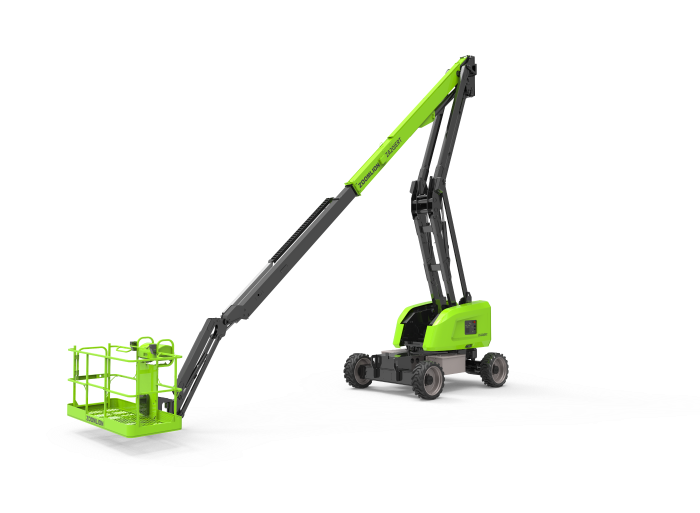

Work Height 21.38m Platform Height 19.38m Horizontal Outreach 12.1m Up and Over Height 8.25m A – Stowed Length 8.8m B – Stowed Width 2.46m C – Stowed Height 2.52m D – Platform Length 2.44m E – Platform Width 0.91m F – Wheelbase 2.52m G – Ground Clearance 0.4m Platform Capacity 250kg/360kg Drive Speed 5.2km/h Gradeability…

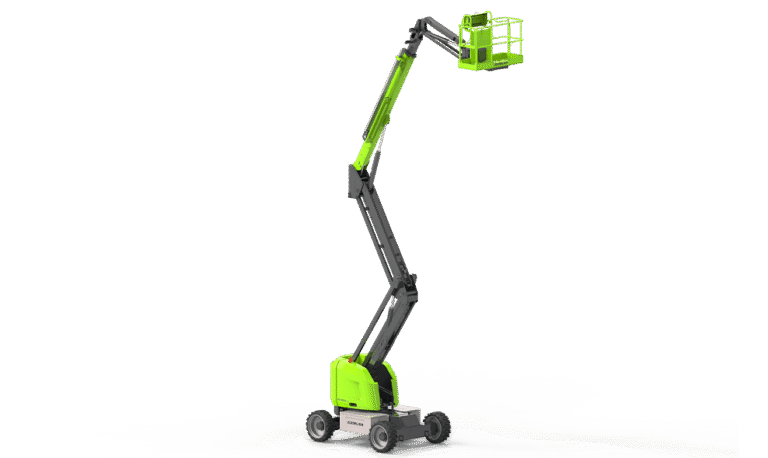

Work Height 17.8m Platform Height 15.8m Horizontal Outreach 9.72m Up and Over Height 8m A – Stowed Length 7.7m B – Stowed Width 2.3m C – Stowed Height 2.23m D – Platform Length 1.83m E – Platform Width 0.76m F – Wheelbase 2.36m G – Ground Clearance 0.36m Platform Capacity 250kg Drive Speed 5.5km/h Gradeability…

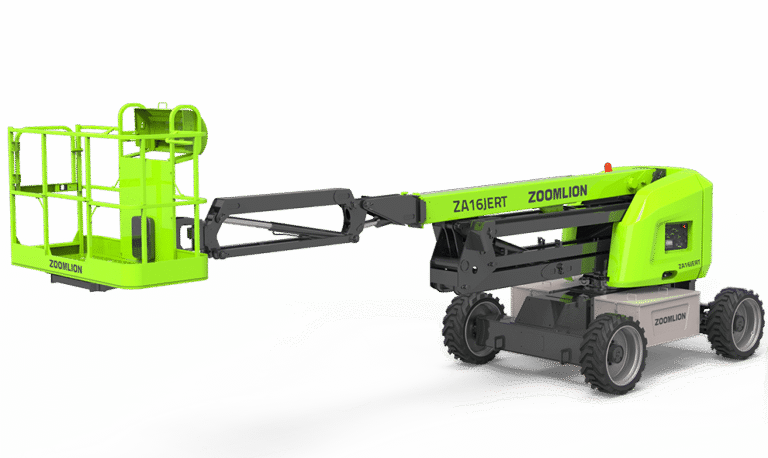

Work Height 17.8m Platform Height 15.8m Horizontal Outreach 9.72m Up and Over Height 8m A – Stowed Length 7.7m B – Stowed Width 2.3m C – Stowed Height 2.23m D – Platform Length 1.83m E – Platform Width 0.76m F – Wheelbase 2.36m G – Ground Clearance 0.36m Platform Capacity 250kg Drive Speed 5.5km/h Gradeability…
Platform Capacity 250/360kg Drive Speed 5.2km/h Gradeability 45% Axles Oscillation 0.2m Turning Radius (Inside) 2.78m Turning Radius (Outside) 5.49m Turntable Swing 360°continuous Platform Rotation ±90° H-Tail Swing 0.64m Max. Working Slope 3°/5° Max. Wind Speed 12.5m/s Battery 48V/314Ah Li-ion battery(Li) Charger 48V/60A Drive Motor AC32V Lift Motor AC32V Auxiliary Power 12V DC Hydraulic Tank Capacity…
