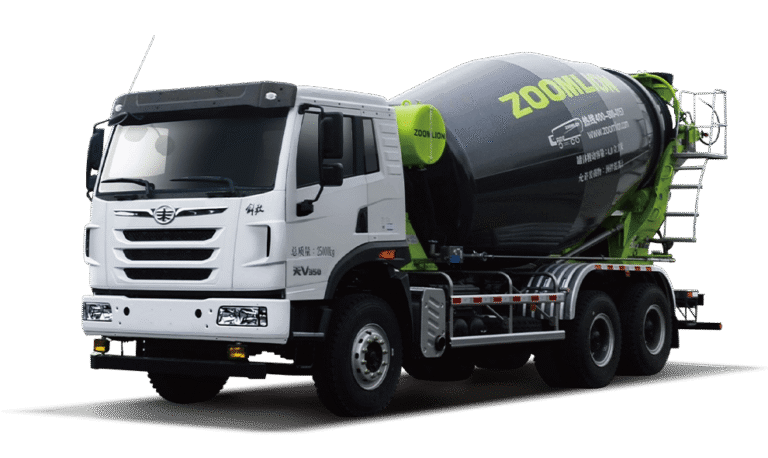

12JBJ
Agitator Capacity 12 m³ Max. Rotation Speed 12-16 rpm Filling Speed ≥4 m³/min Discharging Speed ≥3 m³/min Water Tank 450 L Water Supply Type Air Pressure Range of Slump 50-210 mm Driven by Flywheel P.T.O Power Rating 257/1900 kW/r/min
-
-

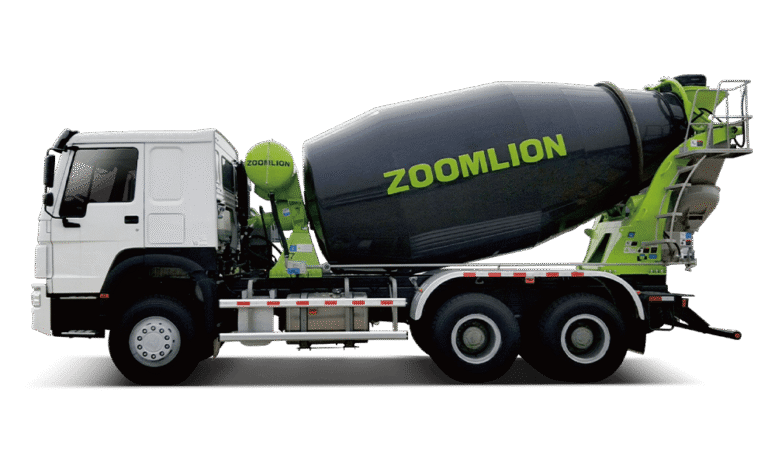

10JBH
Water line 11.6m³ Inclination 14.3° Filling rate 67% Diameter 2350mm Mixing speed 0-16rpm Water tank capacity 450L Water supply pressure 4bar Engine WP10.340E2 Model Rated power 250kW Gearbox HW19709XS Model Front axle 9.5T Middle and rear axle 32T Emission standard CHINA 2
-

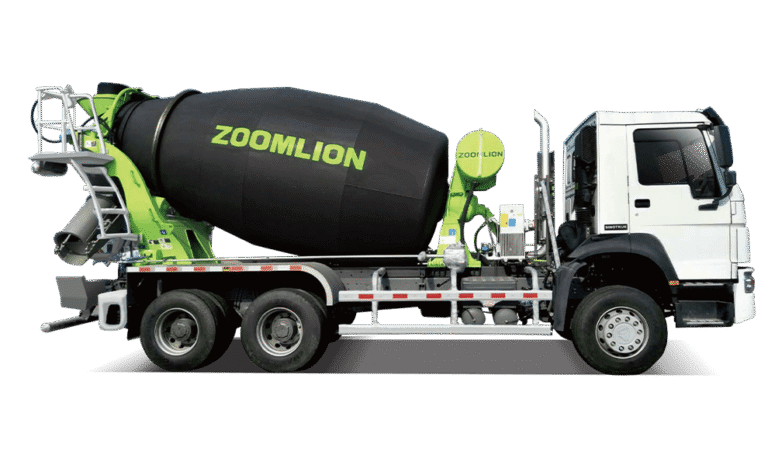

9JBH-R
Agitator Capacity 9 m³ Max. Rotation Speed 12-16 rpm Filling Speed ≥4 m³/min Discharging Speed ≥3 m³/min Water Tank 450 L Water Supply Type Air Pressure Range of Slump 50-210 mm Driven by Flywheel P.T.O Power Rating 247/2200 kW/r/min
-

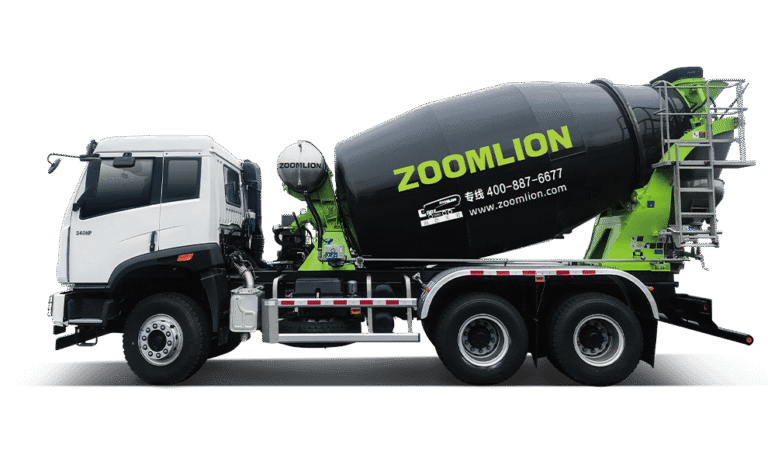

8JBJ-R
Water line 9.9m³ Inclination 14.3° Filling rate 56.45% Diameter 2270mm Mixing speed 0-16rpm Water tank capacity 450L Water supply pressure 4bar Engine WP10.270E53 Rated power 199/1900 kW/r/min Gearbox 9JSD135T Front axle 8.5T Middle and rear axle 26T Emission standard CHINA5
-

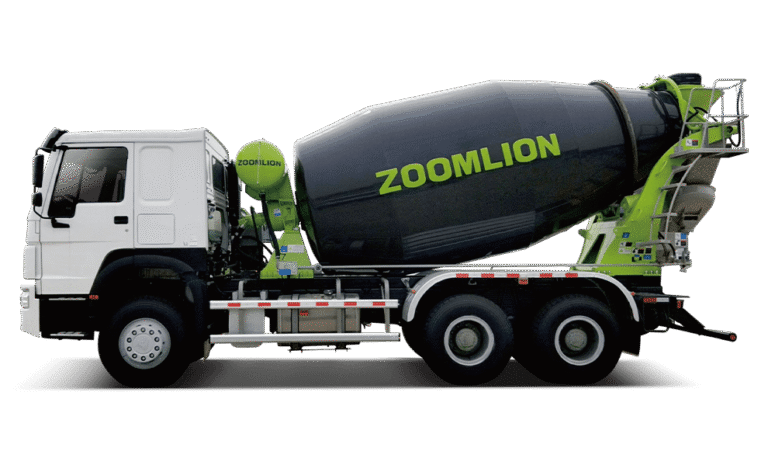

6JBJ-R
Water line 6m³ Inclination 14° Filling rate 56% Diameter 2270mm Mixing speed 0-16rpm Water tank capacity 450L Water supply pressure 4bar Engine CA6DL1-32E5 Model Rated power 238kW Gearbox CA9TB160M Model Front axle 7T Middle and rear axle 22T Emission standard China 5
-

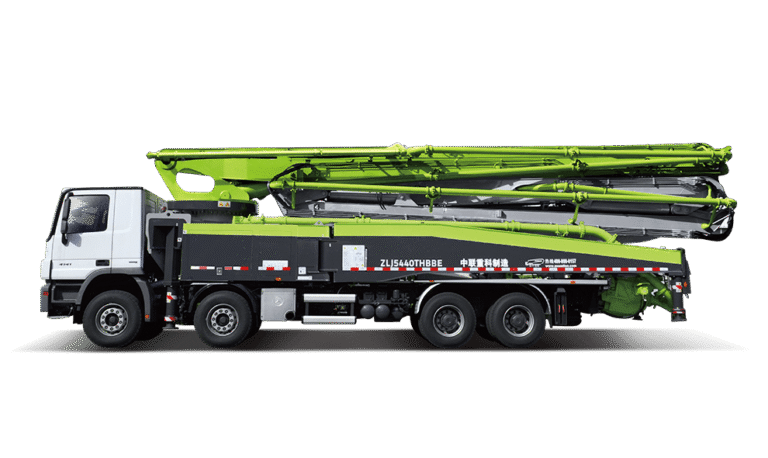

63X-7RZ（Four-axles）
Reach height 62.20m Horizontal reach ( gross/net ) 57.00m Reach depth 45.80m Unfolding height 15.83m Sections 7 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 180m³/h Max. pressure 113bar Delivery cylinder Φ260mm Stroke 2100mm
-

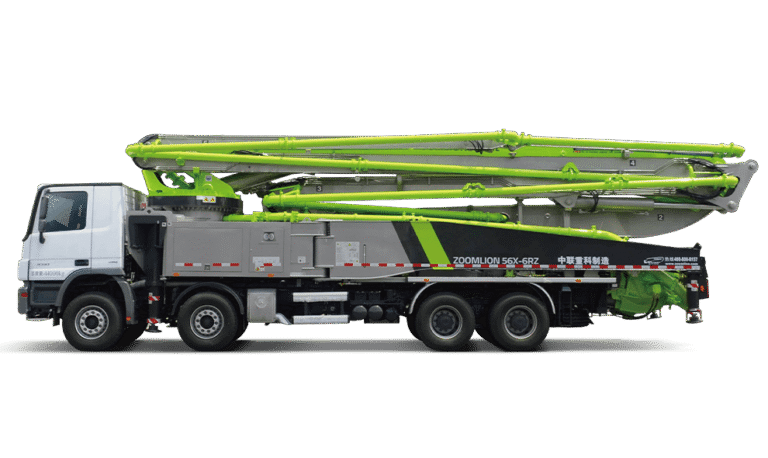

56X-6RZ（Four-axles）
Reach height 56.00m Horizontal reach ( gross/net ) 51.00/47.85m Reach depth 40.20m Unfolding height 15.80m Sections 6 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 180m³/h Max. pressure 105bar Delivery cylinder Φ260mm Stroke 2100mm
-

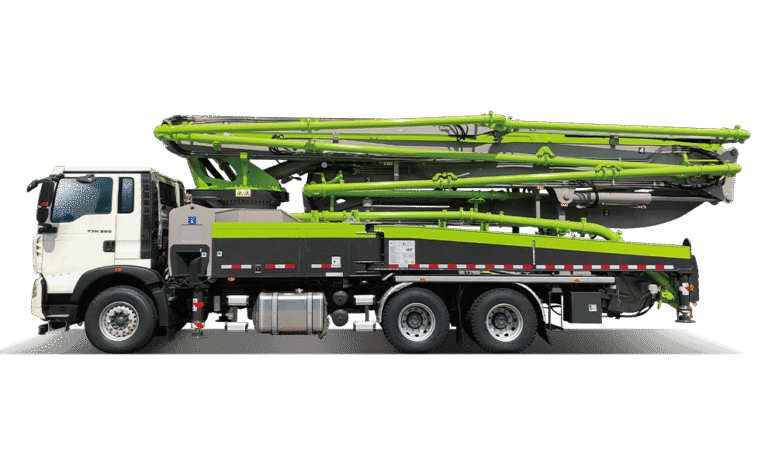

49X-6RZ（Three-axles）
Maximum vertical reach 48.6m Maximum horizontal reach 43.6m Maximum depth reach 34.6m Minimum unfolding height 12.9m Section numbers 6 Boom type RZ Pipeline diameter 125mm Maximum theorical output 180/120m3/h Maximum theorical pressure on concrete 83/120bar Concrete cylinders (diam. × stroke) 260mm x 2100mm Hydraulic circuit Open Chassis brand Multiple Choices
-

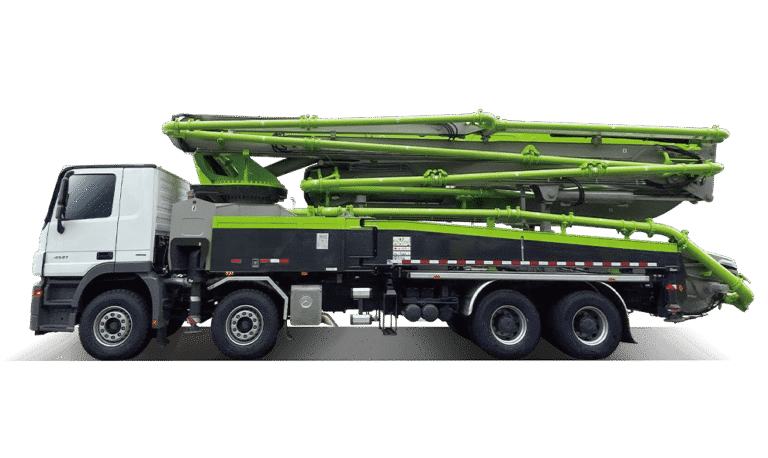

49X-6RZ（Four-axles）
Maximum vertical reach 48.6m Maximum horizontal reach 43.6m Maximum depth reach 34.6m Minimum unfolding height 12.9m Section numbers 6 Boom type RZ Pipeline diameter 125mm Maximum theorical output 180m3/h Maximum theorical pressure on concrete 113bar Concrete cylinders (diam. × stroke) 260mm x 2100mm Hydraulic circuit Closed Chassis brand Multiple Choices
-

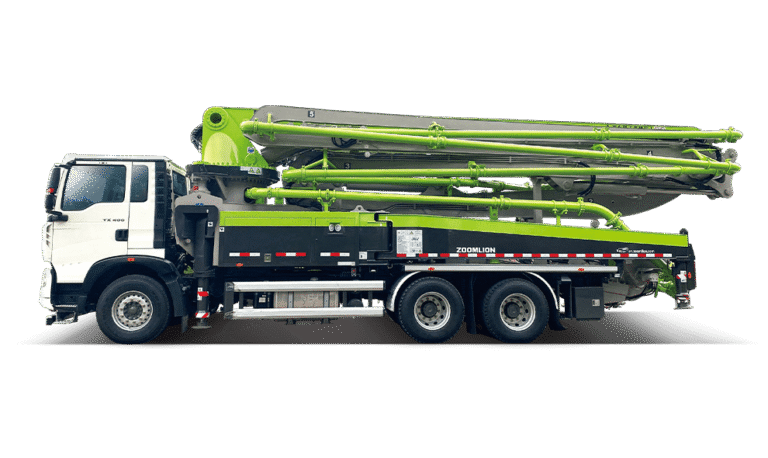

47X-5RZ（Three-axles）
Reach height 47.00m Horizontal reach ( gross/net ) 42.70/39.90m Reach depth 32.60m Unfolding height 9.70m Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 180/120m³/h Max. pressure 93/120bar Delivery cylinder Φ260mm Stroke 2100mm
