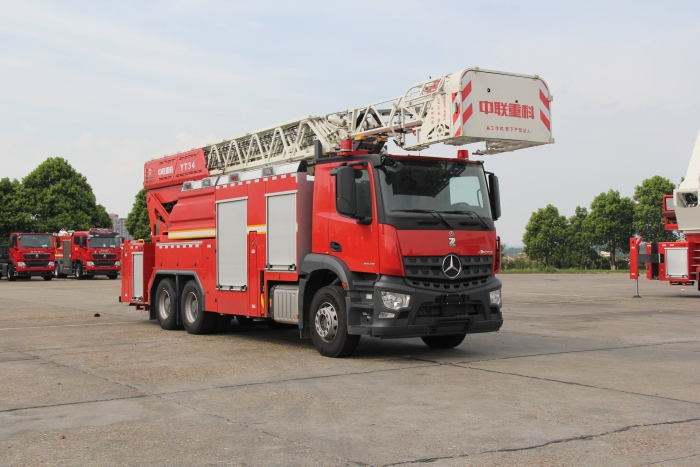

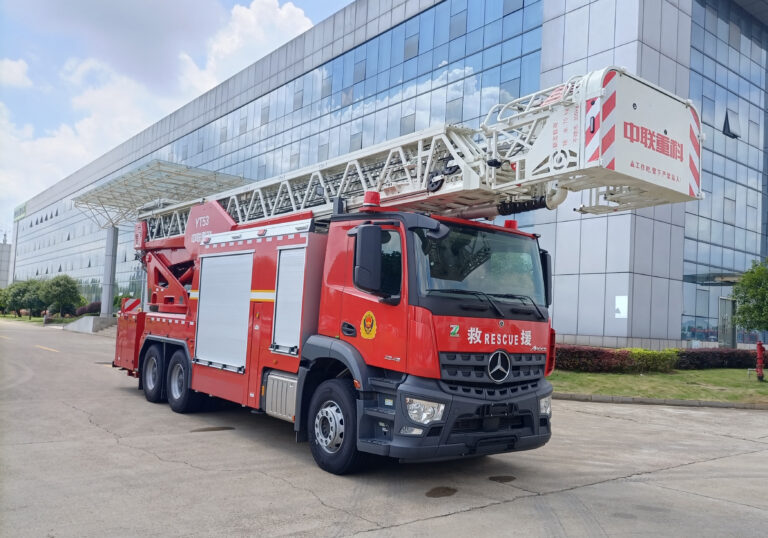

Aerial Ladder Firefighting Vehicle

Performance   Unit    Parameter   Maximum working height   m   34  Maximum working range   m   19 Boom length   m   3.5  Working bucket load   kg   300    Combination action time   s   55   Fire monitor flow rate   L/min   3000 Maximum extinguishing radius   m   84 …

Performance   Unit  Parameter   Chassis Model   /   Volvo FM460 64R B   Engine power   kW   346 Person capacity   people   2 Maximum speed   km/h   90 Dimensions (length x width x height)   mm   12960×2530×3995 Total Quality   kg   32450 Rated load of cradle   kg  …
