AGRICULTURAL MACHINERY

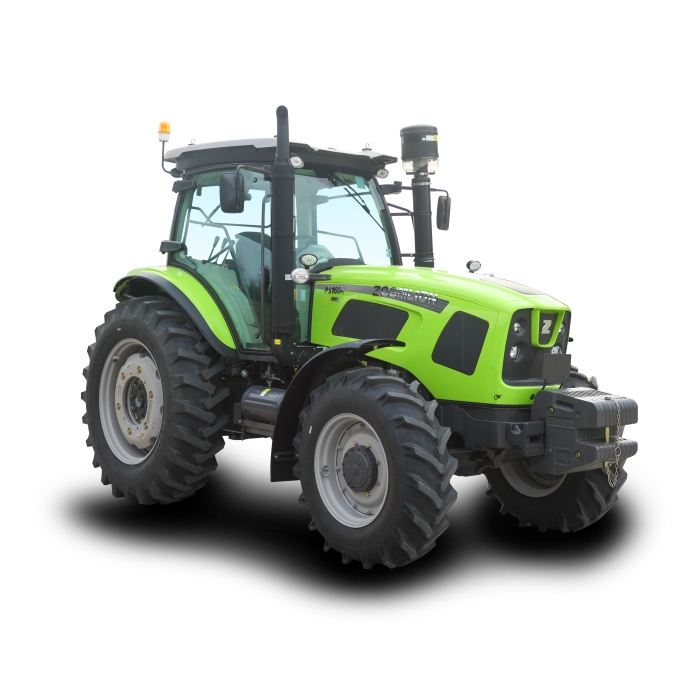

Model RS1304 RS1604 Parameter Unit Value/Specification Value/Specification Brand/Model / Yuchai YC6J130-S300 Yuchai YC6J160-S300 Engine type / 6-cylinder inline, turbocharged engine Torque reserve % 61% 47% Fuel tank capacity L 300 Transmission type / Synchronizer gear shifting Gear configuration / 24F+8R Speed range km/h 2.07-30.24 Min. turning radius m 5.6 Hydraulic flow rate L/min 80 Remote…

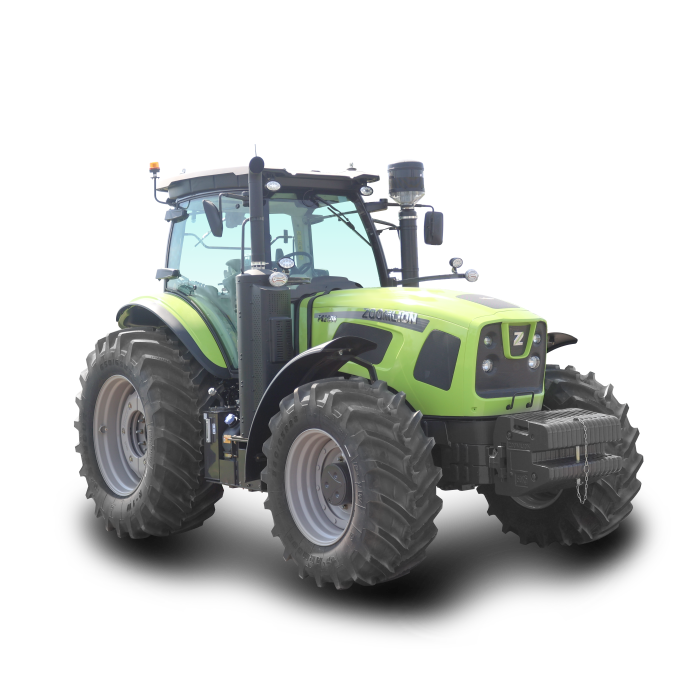

Model PG2004 Parameter Unit Value/Specification Brand/Model / YCA07220-S500 Engine type / 6-cylinder, high-pressure common rail, turbocharged intercooled engine Torque reserve % 35% Fuel tank L 375 Transmission type / Collar shift transmission with partial power shift Gear configuration / 48F+24R Speed range km/h 0.41-40 Min. turning radius m 7.1±0.3 Hydraulic flow rate L/min 160 Remote…

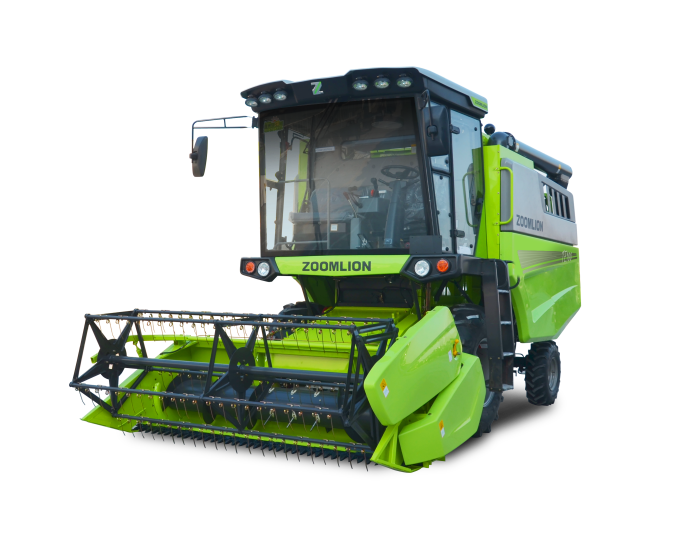

Product Series TE100 Throughput capacity kg/s 10 Overall dimensions (excluding header) (L × W × H) mm 6100×2900×3420 Operating weight (excluding header) kg 7300 Min. ground clearance mm 420 Model / Yuchai YCA05190-T300 Number of cylinders cylinders 4 Fuel tank capacity L 440 Structural design / Single axial rotor (combined threshing & separation) Cylinder (diameter…
Model Unit Value/Specification Dimensions (L × W × H) mm 5150×2500×2830 Weight kg 3300 Required tractor power kw 60 Structural type / Self-propelled, tracked type Track specification / 400×90×51 links Knotter type / D-type knotter Number of knotters pcs 2 Bale cross section (W × H) mm 480×360 Baling efficiency bales/day 1800-2200 Bale length mm…

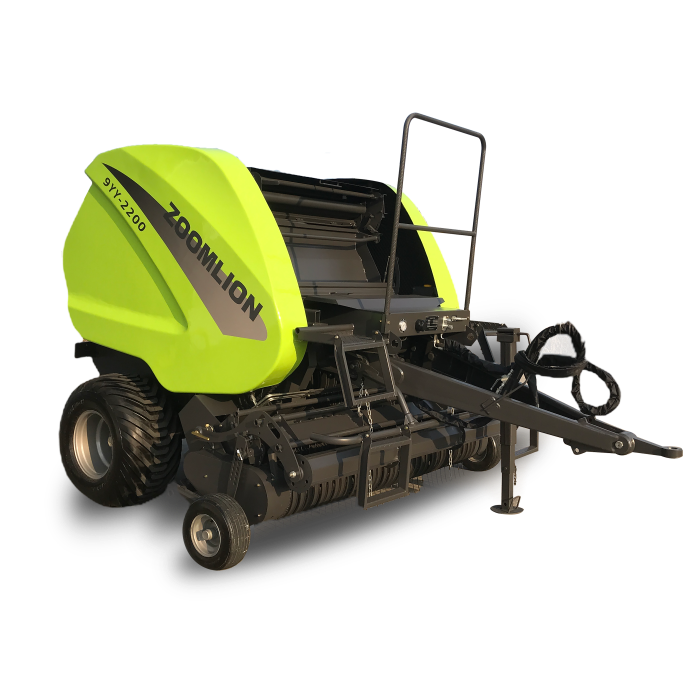

Model Unit Value/Specification Dimensions (L × W × H) mm 4280×3162×2560 Weight kg 4200 Required PTO speed r/min 540/760 Pickup width mm 2200 Pickup lift / Hydraulic lift Tine spacing mm 66 Number of tine bars rows 6 Number of tines / 102 Feeder type / 3-star double-paddle screw feeder Number of cylinders pcs 18…

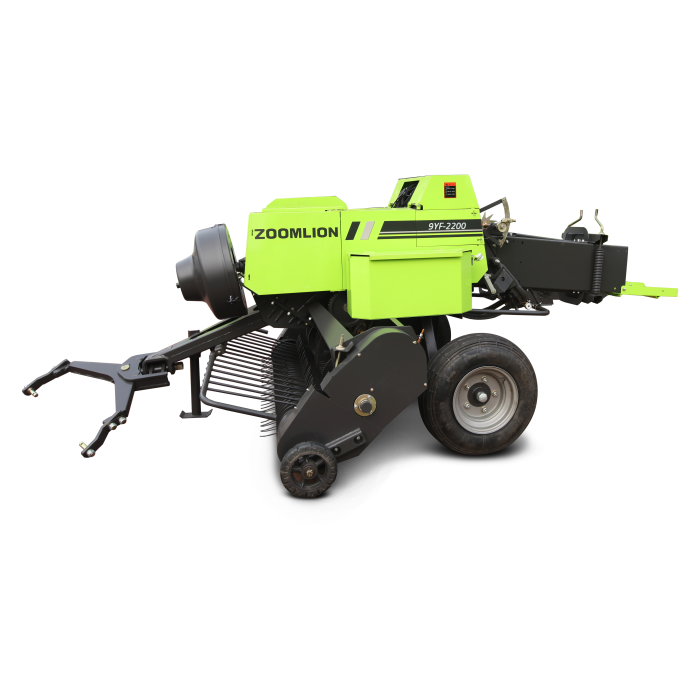

Model Unit Value/Specification Dimensions (L × W × H) mm 4800×2870×1750 Weight kg 1740 Required tractor power kw/hp 50~70/65-100 Required PTO speed r/min 540 Pickup width mm 2200 Pickup lift / Tractor hydraulic hitch lift Tine spacing mm 66 Number of tine bars rows 4 Number of tines / 64 Feeder type / 4-fork feeder…

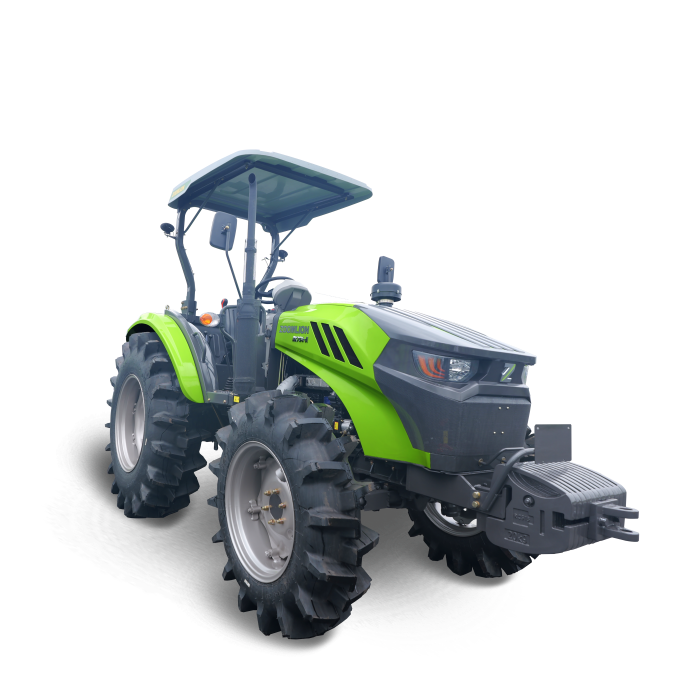

Model RK504-A Parameter Unit Value/Specification Brand/Model / Xinchai A498BT-159 Engine type / 4-cylinder, vertical, direct-injection, water-cooled engine Torque reserve % 25% Fuel tank capacity L 80 Transmission type / Synchronizer sleeve gear shifting Gear configuration / 12F+12R Speed range km/h 2.06~31.37 Drive configuration / Hydraulic flow rate L/min 29 Remote hydraulic valves (sets) set 2…

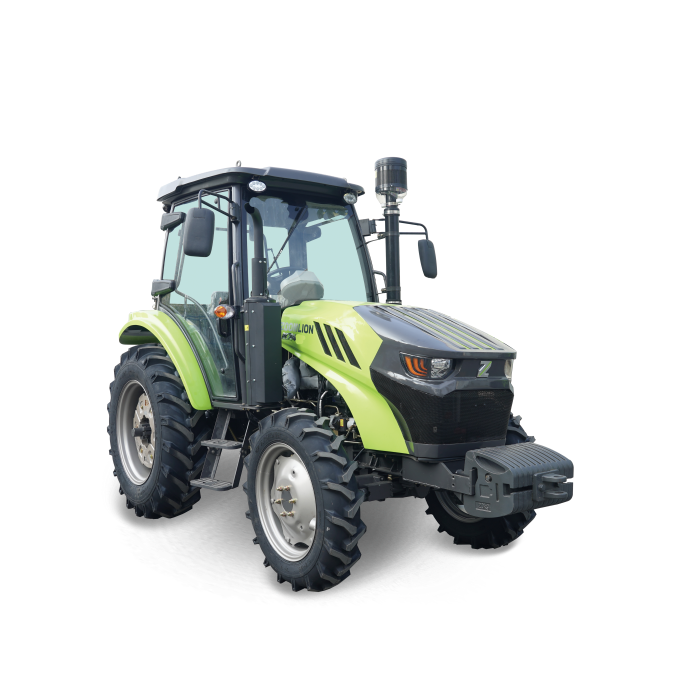

Model RK704-A Parameter Unit Value/Specification Brand/Model / Xinchai A4K43T70A Engine type / 4-cylinder, vertical, direct-injection, water-cooled engine Torque reserve % 20% Fuel tank capacity L 80 Transmission type / Synchronizer sleeve gear shifting Gear configuration / 12F+12R Speed range km/h 2.19~32.19 Drive configuration / Hydraulic flow rate L/min 29 Remote hydraulic valves (sets) set 2…

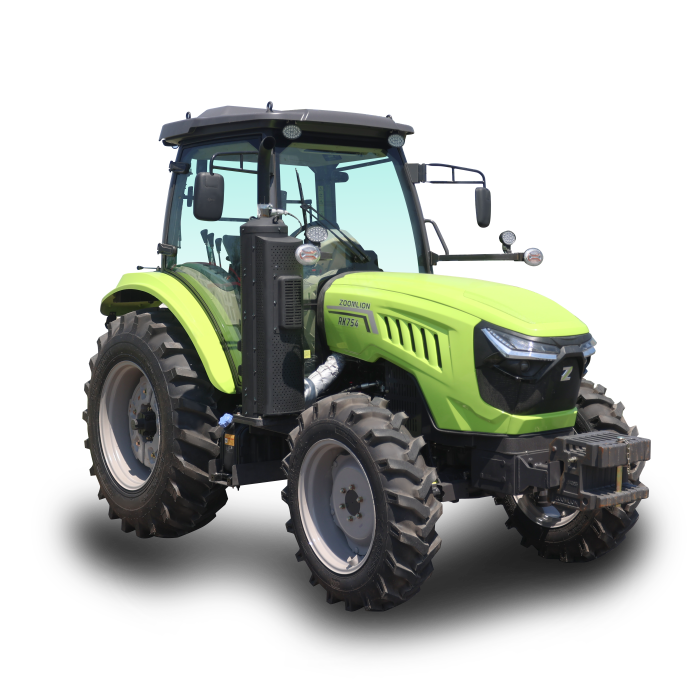

Model RK754-1 Parameter Unit Value/Specification Brand/Model / Yuchai YCF3675-S580 Engine type / 4-cylinder, vertical, direct-injection, water-cooled engine Torque reserve % 36.00% Fuel tank capacity L 110 Transmission type / Synchronizer shuttle shift (main transmission) Gear configuration / 12F+12R Speed range km/h 1.9~38.47 Drive configuration / 4×4 Hydraulic flow rate L/min 47 Remote hydraulic valves (sets)…

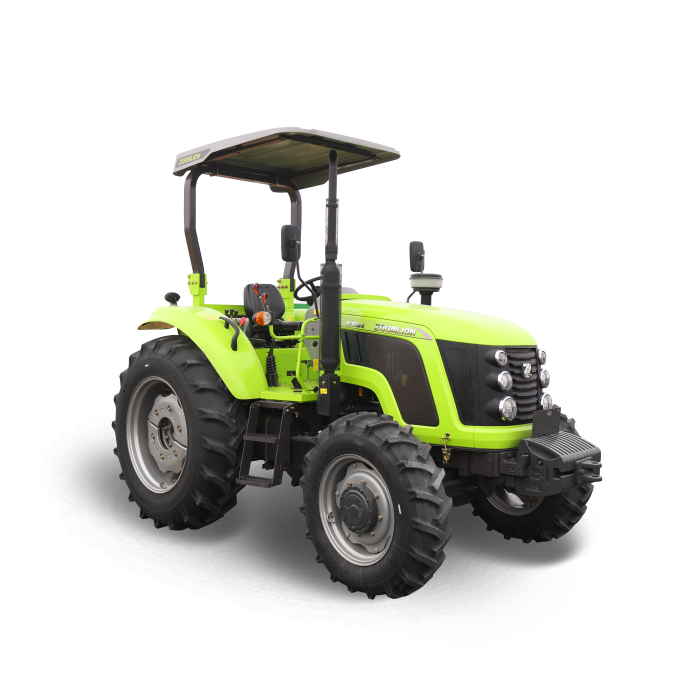

Model RC904 Parameter Unit Value/Specification Brand/Model / Luochai LR4M5-23 Engine type / 4-cylinder, vertical, inline, water-cooled, four-stroke engine Torque reserve % 20%~25% Fuel tank capacity L 150 Transmission type / Synchronizer sleeve gear shifting Gear configuration / 16F+8R Speed range km/h 33.69(km/h)/35.58(km/h) Min. turning radius m 5±0.3 Hydraulic flow rate L/min 50 Remote hydraulic valves…
