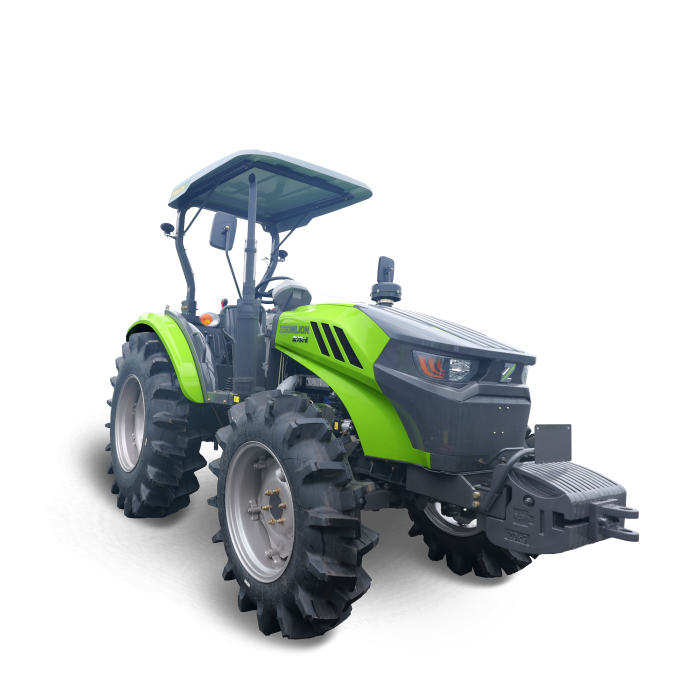

RK504
| Model | RK504-A |
|---|---|
| Parameter | Unit Value/Specification |
| Brand/Model | / Xinchai A498BT-159 |
| Engine type | / 4-cylinder, vertical, direct-injection, water-cooled engine |
| Torque reserve | % 25% |
| Fuel tank capacity | L 80 |
| Transmission type | / Synchronizer sleeve gear shifting |
| Gear configuration | / 12F+12R |
| Speed range | km/h 2.06~31.37 |
| Drive configuration | / |
| Hydraulic flow rate | L/min 29 |
| Remote hydraulic valves (sets) | set 2 |
| Hitch type and category | / Rear-mounted three-point hitch, category 1 |
| Hitch lift capacity max. 610 mm behind | kN 8.5 |
| PTO speed options | r/min 540/1000 |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | kg 2770 |
| L × W × H | mm 4083*1882*2850 |
| Wheel base | mm 2020 |
| Wheel track (front/rear) | mm 1380/1300 |
| Min. ground clearance | mm 330 |
| Tire (front/rear) | Standard configuration 8.3-20/12.4-28 |
