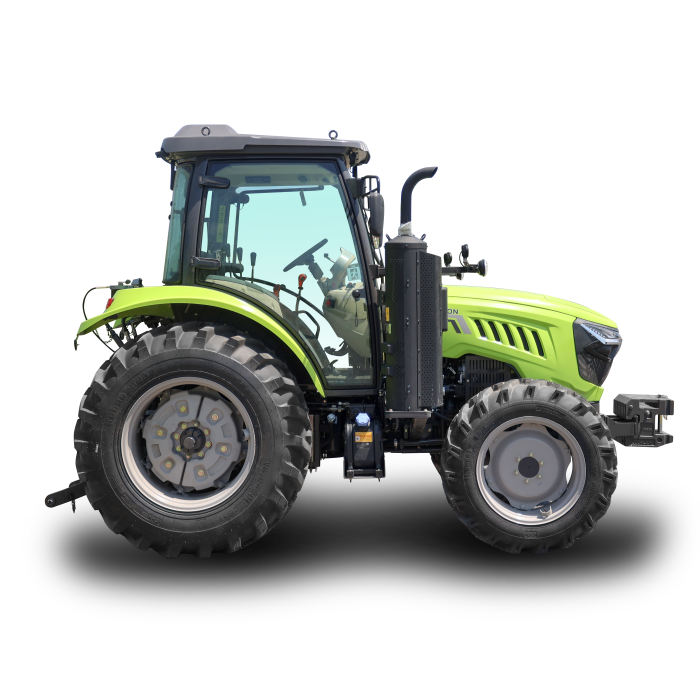

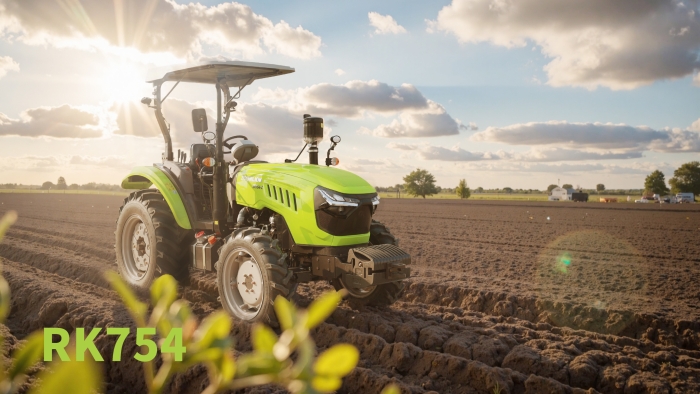

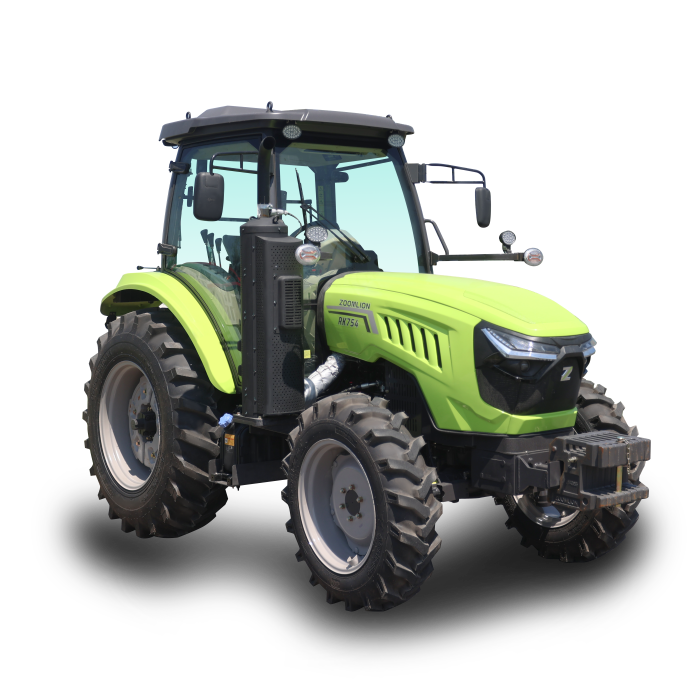

RK754
| Model | RK754-1 |
|---|---|
| Parameter | Unit Value/Specification |
| Brand/Model | / Yuchai YCF3675-S580 |
| Engine type | / 4-cylinder, vertical, direct-injection, water-cooled engine |
| Torque reserve | % 36.00% |
| Fuel tank capacity | L 110 |
| Transmission type | / Synchronizer shuttle shift (main transmission) |
| Gear configuration | / 12F+12R |
| Speed range | km/h 1.9~38.47 |
| Drive configuration | / 4×4 |
| Hydraulic flow rate | L/min 47 |
| Remote hydraulic valves (sets) | set 3 |
| Hitch type and category | / Rear-mounted three-point hitch, category 2 |
| Hitch lift capacity max. 610 mm behind | kN 20.3 |
| PTO speed options | r/min 540/540E |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | kg 3715 |
| L × W × H | mm 4256×1913×2810 |
| Wheel base | mm 2140 |
| Wheel track (front/rear) | mm 1480/1480 |
| Min. ground clearance | mm 392 |
| Tire (front/rear) | Standard configuration 280/85R24 (front) + 420/R85R30 (rear) |
