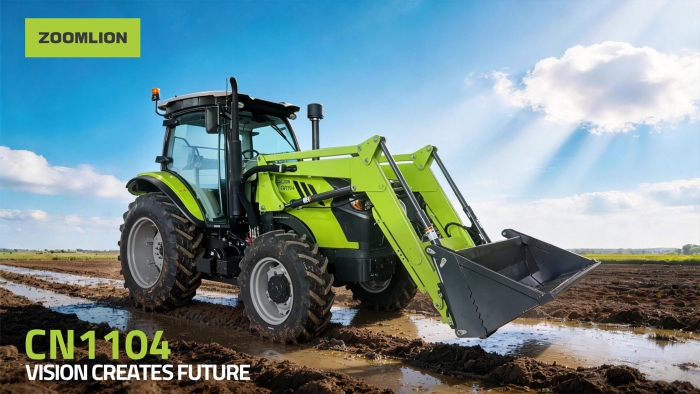

CN1104
| Model | CN1104 |
|---|---|
| Parameter | Unit Value/Specification |
| Brand/Model | / SC4H115.9G5E |
| Engine type | / 4-cylinder, electronically controlled common rail, turbocharged, intercooled engine |
| Torque reserve | % 57 |
| Fuel tank capacity | L 200 |
| Transmission type | / Synchronizer shuttle shift (main transmission) |
| Gear configuration | / 12F+12R |
| Speed range | km/h 3.23~39.9 (forward); 2.92~36.2 (reverse) |
| Min. turning radius | m 4.6±0.5 |
| Hydraulic flow rate | L/min 60 |
| Remote hydraulic valves (sets) | set 3 |
| Hitch type and category | / Rear-mounted three-point hitch, category 2 |
| Hitch lift capacity max. 610 mm behind | kN 30 |
| PTO speed options | r/min 540/540E |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | kg 6680 |
| L × W × H | mm 4830x2300x2970 |
| Wheel base | mm 2380 |
| Wheel track (front/rear) | mm 1725/1750 |
| Min. ground clearance | mm 400 |
| Tires (front/rear) | Standard configuration Standard configuration: 340/85R24 (front) + 420/85R34 (rear) |
