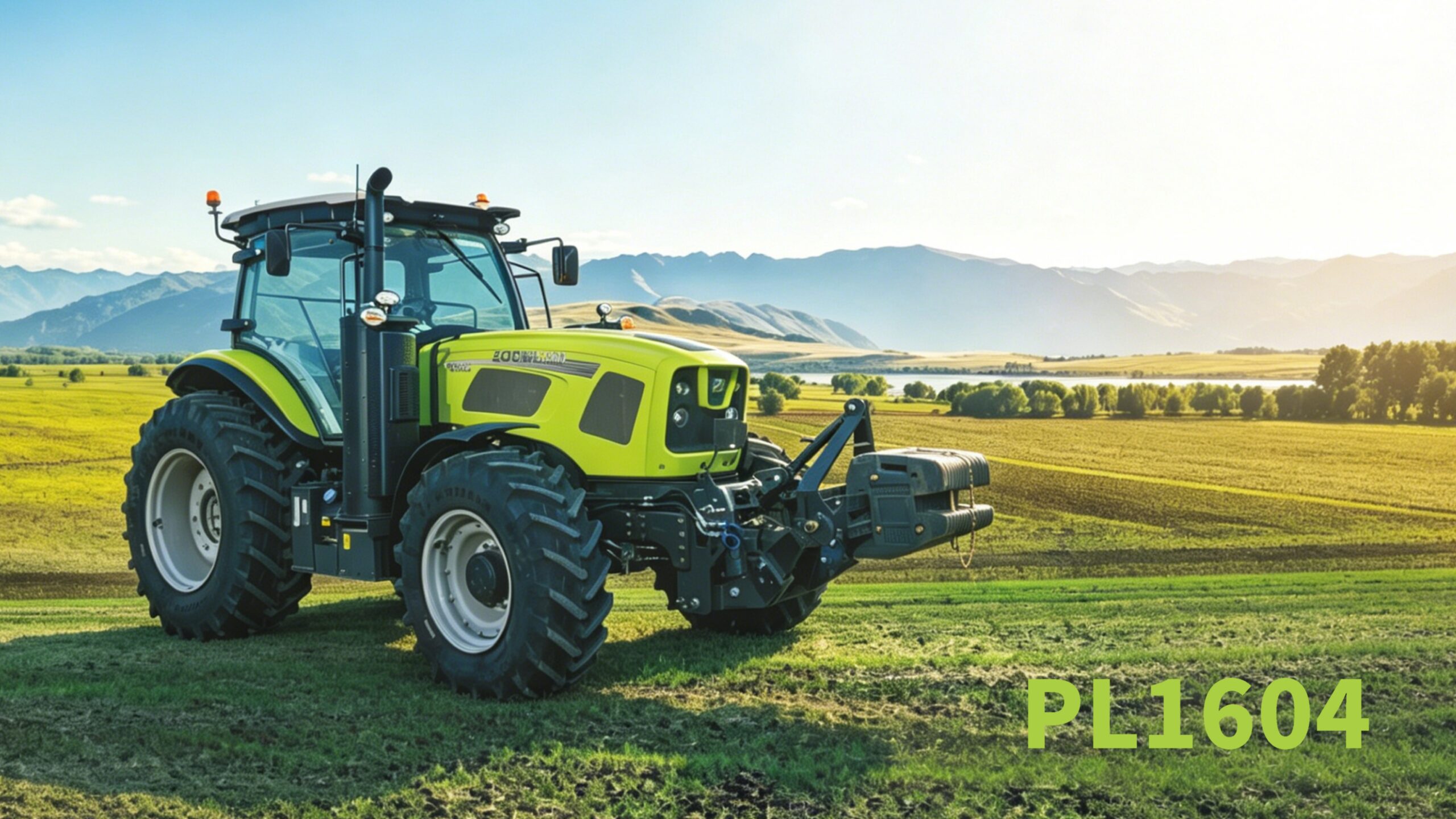

PL1604
| Model | PL1604 |
|---|---|
| Parameter | Unit Value/Specification |
| Brand/Model | / YCA07165-E500 |
| Engine type | / Vertical, direct injection, water-cooled, four-stroke |
| Torque reserve | % 40.00% |
| Fuel tank capacity | L 375 |
| Transmission type | / Range power shift |
| Gear configuration | / 48F+24R |
| Speed range | km/h 0.36~40 (forward); 0.4~40 (reverse) |
| Min. turning radius | m 6.3+0.5 |
| Hydraulic flow rate | L/min 114 |
| Remote hydraulic valves (sets) | set 4 |
| Hitch type and category | / Rear-mounted three-point hitch, category 3 |
| Hitch lift capacity max. 610 mm behind | kN 57.5 |
| PTO speed options | r/min 540/1000 |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | kg 8580 |
| L × W × H | mm 6308x2290x3070 (w/ front loader) |
| Wheel base | mm 2860 |
| Wheel track (front/rear) | mm 1900/1860 |
| Min. ground clearance | mm 355 |
| Front wheel – rear wheel (radial tires) | Standard configuration 420/85R28 (front); 520/85R38 (rear) |
