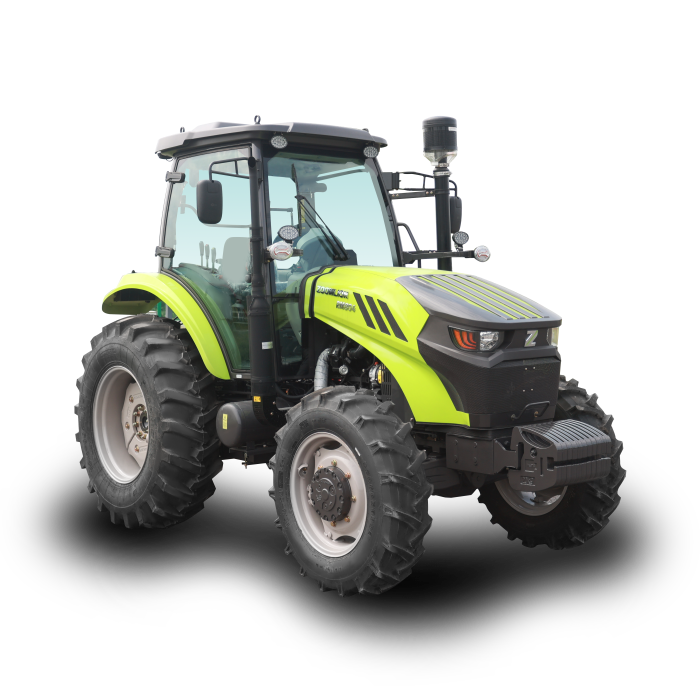

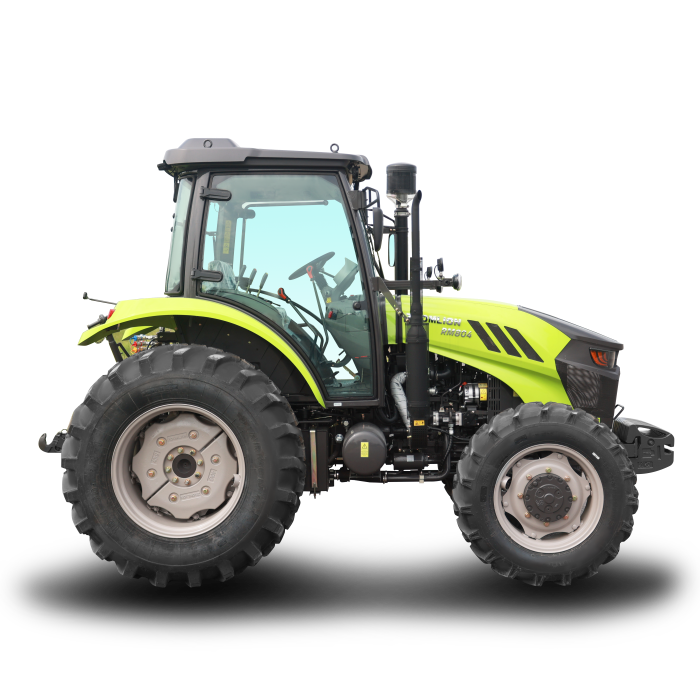

RM804
| Model | RM804 |
|---|---|
| Parameter | Unit Value/Specification |
| Brand/Model | / YCF3685-S500 |
| Engine type | / 4-cylinder, high-pressure common rail, turbocharged, intercooled engine |
| Torque reserve | % 26.30% |
| Fuel tank capacity | L 130 |
| Transmission type | / Synchronizer shuttle shift (main transmission) |
| Gear configuration | / 12F+12R |
| Speed range | km/h 2~39.7 |
| Min. turning radius | m 4.5±0.5 |
| Hydraulic flow rate | L/min 51 |
| Remote hydraulic valves | set 3 |
| Drawbar type | / Swinging drawbar with quick-attach hitch |
| Hitch depth control | / Force and position adjustment |
| Hitch type and category | / Rear-mounted three-point hitch, category 2 |
| Hitch lift capacity max. 610 mm behind | kN 30 |
| PTO speed options | r/min 540/540E |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | kg 4960 |
| L × W × H | mm 4600x2130x2950 |
| Wheel base | mm 2245 |
| Wheel track (front/rear) | mm 1730/1688 |
| Min. ground clearance | mm 400 |
| Tire (front/rear) | / Standard configuration: 340/85R24 (front) + 420/85R34 (rear) |
