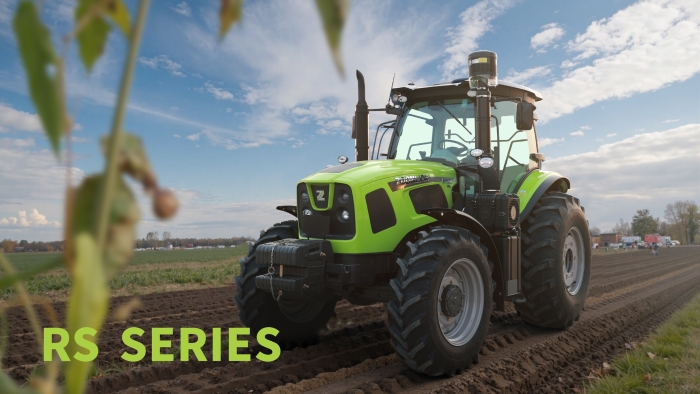

RS1304/1604
| Model | RS1304 RS1604 |
|---|---|
| Parameter | Unit Value/Specification Value/Specification |
| Brand/Model | / Yuchai YC6J130-S300 Yuchai YC6J160-S300 |
| Engine type | / 6-cylinder inline, turbocharged engine |
| Torque reserve | % 61% 47% |
| Fuel tank capacity | L 300 |
| Transmission type | / Synchronizer gear shifting |
| Gear configuration | / 24F+8R |
| Speed range | km/h 2.07-30.24 |
| Min. turning radius | m 5.6 |
| Hydraulic flow rate | L/min 80 |
| Remote hydraulic valves | set 3 |
| Hitch type and category | / Rear-mounted three-point hitch, category 3 |
| Hitch lift capacity max. 610 mm behind | kN 40 |
| PTO speed options | r/min 540/1000 |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | kg 7030 |
| L × W × H | mm 5200×2435×3250 |
| Wheel base | mm 2640 |
| Wheel track (front/rear) | mm 1,800, 1,900, 2,000 (front); 1,800~2,100 (rear) |
| Min. ground clearance | mm 450 |
| Tires (front/rear) | / 380/85R26 (front); 460/85R38 (rear) |
| Wheelbase | 2640mm |
| Minimum ground clearance | 450mm |
| Rated power | 95.6/117.6kW |
| Number of gears of the gearbox | 16F+8R Meshing sleeve gearshift |
| Maximum lifting capacity | ≥35KN |
| Traction force | 51KN |
| PTO output power | 85/105kW |
| Power output speed | 540/1000 |
