AGRICULTURAL MACHINERY
Model PV3204 (Russia) PV3204 (Brazil) Parameter Unit Value/Specification Value/Specification Brand/Model / YCK09320-S300 YCK09320-M300 Engine type / 6-cylinder inline, turbocharged, high-pressure common rail engine Torque reserve % 45% Fuel tank capacity L 630 Transmission type / Partial power shift Gear configuration / 48F+24R Speed range km/h 0.33~36.37 Min. turning radius m 7.3±0.3 Hydraulic flow rate L/min…

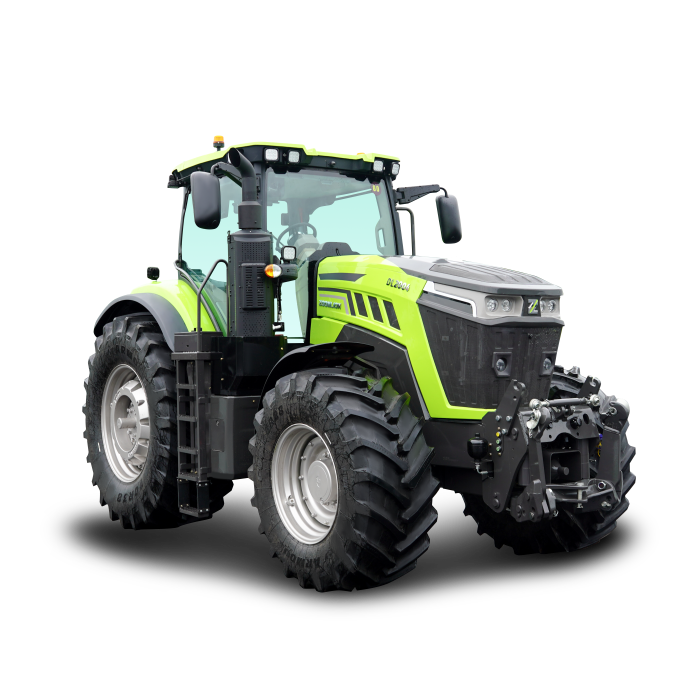

Model DL2004 (Euro Stage V) Parameter Unit Value/Specification Model / YCA07200-S500 Engine type / 6-cylinder, high-pressure common rail, turbocharged intercooled engine Fuel tank L 322 Rated motor output kW 120 Rated voltage V 600 High-voltage battery rated capacity kW·h 6.23 Transmission type / ECVT Speed range km/h 0-40 Drive configuration / Dual-motor coupled drive (with…

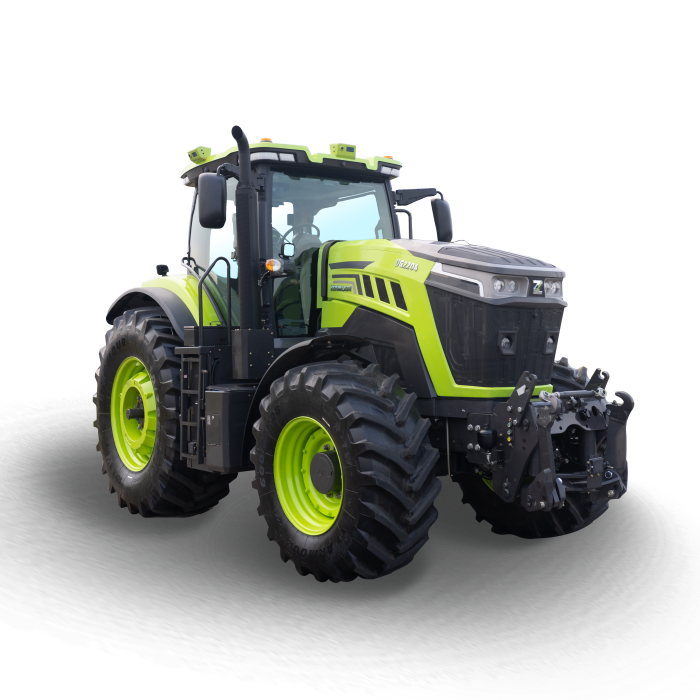

Model DG2204 DG2204 DG2204 Parameter Unit Value/Specification Value/Specification Value/Specification Model / YCA07260-S500 (Euro V) YCA07260-S300 (Euro IIIA) YCA07260-M300 (Brazil III) Engine type / 6-cylinder, high-pressure common rail, turbocharged intercooled engine 6-cylinder, high-pressure common rail, turbocharged intercooled engine 6-cylinder, high-pressure common rail, turbocharged intercooled engine Fuel tank L 320 320 320 Rated motor output kW 175…

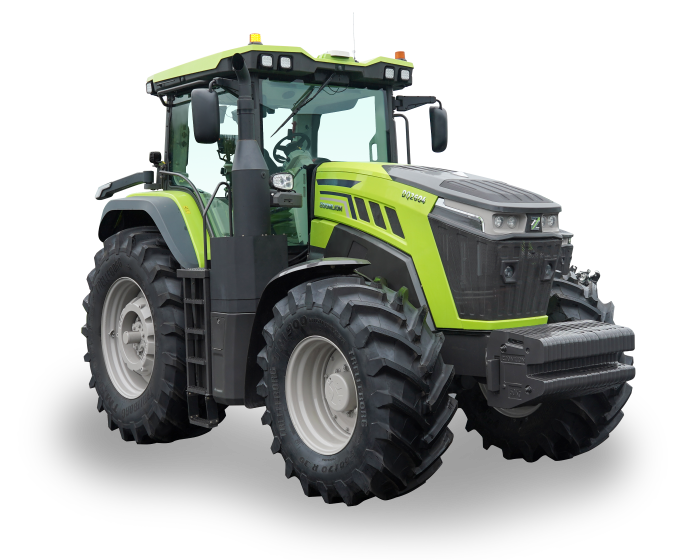

Model DQ2604 DQ2754 Parameter Unit Value/Specification Value/Specification Model / YCA08 YCA08 Engine type / 6-cylinder, high-pressure common rail, turbocharged intercooled engine 6-cylinder, high-pressure common rail, turbocharged intercooled engine Fuel tank L 510 510 Rated motor output kW 191.5 202.5 Rated voltage V 600 600 High-voltage battery rated capacity kW·h 11.55 11.55 Transmission type / Range…

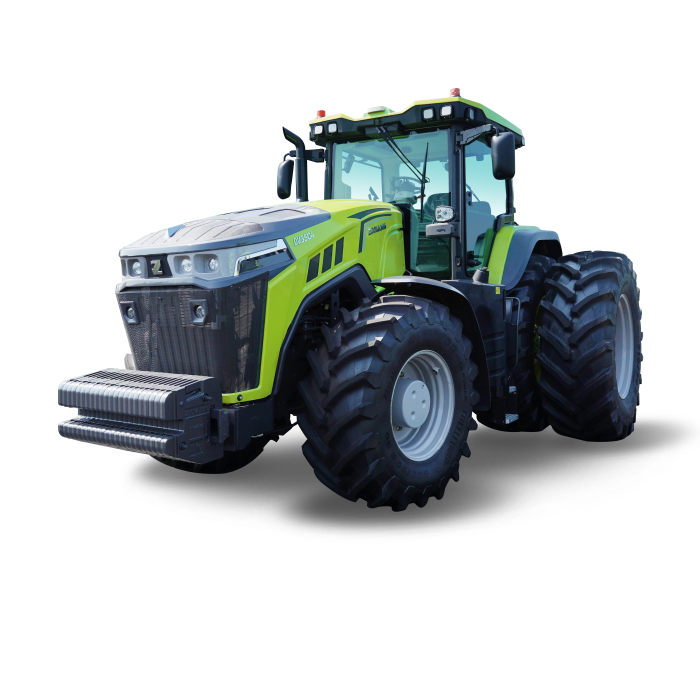

Model DV3504 Parameter Unit Value/Specification Model / YCK09 400-S300 Engine type / 6-cylinder, high-pressure common rail, turbocharged intercooled engine Fuel tank L 650 Rated motor output kW 257.5 Rated voltage V 600 High-voltage battery rated capacity kW·h 11.55 Transmission type / Range infinitely variable transmission with electronic gear shifting Speed range km/h 0-40 Drive configuration…

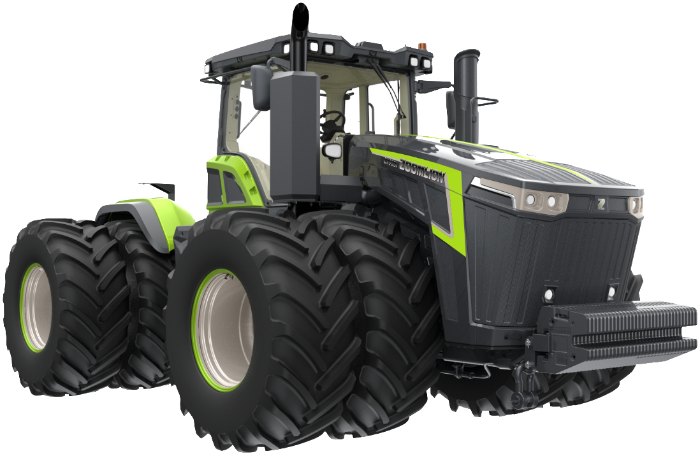

Model DX7004 Parameter Unit Value/Specification Model / QSM15 77C Engine type / 6-cylinder, vertical, inline, water-cooled, four-stroke, turbocharged intercooled engine Fuel tank L 1508 Rated motor output kW 283 (working motor) Rated voltage V 592 (working motor) High-voltage battery rated capacity kW·h 24.2 Transmission type / Range infinitely variable transmission with electronic gear shifting Speed…
Specification Unit Design Value Model ZL88-SQ ZL88-EQ L × W × H mm 5070×2385×3070 5070×3040×2890 Operating weight kg 3640 3450 Model / 4C6-88M22 4C6-88M22 Type / Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Power/Horsepower kW/PS 65{88} 65{88} Fuel tank capacity L 150 150 Track gauge mm 1150 1150 Width × Pitch ×…
Specification Unit Design Value Version Standard Model ZL125-CX ZL125-SX ZL125-CU ZL125-SU L × W × H mm 5470×2870×2850 5420×2870×3110 5420×2870×3110 5420×2870×3110 Operating weight kg 4450 4330 4450 4330 Model / 4D35ZT-510 4D35ZT-510 YC4DK130L-T20-DKM2S0 YC4DK130L-T20-DKM2S0 Type / Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke…
Specification Unit Design Value Version South America Version Model ZL145-CU ZL145-CU L × W × H mm 6180×2850×2870 6180×2850×2870 Operating weight kg 4510 4510 Model / YC4DK140-T302-DKD9S0 YC4DK140-T302-DKD9S0 Type / Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Power/Horsepower kW/PS 103{140} 103{140} Fuel tank capacity L 210 210 Track gauge mm 1250 1250…
Product Series H7-4500 Specifications Value/Specification Throughput capacity kg/s 18 Overall dimensions (without header) (L × W × H) mm 10790×3790×3950 (without header) Operating weight (excluding header) kg 18950 (unloaded) Min. ground clearance mm 466 Model / YC-K11480 Number of cylinders cylinders 6 Fuel tank capacity L 1000 Structural design / 3-stage tangential separation + twin…
