AGRICULTURAL MACHINERY

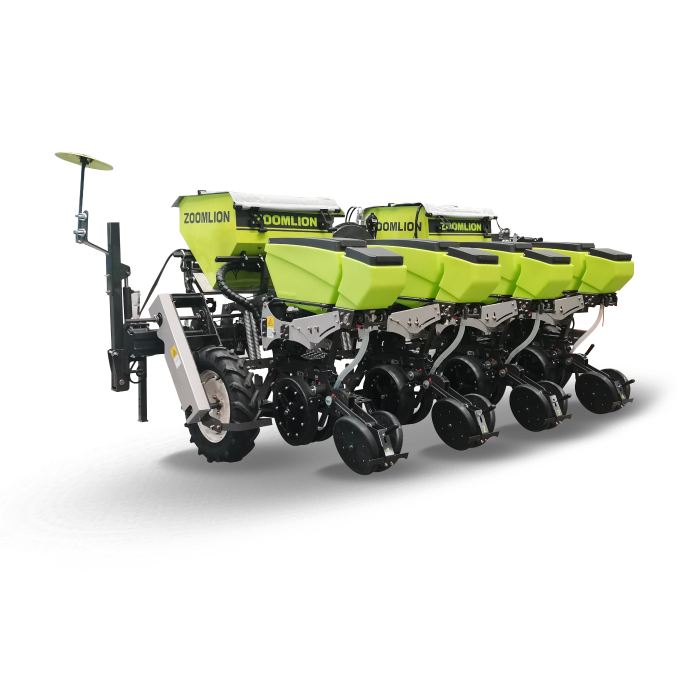

Model 2BMXMF-4A 2BMXMF-6A 2BMXMF-8 Overall dimensions/mm (L × W × H) 1940×3200×1910 1940×4500×1910 1940×5900×1910 Number of rows 4 6 8 Required tractor power/HP 110+ 130+ 160+ Required PTO speed/r/min 540 540 540 Operating weight/kg 1222 1910 2168 Hitch category Category 2 Category 2 Category 3 Row spacing/mm 450-800 450-800 450-800 Working width/mm 1800-3200 2700-4500 3600-5900…

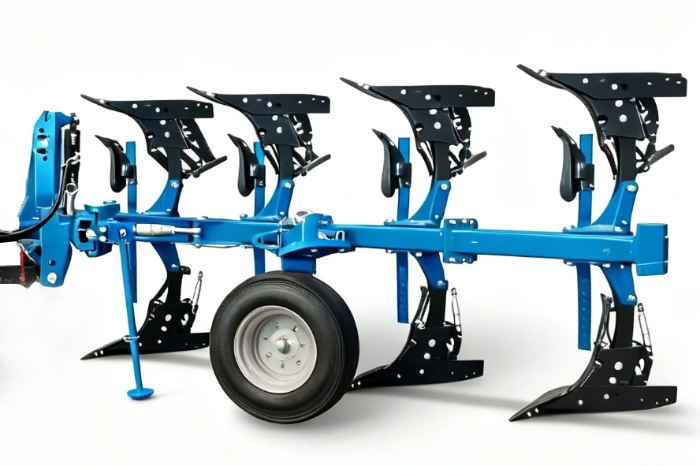

Model 1LF-Q450T 1LF-Q550T Overall dimensions (L × W × H)/mm 4410 × 2416 × 1760 (Standard version)* 5168×3045×1798 (Standard version)* Operating weight/kg 1576* 1826* Required tractor power/HP 160-220 200-260 Main frame structure In-furrow/4 furrows (3+1) In-furrow/4 furrows (4+1) Hitch category Category 2, Category 3, Category 3N Category 2, Category 3, Category 3N Beam size/mm 120×120×10…
Model 1LF-550T 1LF-560T 1LF-650T 1LF-750/850/950T 1LF-1050/1150/1250/1350T Overall dimensions (L × W × H)/mm 5370 × 3108 × 1860 (Standard version)* 6055 × 3485 × 1960 (Standard version)* 6415 × 3176 × 1860 (Standard version)* 11760 × 5900 × 1780 (Standard version)* 17085 × 7620 × 2480 (Standard version)* Operating weight/kg 2230* 2360* 2630* 5860* 8960*…

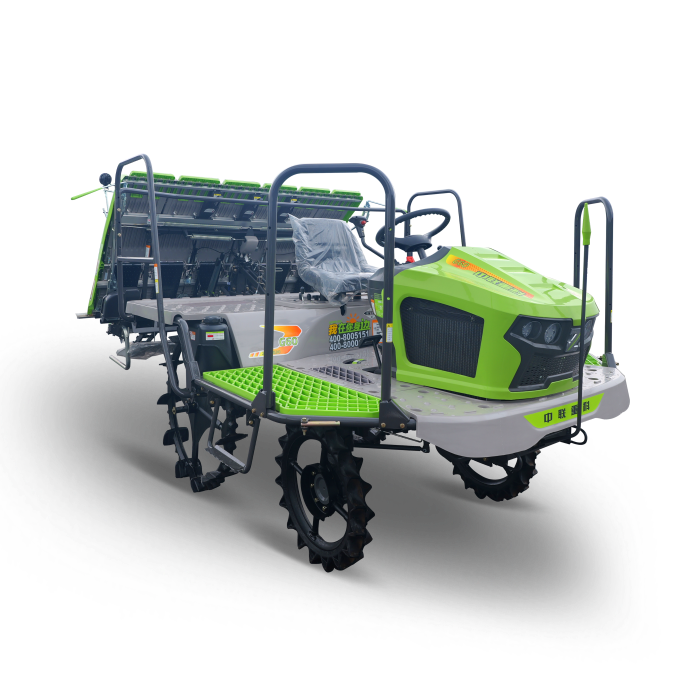

Product Name G630 G825 G830 L × W × H (transport) mm 3340×2140×2600 3340×2230×2600 3340×2680×2600 L × W × H (operating) mm 3340×2220×2600 3340×2480×2600 3340×2820×2600 Min. ground clearance mm 500 Engine Brand / Yanmar (Japan) Type/Rated power/Rated speed kW{PS}r/ min Water-cooled, 3-cylinder, four-stroke diesel engine; Max. 17.8{24.2}/3600 Number of working rows rows 6 8 6…
Specification Unit Design Value Version Standard India Non-standard Model ZL105-EU ZL105-SU ZL105-SU L × W × H mm 5250×3060×3090 5250×2700×3090 5250×2570×3090 Operating weight kg 3750 (with ballast) 3950 3950 (with ballast) Model / YC4FA110L YC4FA110L YC4FA110L Type / Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Power/Horsepower kW/PS…
Model PL2304 Parameter Unit Value/Specification Brand/Model / Weichai WP7 Engine type / Inline, direct-injection, water-cooled, four-stroke, turbocharged engine Torque reserve % 27 Fuel tank capacity L 400 Transmission type / Range power shift Gear configuration / 40F+40R Speed range km/h 0.4-40 Min. turning radius m 6.8 Hydraulic flow rate L/min 160 Remote hydraulic valves (sets)…
