CONCRETE MACHINERY
Reach height 42.30m Horizontal reach ( gross/net ) 37.65/34.85m Reach depth 29.68m Unfolding height 9.79 Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 170m³/h Max. pressure 88bar Delivery cylinder Φ260mm Stroke 2100mm
Reach height 39.50m Horizontal reach ( gross/net ) 35.15/31.50m Reach depth 23.15m Unfolding height 8.13m Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 160/100m³/h Max. pressure 70/100bar Delivery cylinder Φ230 Stroke 2100mm
Maximum vertical reach 37.1m Maximum horizontal reach 32.8m Maximum depth reach 25.6m Minimum unfolding height 8m Section numbers 5 Boom type RZ Pipeline diameter 125mm Maximum theorical output 100/60m3/h Maximum theorical pressure on concrete 80/150bar Concrete cylinders (diam. × stroke) 230mm x 1650mm Hydraulic circuit Open Chassis brand Multiple Choices

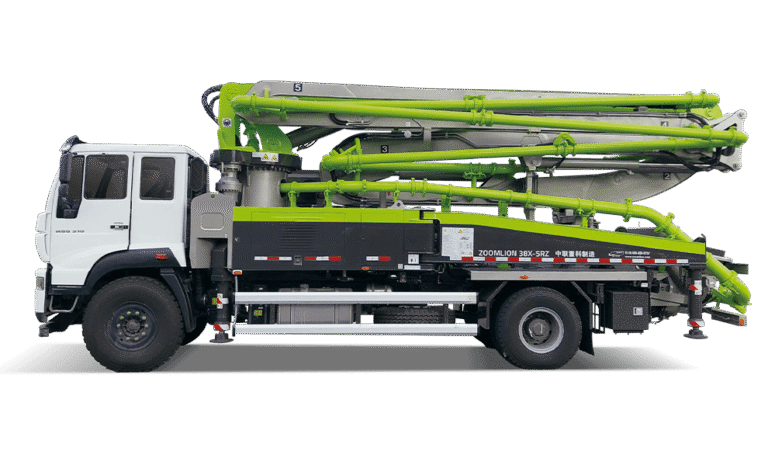

Reach height 37.10m Horizontal reach ( gross/net ) 32.36/29.49m Reach depth 25.20m Unfolding height 7.90m Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 170m³/h Max. pressure 88bar Delivery cylinder Φ260mm Stroke 2100mm
Reach height 35.50m Horizontal reach ( gross/net ) 31.15/28.46m Reach depth 23.32m Unfolding height 8.52m Sections 5 Folding system Z End hose length 3m Delivery line DN125mm Max. output 160/100m³/h Max. pressure 70/110bar Delivery cylinder Φ230mm Stroke 2100mm
Reach height 31.40m Horizontal reach ( gross/net ) 27.40m / 24.40m Reach depth 19.10m Unfolding height 7.36m Sections 4 Folding system Z End hose length 3.00m Delivery line DN 125mm Max. output 120m³/h Max. pressure 66bar Delivery cylinder Φ230mm Stroke 1650mm
Reach height 23.20m Horizontal reach ( gross/net ) 19.70m/17.00m Reach depth 13.80m Unfolding height 4.76m Sections 4 Folding system Z End hose length 3m Delivery line DN125mm Max. output 100/60m³/h Max. pressure 60/100bar Delivery cylinder Φ230mm Stroke 1650mm

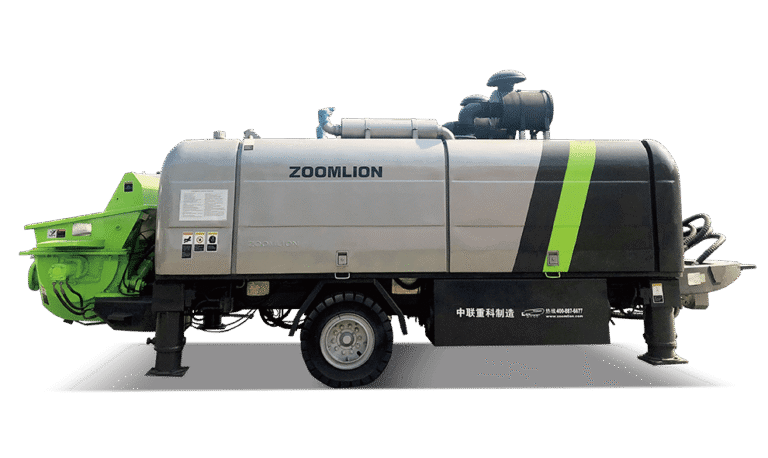

Maximum theorical output 112/73m3/h Maximum theorical pressure on concrete 160/260bar Strokes/minute 26.5/16.6Min -1 Concrete cylinder（diameter×stroke） Φ200mm×2100mm Hopper capacity 800L Filling height 1410mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Open Power 2×186kW Length×width×height 7700mm×2430mm×2800mm Weight 13000kg

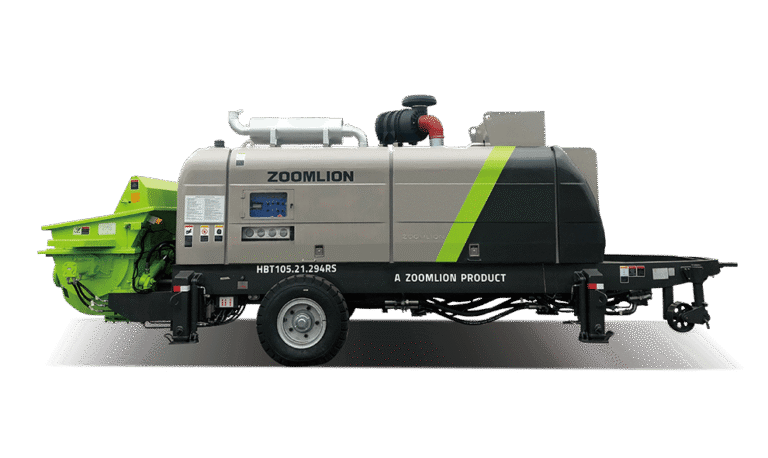

Maximum theorical output 101/64m3/h Maximum theorical pressure on concrete 130/210bar Strokes/minute 25/16Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 800L Filling height 1400mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Closed Power 294kW Length×width×height 7650mmx2250mmx2900mm Weight 10000kg

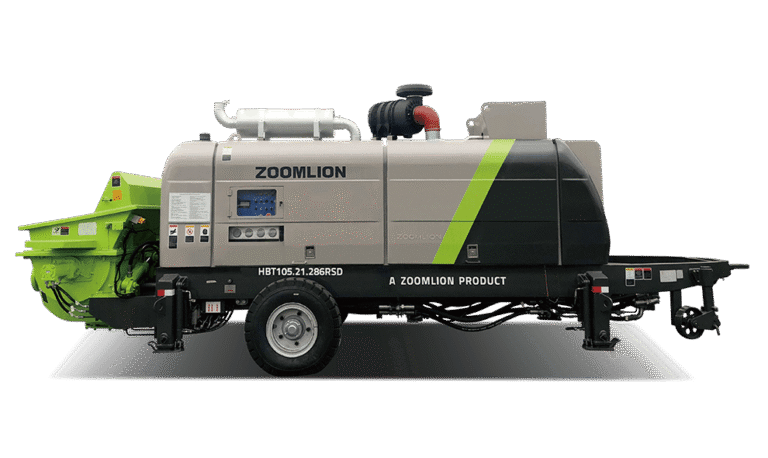

Maximum theorical output 105/65m3/h Maximum theorical pressure on concrete 130/210bar Strokes/minute 26/16Min -1 Concrete cylinder（diameter×stroke） Φ200mm×1800mm Hopper capacity 800L Filling height 1400mm Maximum aggregate diameter 50/Φ150mm Inside diameter of delivering pipe 40/Φ125mm Inside diameter of pipe Φ125/Φ150mm Hydraulic system type Closed Power 286/273kW Length×width×height 7200mmx2250mmx2940mm Weight 9700kg
