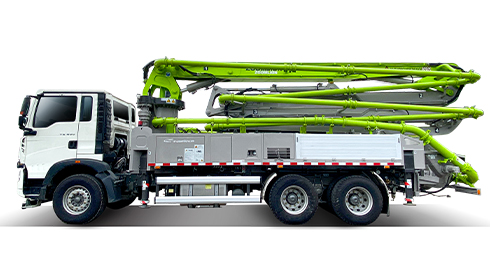

32X-4Z

Reach height 23.20m Horizontal reach ( gross/net ) 19.70m/17.00m Reach depth 13.80m Unfolding height 4.76m Sections 4 Folding system Z End hose length 3m Delivery line DN125mm Max. output 100/60m³/h Max. pressure 60/100bar Delivery cylinder Φ230mm Stroke 1650mm

Maximum vertical reach 48.6m Maximum horizontal reach 43.6m Maximum depth reach 34.6m Minimum unfolding height 12.9m Section numbers 6 Boom type RZ Pipeline diameter 125mm Maximum theorical output 180m3/h Maximum theorical pressure on concrete 113bar Concrete cylinders (diam. × stroke) 260mm x 2100mm Hydraulic circuit Closed Chassis brand Multiple Choices

Maximum vertical reach 37.1m Maximum horizontal reach 32.8m Maximum depth reach 25.6m Minimum unfolding height 8m Section numbers 5 Boom type RZ Pipeline diameter 125mm Maximum theorical output 100/60m3/h Maximum theorical pressure on concrete 80/150bar Concrete cylinders (diam. × stroke) 230mm x 1650mm Hydraulic circuit Open Chassis brand Multiple Choices

Reach height 42.30m Horizontal reach ( gross/net ) 37.65/34.85m Reach depth 29.68m Unfolding height 9.79 Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 170m³/h Max. pressure 88bar Delivery cylinder Φ260mm Stroke 2100mm

Maximum vertical reach 48.6m Maximum horizontal reach 43.6m Maximum depth reach 34.6m Minimum unfolding height 12.9m Section numbers 6 Boom type RZ Pipeline diameter 125mm Maximum theorical output 180/120m3/h Maximum theorical pressure on concrete 83/120bar Concrete cylinders (diam. × stroke) 260mm x 2100mm Hydraulic circuit Open Chassis brand Multiple Choices

Reach height 47.00m Horizontal reach ( gross/net ) 42.70/39.90m Reach depth 32.60m Unfolding height 9.70m Sections 5 Folding system RZ End hose length 3m Delivery line DN125mm Max. output 180/120m³/h Max. pressure 93/120bar Delivery cylinder Φ260mm Stroke 2100mm
