INDUSTRIAL VEHICLE

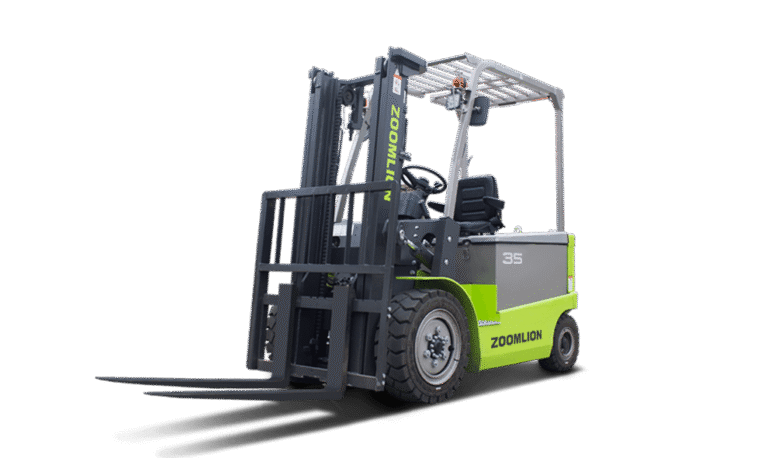

Rated capacity 3500 kg Load centre 500 mm Lifting height 3000 mm Free lifting height 145 mm Tilting angle 6°/12° Turning radius 2385 mm Front overhang 495 mm Tread 470 mm Wheelbase 1720 mm Fork spread(Min./Max.) 1070 mm Working aisle width with pallet(Ast) 4340 mm Service weight – Operating pressure for attachment 136.1 kg/cm² Travel…

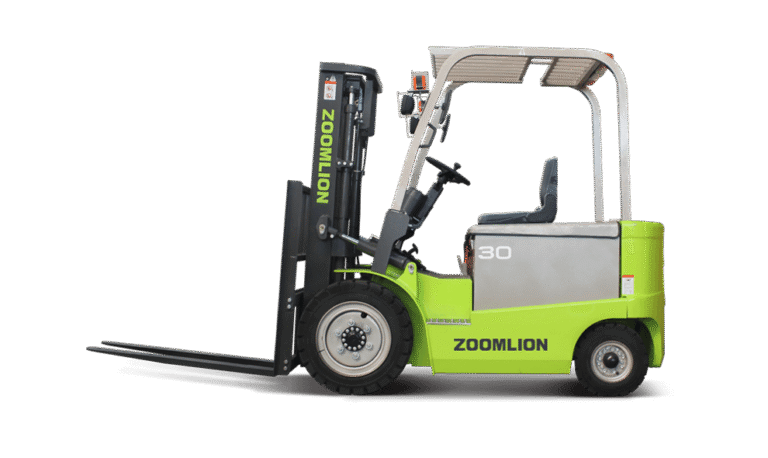

Rated capacity 3000 kg Load centre 500 mm Lifting height 3000 mm Free lifting height 145 mm Tilting angle 6°/12° Turning radius 2245 mm Front overhang 480 mm Tread 470 mm Wheelbase 1600 mm Fork spread(Min./Max.) 1070 mm Working aisle width with pallet(Ast) 4198 mm Service weight – Operating pressure for attachment 135.9 kg/cm² Travel…

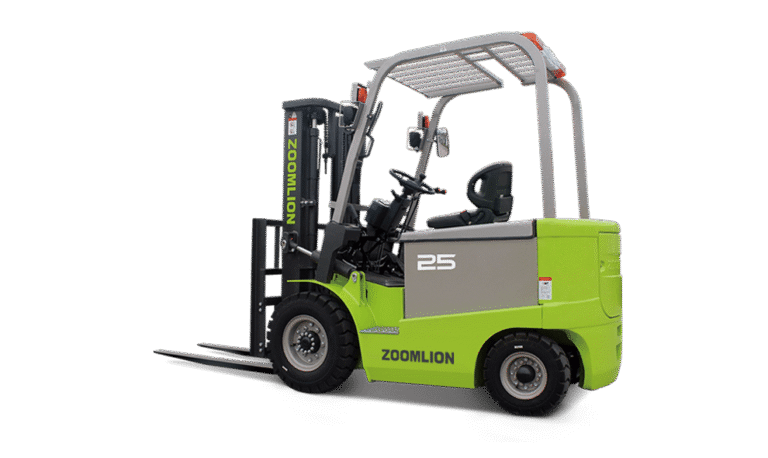

Rated capacity 2500 kg Load centre 500 mm Lifting height 3000 mm Free lifting height 145 mm Tilting angle 6°/12° Turning radius 2090 mm Front overhang 475 mm Tread 454 mm Wheelbase 1450 mm Fork spread(Min./Max.) 1070 mm Working aisle width with pallet(Ast) 4035 mm Service weight – Operating pressure for attachment 142.8 kg/cm² Travel…

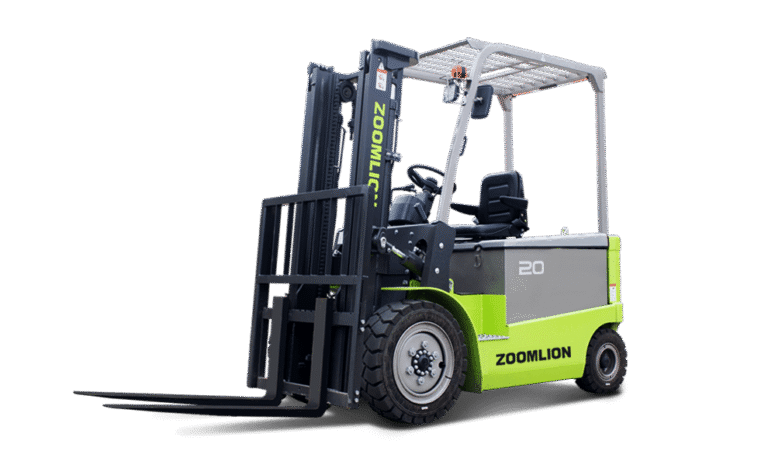

Rated capacity 2000 kg Load centre 500 mm Lifting height 3000 mm Free lifting height 145 mm Tilting angle 6°/12° Turning radius 2090 mm Front overhang 475 mm Tread 454 mm Wheelbase 1450 mm Fork spread(Min./Max.) 920 mm Working aisle width with pallet(Ast) 3885 mm Service weight – Operating pressure for attachment 117.3 kg/cm² Travel…

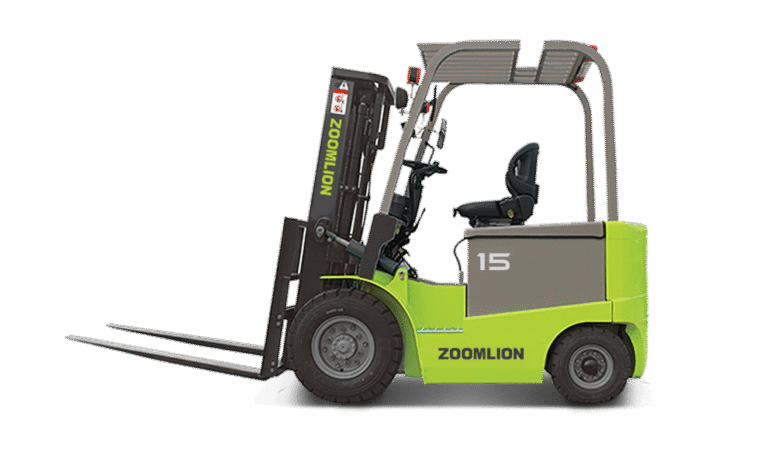

Rated capacity 1500 kg Load centre 500 mm Lifting height 3000 mm Free lifting height 135 mm Tilting angle 6°/12° Turning radius 1850 mm Front overhang 400 mm Tread 426 mm Wheelbase 1250 mm Fork spread(Min./Max.) 920 mm Working aisle width with pallet(Ast) 3570 mm Service weight – Operating pressure for attachment 111.9 kg/cm² Travel…
