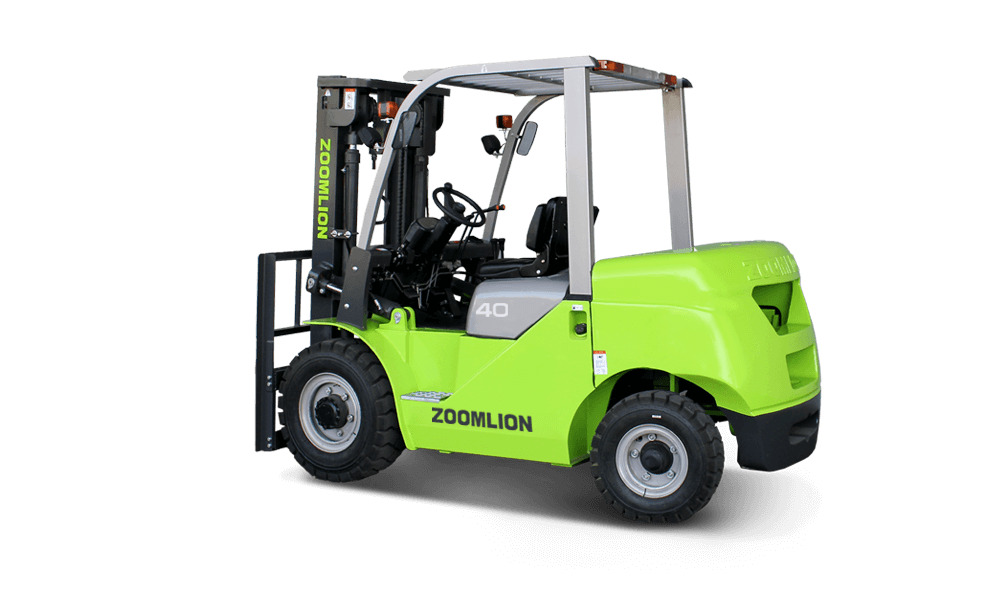

FD40mini
| Rated capacity | 4000Kg |
|---|---|
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 85mm |
| Tilting angle | 6°/12° |
| Turning radius | 2700mm |
| Front overhang | 500mm |
| Tread | 490mm |
| Wheelbase | 1900mm |
| Fork spread(Min./Max.) | – |
| Working aisle width with pallet(Ast) | – |
| Service weight | – |
| Operating pressure for attachment | 17.5MPa |
| Travel (Laden) | 19Km/h |
| Travel(Unladen) | 20Km/h |
| Lifting(Laden) | 410mm/s |
| Lifting(Unladen) | 440mm/s |
| Lowering (Laden) | ＜600mm/s |
| Lowering(Unladen) | ≥300mm/s |
| Laden | 0.2 |
| Unladen | – |
| Driven motor | – |
| Pump motor | – |
| Battery | 90Ah/12V |
| Controller | – |
| Rear Wheel | 250-15-16PR |
| Front Wheel | 6.50-10-10PR |
| Overall Dimension(L×H×W) | 2930×2090×1410 |
| Weight | 5300 |
