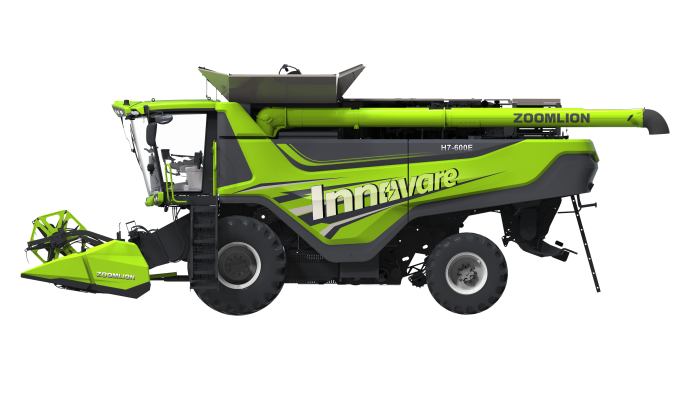

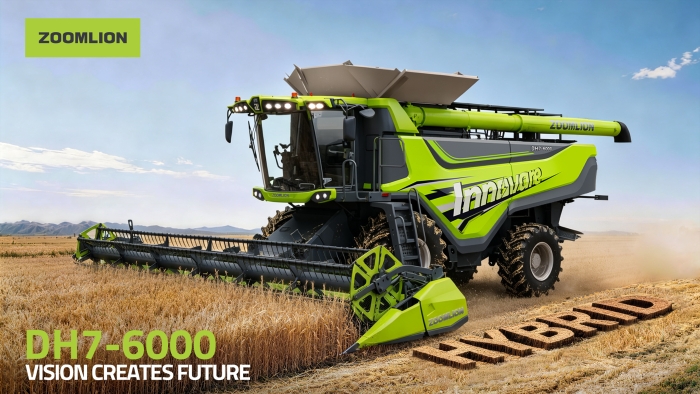

DH7-6000
| Product Series | DH7-6000 |
|---|---|
| Specifications | Value/Specification |
| Throughput capacity | kg/s 20 |
| Overall dimensions (without header) (L × W × H) | mm 10706×4004×4038 (without header) |
| Operating weight (excluding header) | kg 20785 (unloaded) |
| Min. ground clearance | mm 460 |
| Model | / YC-K11480 |
| Number of cylinders | cylinders 6 |
| Fuel tank capacity | L 760 |
| Structural design | / 3-stage tangential separation + twin axial rotors |
| Cylinder (diameter × length) | mm Φ600×1440 |
| Cylinder speed | r/min 330~930 |
| Total separation area | m² 3.7 |
| Cleaning system type | / Air & sieve cleaning system |
| Grain tank capacity | m 3 11.5 |
| Unloading rate | L/s 110 |
| Transmission type | / Electro-hydraulic shift + HST |
| Tires (front/rear) | / IF600/70R28 (front) 900/60 R32 (rear) |
| Drive type | / 4WD |
| Rigid grain header | Dimensions m 8030×2300×1550 |
| Weight | kg 2350 |
| Soybean flex header | Dimensions m 9800×2820×1600 |
| Weight | kg 2850 |
| Corn header | Dimensions rows/m 12 rows/6300×3190×1210 12 rows/8150×3190×1210 12 rows/8750×3190×1210 |
| Weight | kg 3400/4600 |
| Multi-crop header | Dimensions rows/m / |
| Weight | kg / |
