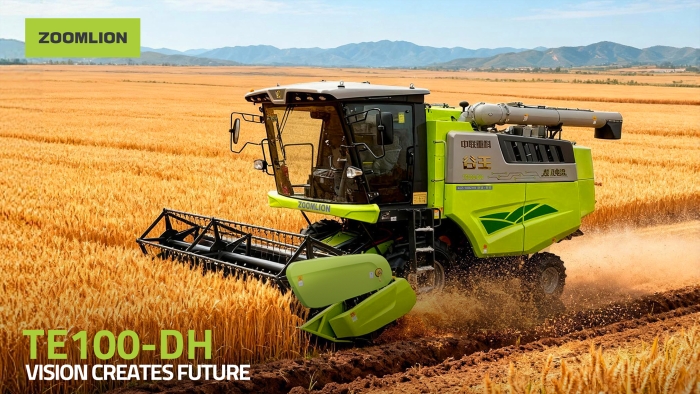

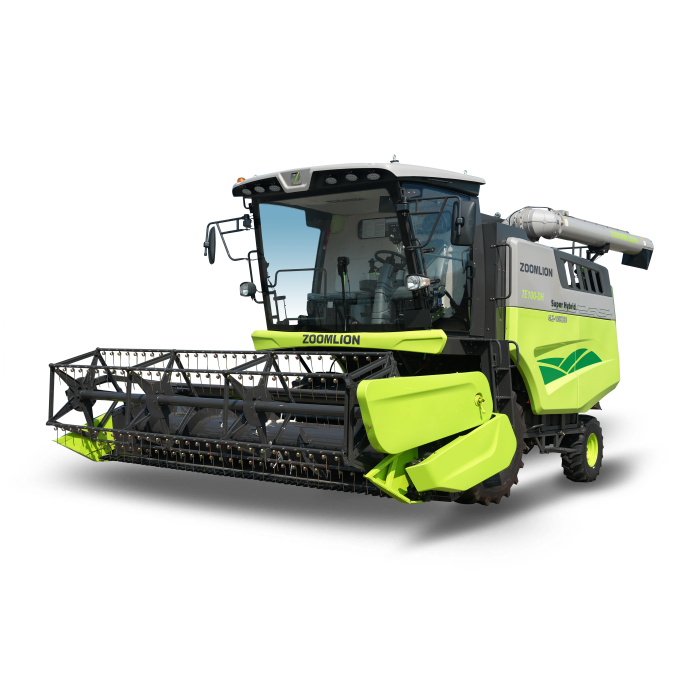

TE100-DH
| Product Series | TE100 － DH |
|---|---|
| Throughput capacity | kg/s 10 |
| Overall dimensions (excluding header) (L × W × H) | mm 6100×2900×3420 |
| Operating weight (excluding header) | kg 7400 |
| Min. ground clearance | mm 330 |
| Model | / Yuchai YCA05190-T300 |
| Number of cylinders | cylinders 4 |
| Fuel tank capacity | L 440 |
| Structural design | / Single axial rotor (combined threshing & separation) |
| Cylinder (diameter × length) | mm φ620×3180 |
| Cylinder speed | r/min 0-1200 (max. recommended operating speed: 1000) |
| Total separation area | m² 2.5 |
| Cleaning system type | / Air & sieve cleaning system |
| Grain tank capacity | m 3 3.2 |
| Unloading rate | L/s 60 |
| Transmission type | / Mechanical + HST |
| Tires (front/rear) | / 540/70R24, 300/80R15.3 |
| Drive type | / 2WD |
| Rigid grain header | Dimensions m 2.96/3.25/4 |
| Weight | kg 726/785/895 |
| Soybean flex header | Dimensions m 4 |
| Weight | kg 1200 |
| Corn header (with stalk chopper) | Dimensions rows/m 5*700/5*750/4*900 |
| Weight | kg 1867/1720/1675 |
| Multi-crop header | Dimensions rows/m 7*410 |
| Weight | kg 1100 |
