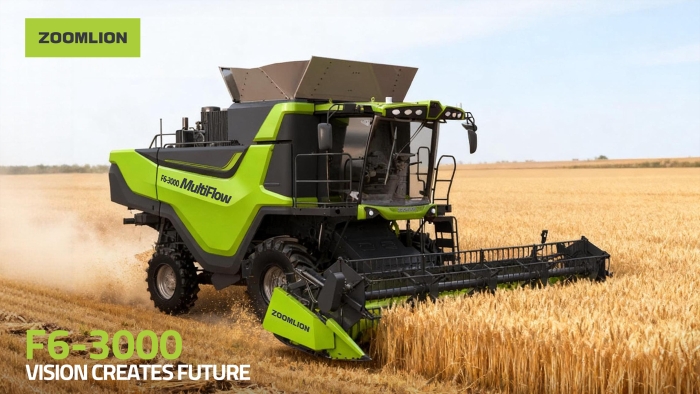

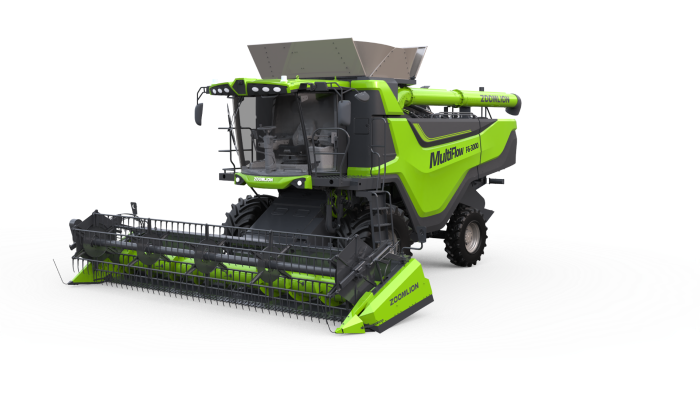

F6-3000
| Product Series | F6-3000 |
|---|---|
| Specifications | Value/Specification |
| Throughput capacity | kg/s 15 |
| Overall dimensions (without header) (L × W × H) | mm 8225×3650×3975 |
| Operating weight (excluding header) | kg 13248 |
| Min. ground clearance | mm |
| Model | / YCA07K300-T300/YCA08300-S301 |
| Number of cylinders | cylinders 6 |
| Fuel tank capacity | L 605 |
| Structural design | / Tangential separation +twin axial rotors |
| Cylinder (diameter × length) | mm Φ480×3180 |
| Cylinder speed | r/min 368-1137rpm |
| Total separation area | m² 4.3 |
| Cleaning system type | / Air & sieve cleaning system |
| Grain tank capacity | m 3 8.8 |
| Unloading rate | L/s 55 |
| Transmission type | / / |
| Tires (front/rear) | / 380/85R26, 750/65R26 |
| Drive type | / Hydraulic on-demand 4WD |
| Rigid grain header | Dimensions m 6.6 |
| Weight | kg 2150 |
| Soybean flex header | Dimensions m 5.6 |
| Weight | kg 1150 |
| Corn header | Dimensions rows/m 6 rows/8 rows |
| Weight | kg / |
| Multi-crop header | Dimensions rows/m / |
