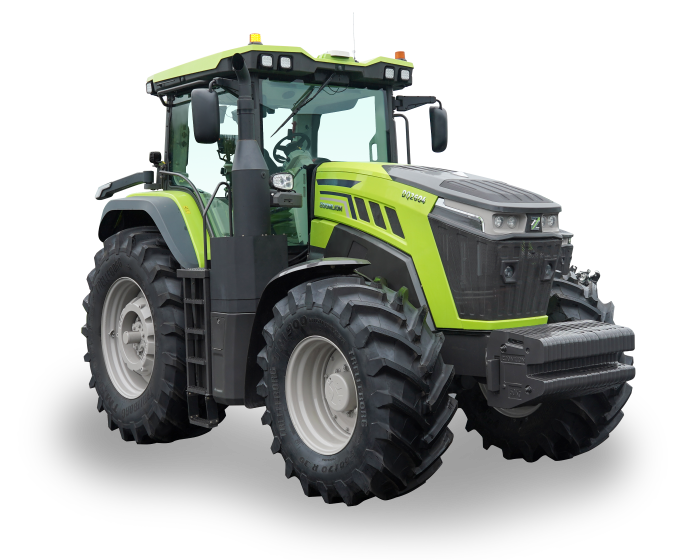

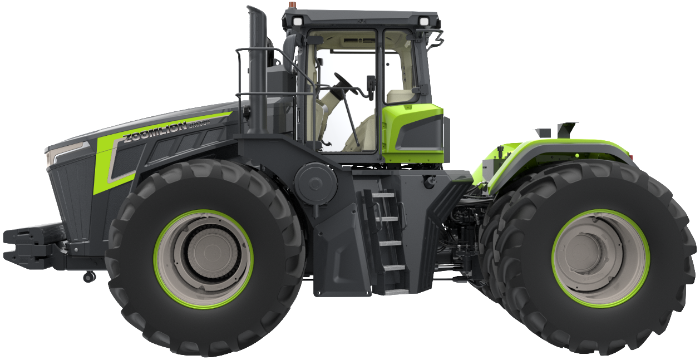

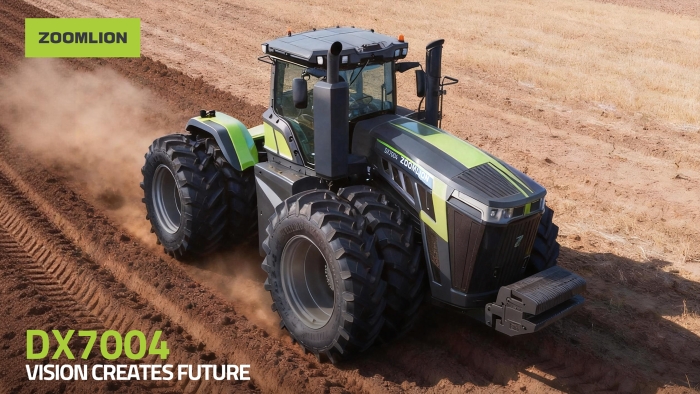

DX7004
| Model | DX7004 |
|---|---|
| Parameter | Unit Value/Specification |
| Model | / QSM15 77C |
| Engine type | / 6-cylinder, vertical, inline, water-cooled, four-stroke, turbocharged intercooled engine |
| Fuel tank | L 1508 |
| Rated motor output | kW 283 (working motor) |
| Rated voltage | V 592 (working motor) |
| High-voltage battery rated capacity | kW·h 24.2 |
| Transmission type | / Range infinitely variable transmission with electronic gear shifting |
| Speed range | km/h Low range: 0-18 km/h; high range: 0-40 km/h |
| Drive configuration | / Permanent 4WD |
| Min. turning radius | m 6.33 |
| Hydraulic flow rate | L/min 416 |
| Remote hydraulic valves (sets) | set 6 |
| Hitch type and category | / Category 4N |
| Hitch lift capacity max. 610 mm behind | kN 95 |
| PTO speed options | r/min 0~1000 |
| Air brake | / 3-circuit air brake |
| Max. operating weight | KG 30000 |
| L × W × H | mm 8284×4323×3873 |
| Wheel base | mm 4093 |
| Wheel track (front/rear) | mm Inner track: 1832 mm; outer track: 3612 mm |
| Min. ground clearance | mm 450 (at drawbar support) |
| Tires (front/rear) | Standard configuration 710/70R42 (front duals); 710/70R42 (rear duals) |
