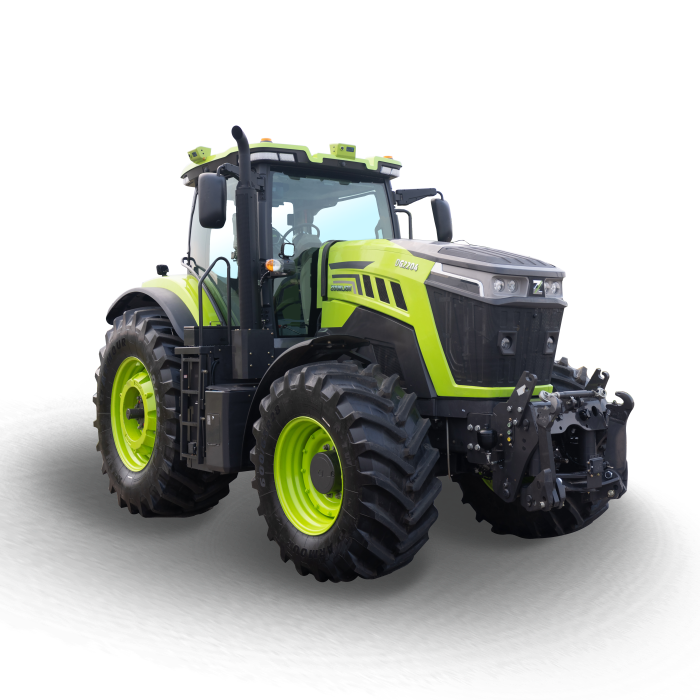

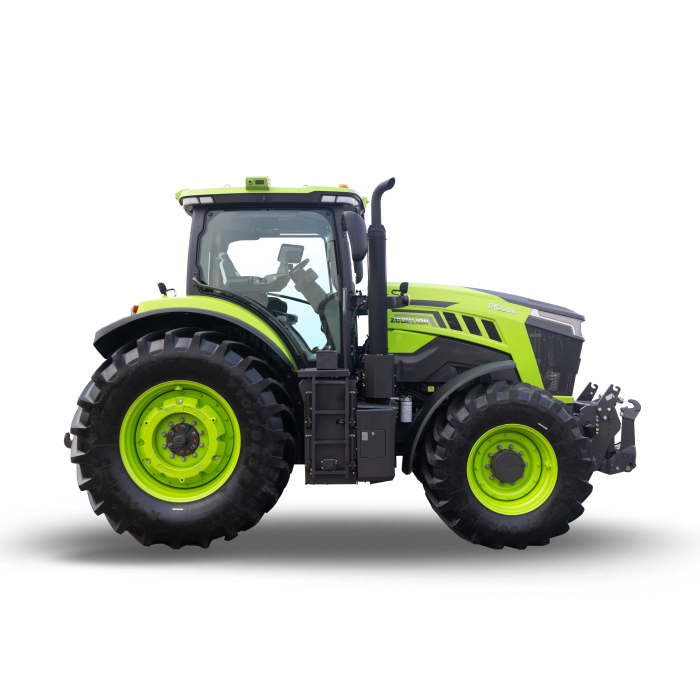

DG2204
| Model | DG2204 DG2204 DG2204 |
|---|---|
| Parameter | Unit Value/Specification Value/Specification Value/Specification |
| Model | / YCA07260-S500 (Euro V) YCA07260-S300 (Euro IIIA) YCA07260-M300 (Brazil III) |
| Engine type | / 6-cylinder, high-pressure common rail, turbocharged intercooled engine 6-cylinder, high-pressure common rail, turbocharged intercooled engine 6-cylinder, high-pressure common rail, turbocharged intercooled engine |
| Fuel tank | L 320 320 320 |
| Rated motor output | kW 175 (working motor) 175 (working motor) 175 (working motor) |
| Rated voltage | V 592 592 592 |
| High-voltage battery rated capacity | kW·h 6.23 6.23 6.23 |
| Transmission type | / Range infinitely variable transmission with electronic gear shifting Range infinitely variable transmission with electronic gear shifting Range infinitely variable transmission with electronic gear shifting |
| Speed range | km/h 0-50 (optional: 40) 0-40 0-40 |
| Drive configuration | / Dual-motor coupled drive (with 2-speed AMT mechanical automatic shifting) Dual-motor coupled drive (with 2-speed AMT mechanical automatic shifting) Dual-motor coupled drive (with 2-speed AMT mechanical automatic shifting) |
| Min. turning radius | m 6.5±0.3 6.5±0.3 6.5±0.3 |
| Hydraulic flow rate | L/min 158 158 158 |
| Remote hydraulic valves (sets) | set 5 (rear) + 2 (front) 5 (rear) + 2 (front) 5 |
| Hitch type and category | / Three-point hitch, category 3 (rear) / category 2N (front) Three-point hitch, category 3 (rear) / category 2N (front) Three-point hitch, category 3 |
| Hitch lift capacity max. 610 mm behind | kN 60 (rear)/ 35 (front) 60 (rear)/ 35 (front) 60 |
| PTO speed options | r/min 540/760/1000+0～1000 stepless (rear);1000 (front) 540/760/1000+0～1000 stepless (rear);1000 (front) 540/760/1000+0～1000 stepless |
| Air brake | / Dual-circuit air brake Dual-circuit air brake Dual-circuit air brake |
| Max. operating weight | KG 13450 13450 13450 |
| L × W × H | mm 5,480 × 2,550 × 3,300 (front/rear singles – standard tire) 5480 × 2550 × 3250 (front/rear singles) 5530 × 2550 × 3250 (front/rear singles) |
| Wheel base | mm 2850 2800 2800 |
| Wheel track (front/rear) | mm 1907/1840 1840/1840 1840/1840 |
| Min. ground clearance | mm 445 453 453 |
| Tires (front/rear) | Standard configuration Standard: 600/65 R28 (front single); 710/70 R38 (rear single) Optional: 600/70 R28 (front single); 800/70 R38 (rear single) 600/65 R28 (front single); 710/70 R38 (rear single) 600/65 R28 (front single); 710/70 R38 (rear single) |
