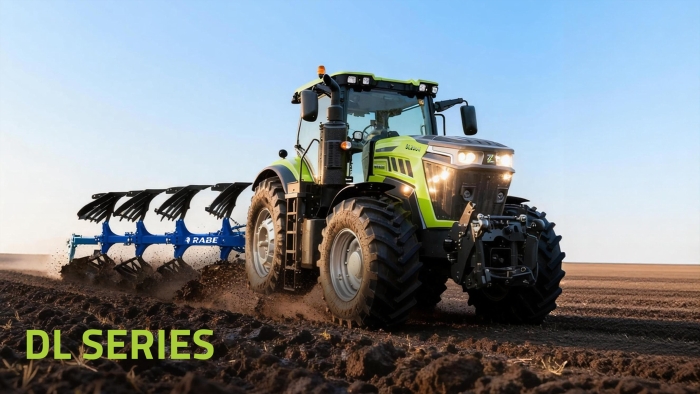

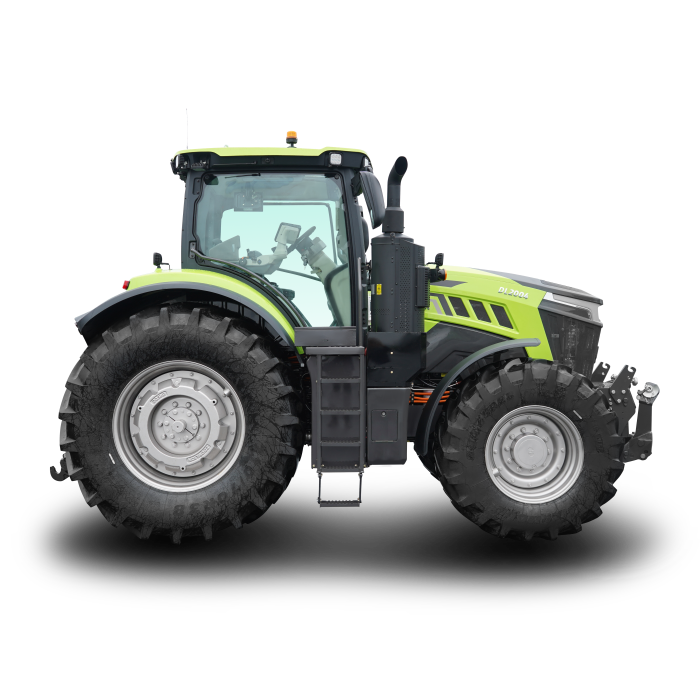

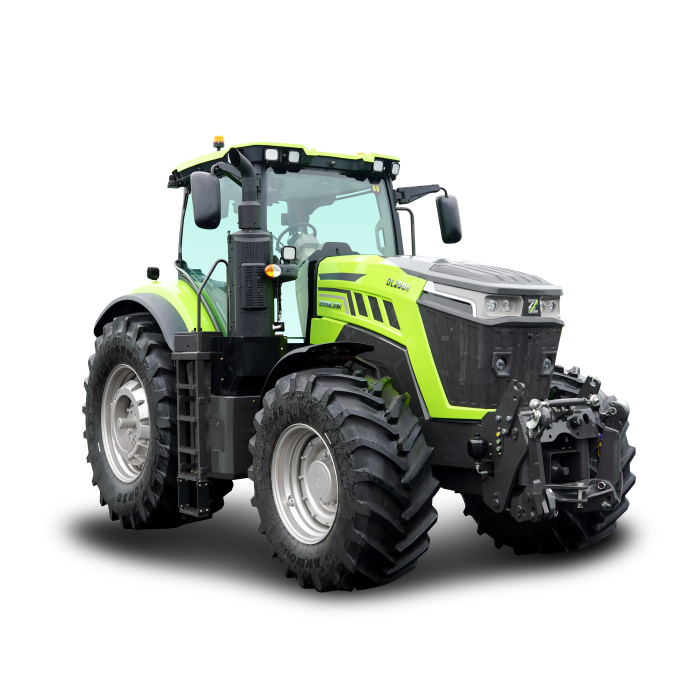

DL2004
| Model | DL2004 (Euro Stage V) |
|---|---|
| Parameter | Unit Value/Specification |
| Model | / YCA07200-S500 |
| Engine type | / 6-cylinder, high-pressure common rail, turbocharged intercooled engine |
| Fuel tank | L 322 |
| Rated motor output | kW 120 |
| Rated voltage | V 600 |
| High-voltage battery rated capacity | kW·h 6.23 |
| Transmission type | / ECVT |
| Speed range | km/h 0-40 |
| Drive configuration | / Dual-motor coupled drive (with 2-speed AMT mechanical automatic shifting) |
| Min. turning radius | m 5.4 |
| Hydraulic flow rate | L/min 150 |
| Remote hydraulic valves (sets) | set 5 |
| Hitch type and category | / Category 3 |
| Hitch lift capacity max. 610 mm behind | kN 56.5 |
| PTO speed options | r/min 540/540E/1000 |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | KG 12000 |
| L × W × H | mm 5376×2550×3300 |
| Wheel base | mm 2850 |
| Wheel track (front/rear) | mm 1907/1840 |
| Min. ground clearance | mm 450 (at drawbar support) |
| Tires (front/rear) | Standard configuration 600/65R28 (front); 710/70R38 (rear) |
