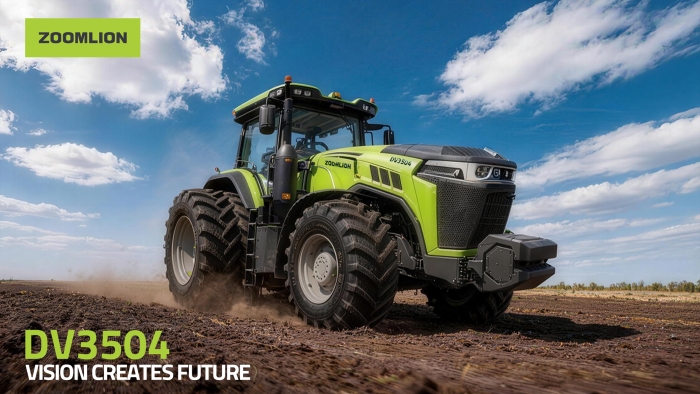

DV3504
| Model | DV3504 |
|---|---|
| Parameter | Unit Value/Specification |
| Model | / YCK09 400-S300 |
| Engine type | / 6-cylinder, high-pressure common rail, turbocharged intercooled engine |
| Fuel tank | L 650 |
| Rated motor output | kW 257.5 |
| Rated voltage | V 600 |
| High-voltage battery rated capacity | kW·h 11.55 |
| Transmission type | / Range infinitely variable transmission with electronic gear shifting |
| Speed range | km/h 0-40 |
| Drive configuration | / Dual-motor coupled drive (with 2-speed AMT mechanical automatic shifting) |
| Min. turning radius | m 6.5±0.3 |
| Hydraulic flow rate | L/min 227 |
| Remote hydraulic valves (sets) | set 4 |
| Hitch type and category | / 4 N/4 |
| Hitch lift capacity max. 610 mm behind | kN 88 |
| PTO speed options | r/min 540/760/1000+0-1000 stepless |
| Air brake | / Dual-circuit air brake |
| Max. operating weight | KG 18000 |
| L × W × H | mm 6450×3050×3450 (front/rear singles) |
| Wheel base | mm 3100 |
| Wheel track (front/rear) | mm 1890/1830-2955 |
| Min. ground clearance | mm 440 |
| Tires (front/rear) | Standard configuration 600 70R38 (front single/dual); 710 70R42 (rear single/dual) |
