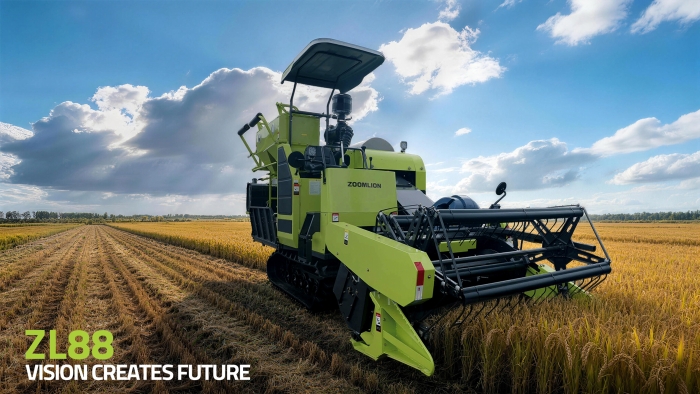

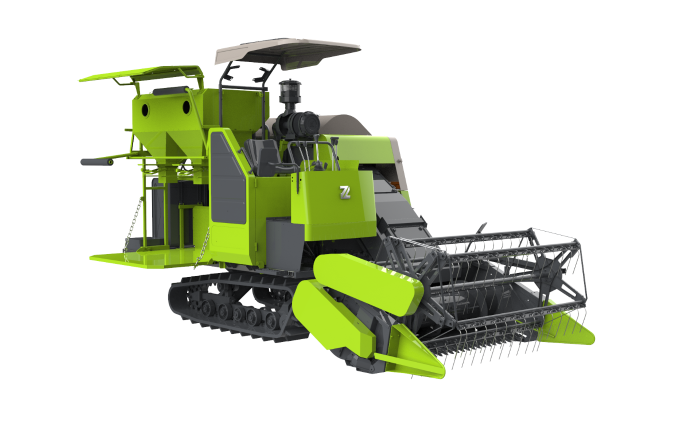

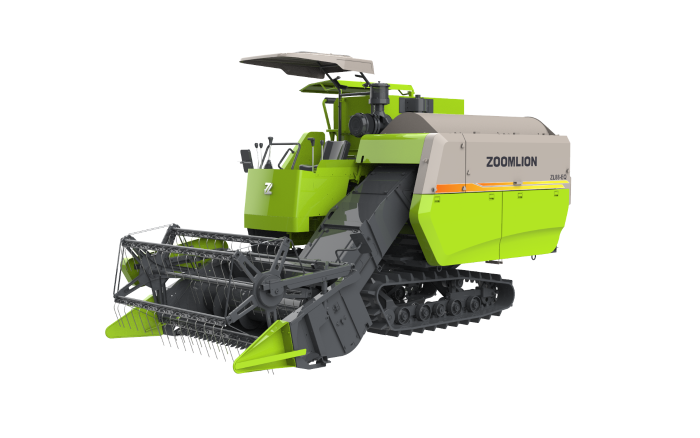

ZL88
| Specification | Unit Design Value |
|---|---|
| Model | ZL88-SQ ZL88-EQ |
| L × W × H | mm 5070×2385×3070 5070×3040×2890 |
| Operating weight | kg 3640 3450 |
| Model | / 4C6-88M22 4C6-88M22 |
| Type | / Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine |
| Power/Horsepower | kW/PS 65{88} 65{88} |
| Fuel tank capacity | L 150 150 |
| Track gauge | mm 1150 1150 |
| Width × Pitch × Links | / 500×90×53 500×90×53 |
| Ground contact length | / 1700 1700 |
| Hydrostatic transmission (HST) displacement | ml/r 45 45 |
| Travel transmission | / YD80 YD80 |
| Min. ground clearance | mm 320 320 |
| Cutting width (tip-to-tip of crop divider) | mm 2000 2000 |
| Reel diameter | mm 900 900 |
| Main threshing cylinder dimensions (outer diameter × length) | mm φ620×2000 φ620×2000 |
| Grain tank capacity | m³ 1.55 0.6 |
| Travel speed – low range | m/s 0 ～ 1.07 0 ～ 1.07 |
| Travel speed – field range | m/s 0 ～ 1.42 0 ～ 1.42 |
| Travel speed – transport range | m/s 0 ～ 2.07 0 ～ 2.07 |
