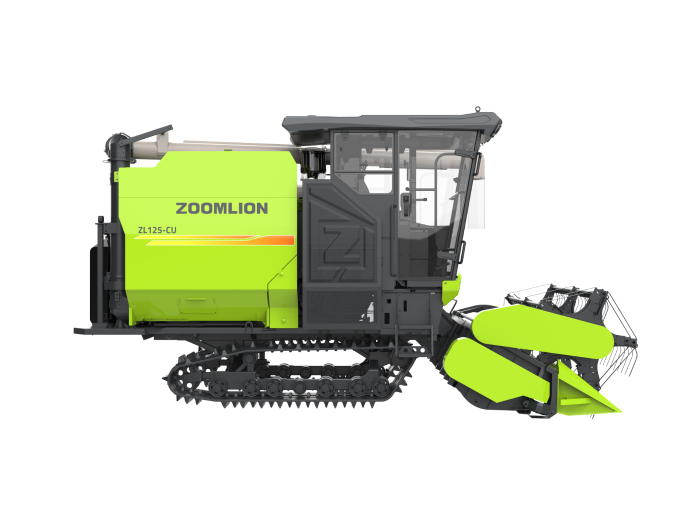

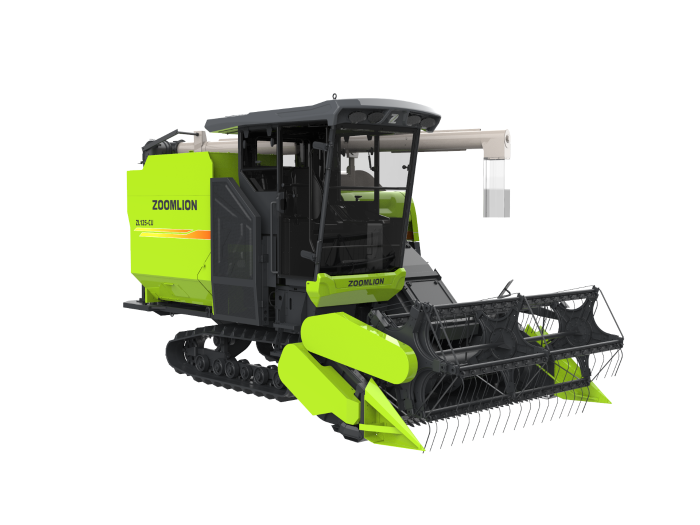

ZL125
| Specification | Unit Design Value |
|---|---|
| Version | Standard |
| Model | ZL125-CX ZL125-SX ZL125-CU ZL125-SU |
| L × W × H | mm 5470×2870×2850 5420×2870×3110 5420×2870×3110 5420×2870×3110 |
| Operating weight | kg 4450 4330 4450 4330 |
| Model | / 4D35ZT-510 4D35ZT-510 YC4DK130L-T20-DKM2S0 YC4DK130L-T20-DKM2S0 |
| Type | / Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine Inline, vertical, water-cooled, four-stroke engine |
| Power/Horsepower | kW/PS 89{120} 89{120} 96{130} 96{130} |
| Fuel tank capacity | L 210 210 210 210 |
| Track gauge | mm 1250 1250 1250 1250 |
| Width × Pitch × Links | / 500×90×58-60 500×90×58-60 600×90×58-60 600×90×58-60 |
| Ground contact length | / 1885 1885 1885 1885 |
| Hydrostatic transmission (HST) displacement | ml/r 56 56 56 56 |
| Travel transmission | / 100 heavy-duty transmission 100 heavy-duty transmission 100 heavy-duty transmission 100 heavy-duty transmission |
| Min. ground clearance | mm 350 350 350 350 |
| Cutting width (tip-to-tip of crop divider) | mm 2560 2560 2560 2560 |
| Reel diameter | mm 900 900 900 900 |
| Number of reel bats | pcs 5 5 5 5 |
| Main threshing cylinder dimensions (outer diameter × length) | mm φ620×2200 φ620×2200 φ620×2200 φ620×2200 |
| Grain tank capacity | m³ 2.0 2.0 2.0 2.0 |
| Travel speed – low range | m/s 0～1.33 0～1.33 0～1.33 0～1.33 |
| Travel speed – field range | m/s 0～1.78 0～1.78 0～1.78 0～1.78 |
| Travel speed – transport range | m/s 0～2.58 0～2.58 0～2.58 0～2.58 |
