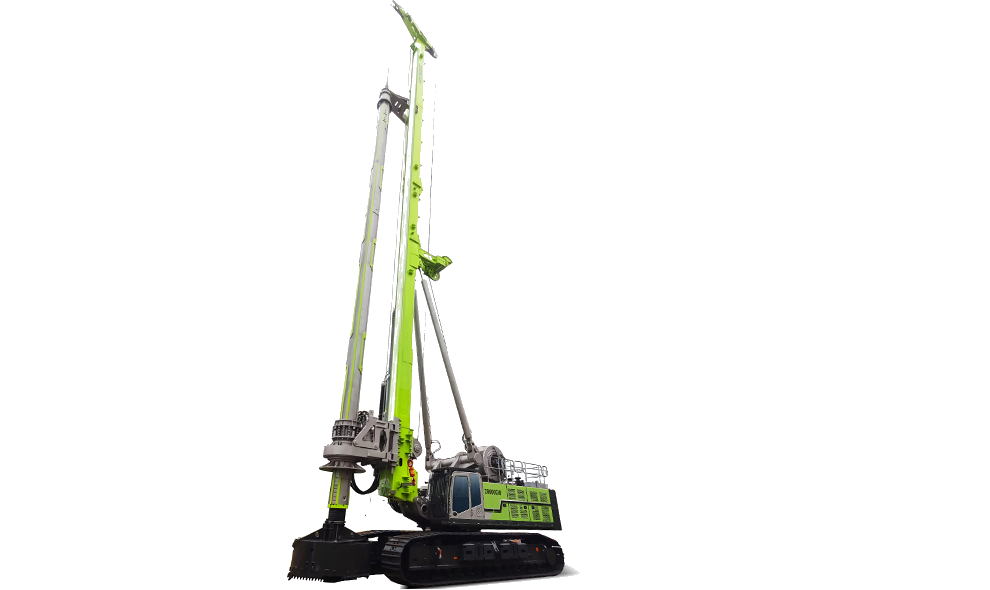

ZR600GW
| Max.drilling diameter | 3500mm |
|---|---|
| Max.drilling depth | 108/136m |
| Max. output torque | 600kN.m |
| Rotary speed range | 5-22Rpm |
| Crowd method | Winch Crowding |
| Crowd force push | 500kN |
| Crowd force pull | 600kN |
| Max. stroke crowd | 24m |
| Max. line pull | 700kN |
| Max. speed of line | 60m/min |
| Diameter of wire rope | 46mm |
| Max. line pull | 200kN |
| Diameter of wire rope | 26mm |
| Forward/backward | / |
| Left/right | / |
| Model | VOlVO TAD1643VE-B |
| Rate power of engine | 565/1900kW |
| Emission standard | Stage Ⅲ |
| Displacement of engine | 16.12L |
| Distance of tracks | / |
| Width of track shoe | / |
| Slewing radius | / |
| Operation weight | 200t |
| Max. traction force | / |
| Max. travelling speed | / |
| Overall height | 33800mm |
| Transport with Kelly bar | / |
| Transport height | 3700mm |
