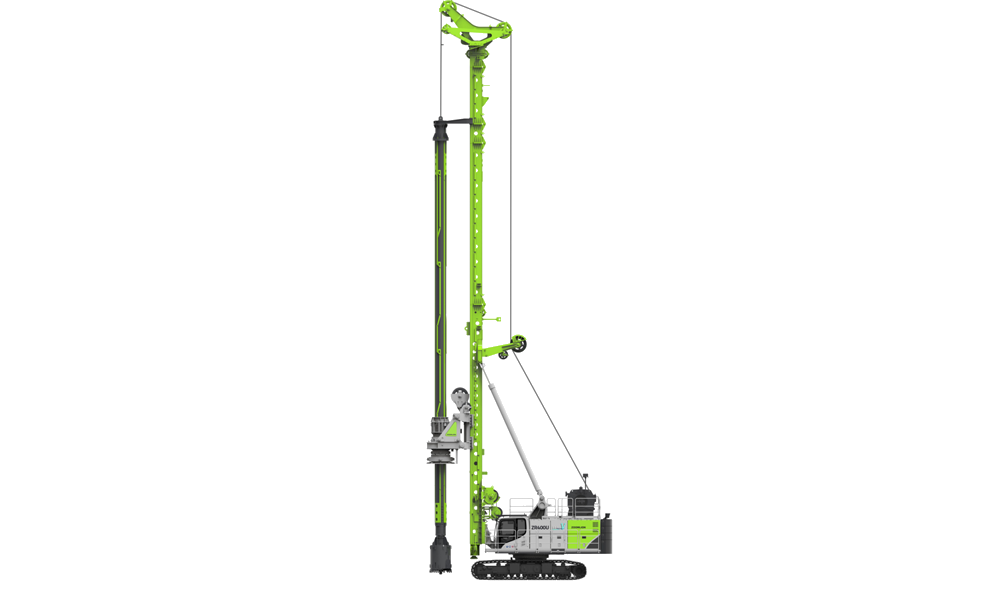

ZR400U
| Max.drilling diameter | 3000mm |
|---|---|
| Max.drilling depth | 107/70m |
| Max. output torque | 400kN.m |
| Rotary speed range | 6-28Rpm |
| Crowd method | Winch Crowding |
| Crowd force push | 400kN |
| Crowd force pull | 400kN |
| Max. stroke crowd | 22.8m |
| Max. line pull | 408kN |
| Max. speed of line | 67m/min |
| Diameter of wire rope | 40mm |
| Max. line pull | 100kN |
| Max. speed of line | 65m/min |
| Diameter of wire rope | 24mm |
| Forward/backward | / |
| Left/right | / |
| Model | Cummins X15 |
| Rate power of engine | 373kW |
| Emission standard | Stage V |
| Displacement of engine | / |
| Distance of tracks | / |
| Width of track shoe | / |
| Slewing radius | 4300mm |
| Operation weight | 156t |
| Max. traction force | / |
| Max. travelling speed | / |
| Overall height | 30500mm |
| Transport with Kelly bar | / |
| Transport height | 3400mm |
