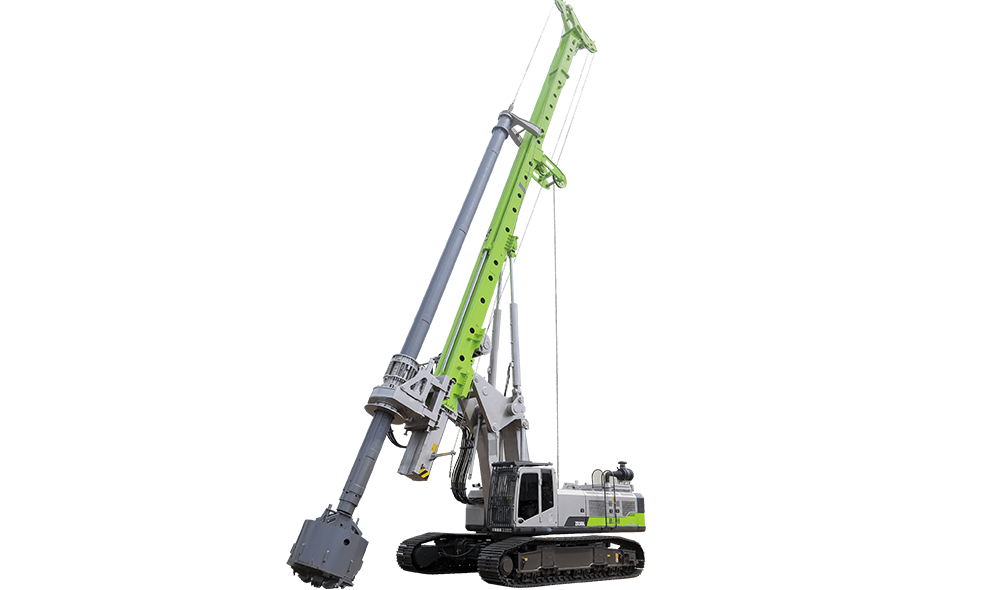

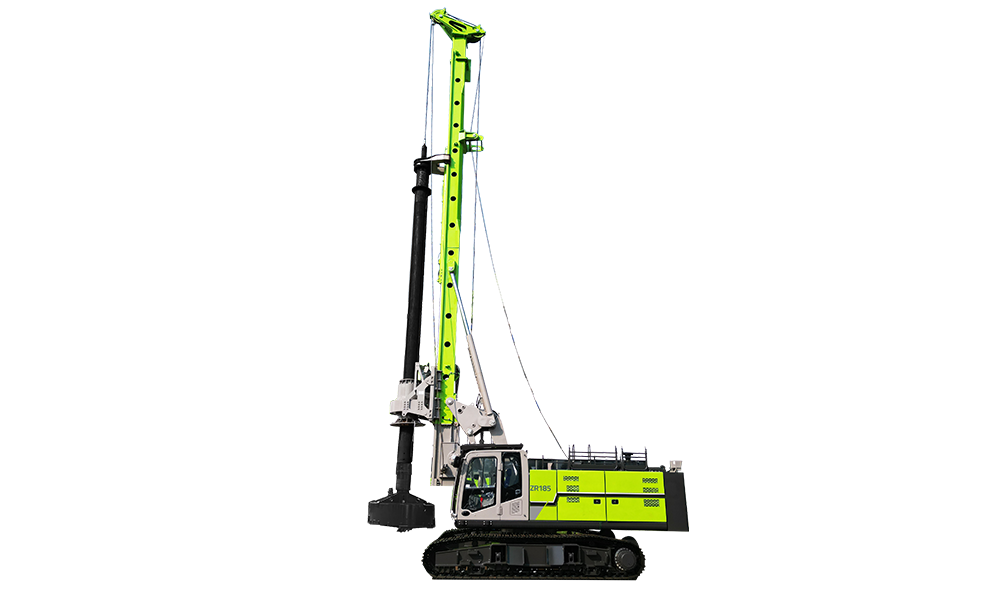

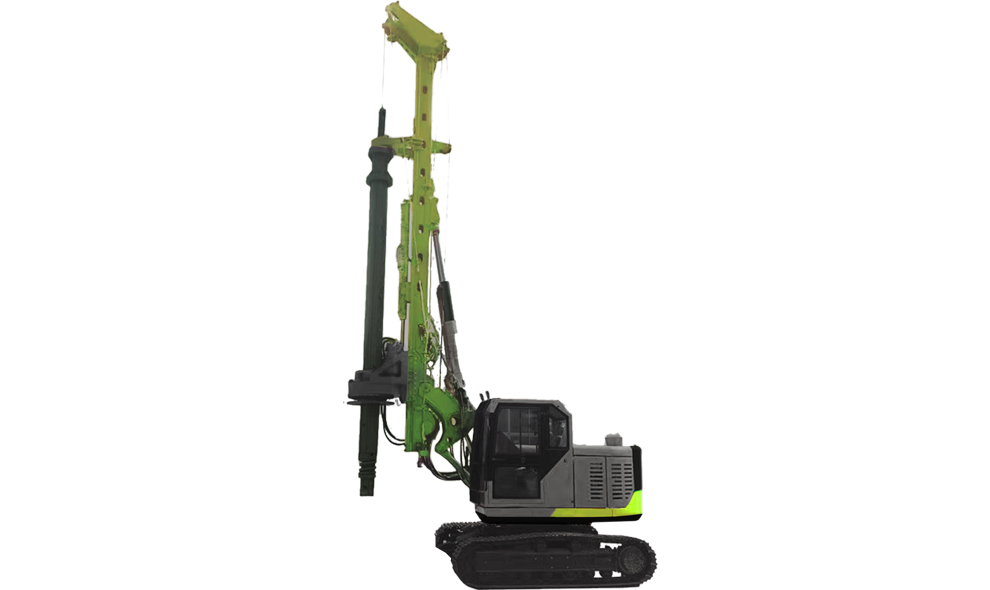

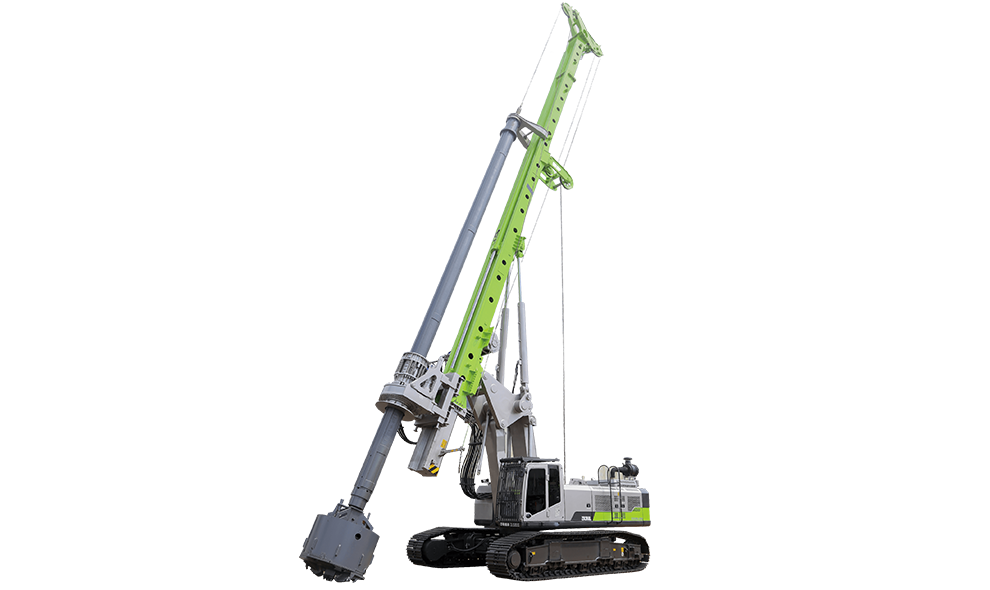

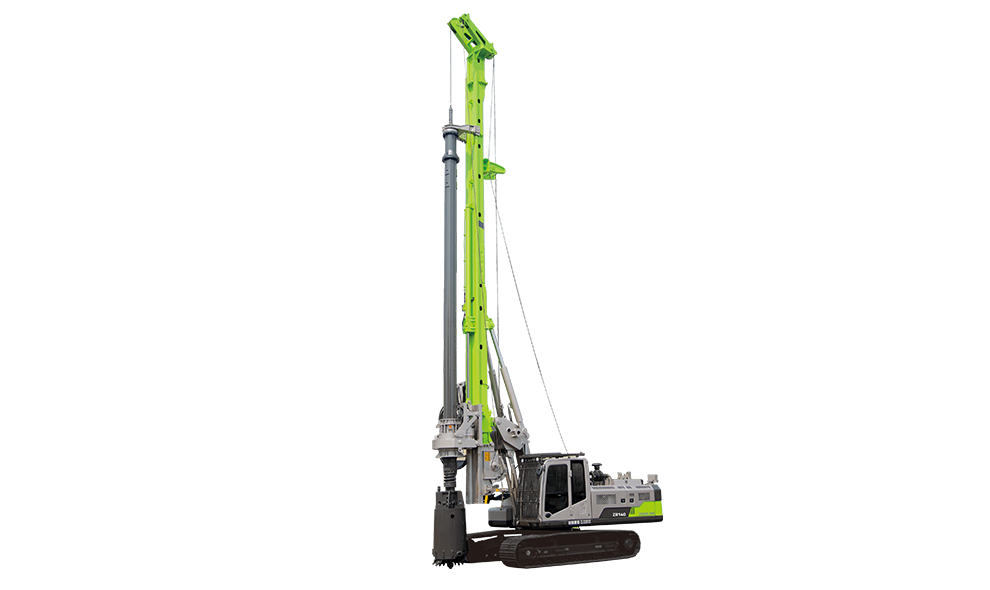

ZR85U
| Max.drilling diameter | 1200mm |
|---|---|
| Max.drilling depth | 24/28m |
| Max. output torque | 85kN.m |
| Rotary speed range | 6-48Rpm |
| Crowd method | Winch Crowding |
| Crowd force push | 100kN |
| Crowd force pull | 120kN |
| Max. stroke crowd | 13m |
| Max. line pull | 85kN |
| Max. speed of line | 70m/min |
| Diameter of wire rope | 20mm |
| Max. line pull | 52kN |
| Max. speed of line | 45m/min |
| Diameter of wire rope | 14mm |
| Forward/backward | / |
| Left/right | / |
| Model | Cummins F3.8 |
| Rate power of engine | 115 /2200kW |
| Emission standard | Euro V |
| Displacement of engine | / |
| Distance of tracks | / |
| Width of track shoe | / |
| Slewing radius | / |
| Operation weight | 28.5t |
| Max. traction force | / |
| Max. travelling speed | / |
| Overall height | 12110mm |
| Transport with Kelly bar | / |
| Transport height | 3392mm |
