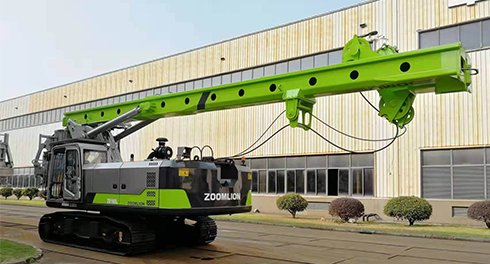

ZR160L
| Max.drilling diameter | 1500mm |
|---|---|
| Max.drilling depth | 55/44m |
| Max. output torque | 160kN ·m |
| Rotary speed range | 5～35rpm |
| Crowd method | Cylinder |
| Crowd force push | 160kN |
| Crowd force pull | 160kN |
| Max. stroke crowd | 4500mm |
| Max. line pull | 160kN |
| Max. speed of line | 82m/min |
| Diameter of wire rope | 26mm |
| Max. line pull | 60kN |
| Max. speed of line | 80m/min |
| Diameter of wire rope | 18mm |
| Forward/backward | 5/90° |
| Left/right | ±3.5° |
| Model | Cummins QSB5.9 |
| Rate power of engine | 154kW |
| Emission standard | Stage Ⅲ |
| Displacement of engine | 5.9L |
| Distance of tracks | 3000~4000mm |
| Width of track shoe | 700mm |
| Slewing radius | 3950mm |
| Operation weight | 50t |
| Max. traction force | 330kN |
| Max. travelling speed | 2.1km/h |
| Overall height | 18.8m |
| Transport with Kelly bar | Yes |
| Transport height | 3588mm |
| Kelly bar Types | Drilling depth(m) |
| Friction 377-5x12m | 56 |
| Inter-locking 377-4x12m | 44 |
