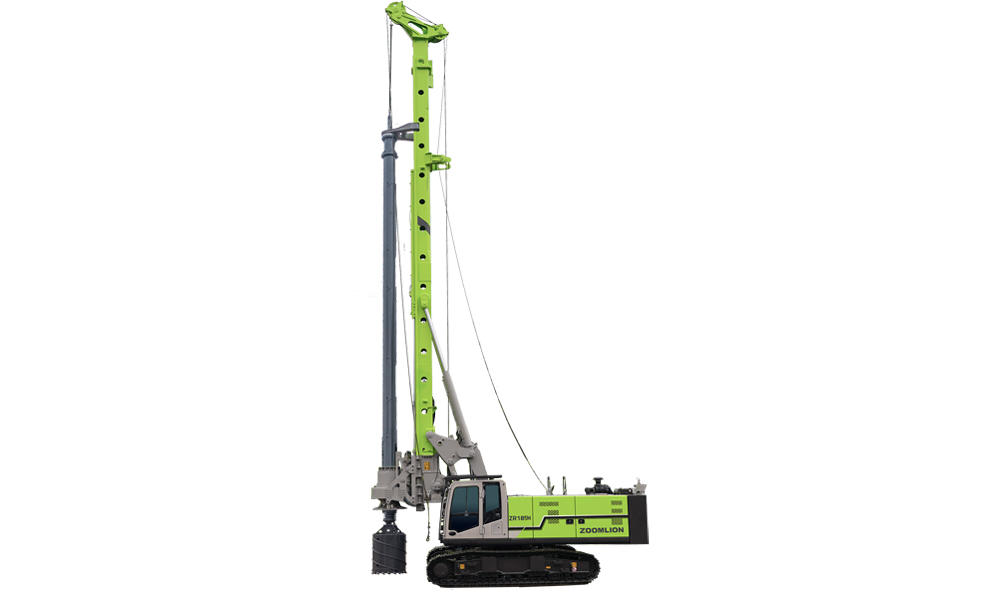

ZR185U
| Max.drilling diameter | 1300mm |
|---|---|
| Max.drilling depth | 54/42m |
| Max. output torque | 185kN ·m |
| Rotary speed range | 5~33rpm |
| Crowd method | Winch |
| Crowd force push | 210kN |
| Crowd force pull | 210kN |
| Max. stroke crowd | 13600mm |
| Max. line pull | 160kN |
| Max. speed of line | 80m/min |
| Diameter of wire rope | 26mm |
| Max. line pull | 80kN |
| Diameter of wire rope | 22mm |
| Forward/backward | 5/90° |
| Left/right | ±3.5° |
| Model | Cummins B6.7 |
| Rate power of engine | 194kW |
| Emission standard | Euro V |
| Distance of tracks | / |
| Width of track shoe | / |
| Slewing radius | / |
| Operation weight | 57t |
| Max. traction force | 330kN |
| Max. travelling speed | 2.1km/h |
| Overall height | 21001mm |
| Transport with Kelly bar | – |
| Transport height | – |
