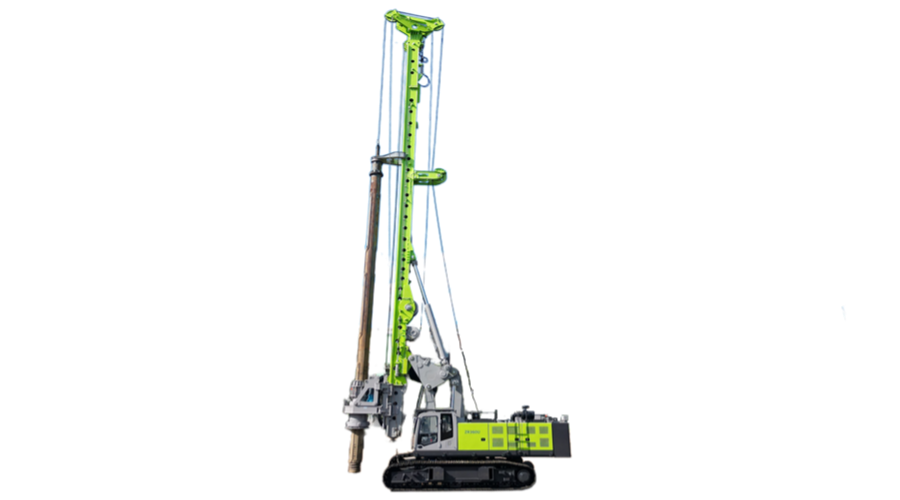

ZR360U
| Max.drilling diameter | 2300mm |
|---|---|
| Max.drilling depth | 65/100m |
| Max. output torque | 340kN.m |
| Rotary speed range | 31Rpm |
| Crowd method | Winch Crowding |
| Crowd force push | 335kN |
| Crowd force pull | 335kN |
| Max. stroke crowd | 18.6m |
| Max. line pull | 340kN |
| Max. speed of line | 72m/min |
| Diameter of wire rope | 36mm |
| Max. line pull | 110kN |
| Max. speed of line | 62m/min |
| Diameter of wire rope | 24mm |
| Forward/backward | / |
| Left/right | / |
| Model | Cummins X12 |
| Rate power of engine | 354kW |
| Emission standard | US EPA Tier4(f)，EU Stage V |
| Displacement of engine | 8.7L |
| Distance of tracks | / |
| Width of track shoe | / |
| Slewing radius | / |
| Operation weight | 84t |
| Max. traction force | / |
| Max. travelling speed | / |
| Overall height | / |
| Transport with Kelly bar | / |
| Transport height | / |
