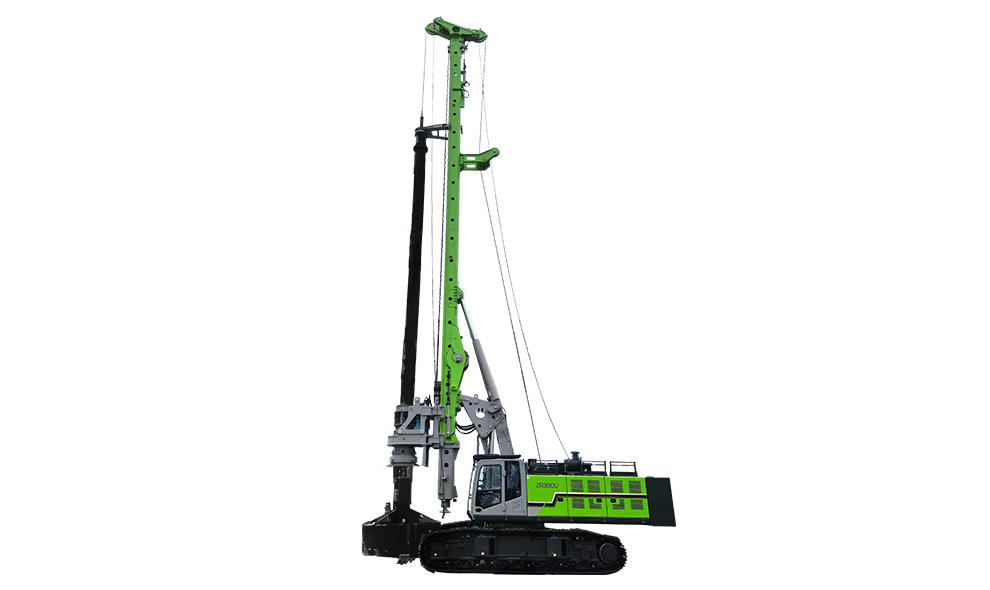

ZR300U
| Max.drilling diameter | 2000mm |
|---|---|
| Max.drilling depth | 58/88 m |
| Max. output torque | 290kN.m |
| Rotary speed range | 6-30Rpm |
| Crowd method | Winch Crowding |
| Crowd force push | 335kN |
| Crowd force pull | 335kN |
| Max. stroke crowd | 17m |
| Max. line pull | 290kN |
| Max. speed of line | 65m/min |
| Diameter of wire rope | 32mm |
| Max. line pull | 80kN |
| Max. speed of line | 68m/min |
| Diameter of wire rope | 22mm |
| Forward/backward | / |
| Left/right | / |
| Model | Cummins X12 |
| Rate power of engine | 298kW |
| Emission standard | Euro V |
| Displacement of engine | / |
| Distance of tracks | / |
| Width of track shoe | / |
| Slewing radius | / |
| Operation weight | 100t |
| Max. traction force | / |
| Max. travelling speed | / |
| Overall height | 24907mm |
| Transport with Kelly bar | / |
| Transport height | 3785mm |
