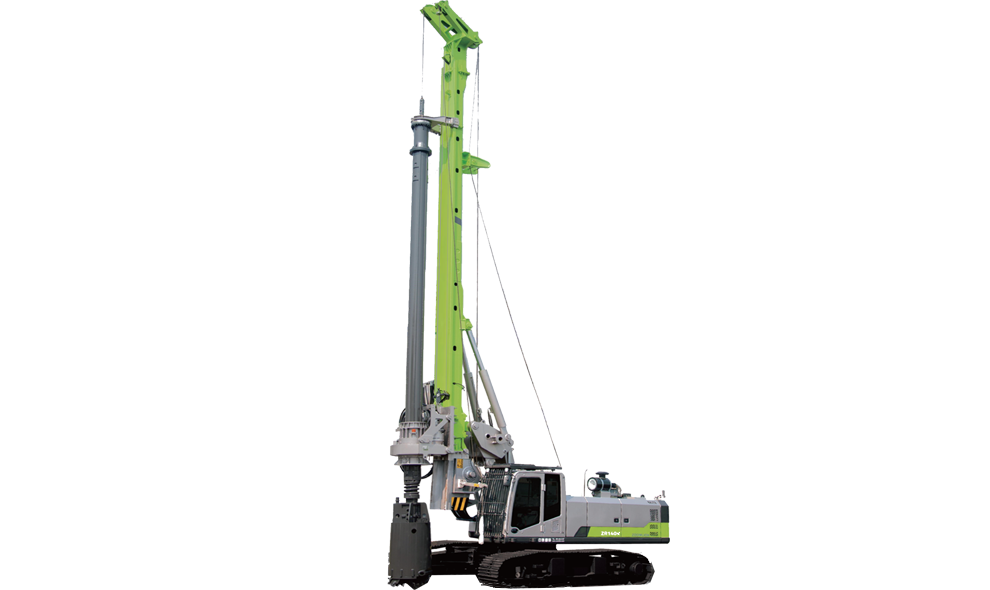

ZR140R
| Max.drilling diameter | 1300mm |
|---|---|
| Max.drilling depth | 35/44m |
| Max. output torque | 140kN.m |
| Rotary speed range | 6-33Rpm |
| Crowd method | Winch Crowding |
| Crowd force push | 130kN |
| Crowd force pull | 130kN |
| Max. stroke crowd | 10.5m |
| Max. line pull | 140kN |
| Max. speed of line | 80m/min |
| Diameter of wire rope | 22mm |
| Max. line pull | 100kN |
| Max. speed of line | 70m/min |
| Forward/backward | / |
| Left/right | / |
| Model | Cummins QSB5.9 |
| Rate power of engine | 129kW |
| Emission standard | Stage Ⅲ |
| Displacement of engine | 5.9L |
| Distance of tracks | / |
| Width of track shoe | / |
| Slewing radius | / |
| Operation weight | 40t |
| Max. traction force | / |
| Max. travelling speed | / |
| Overall height | 16637mm |
| Transport with Kelly bar | / |
| Transport height | 3607 (with kelly bar) mm |
