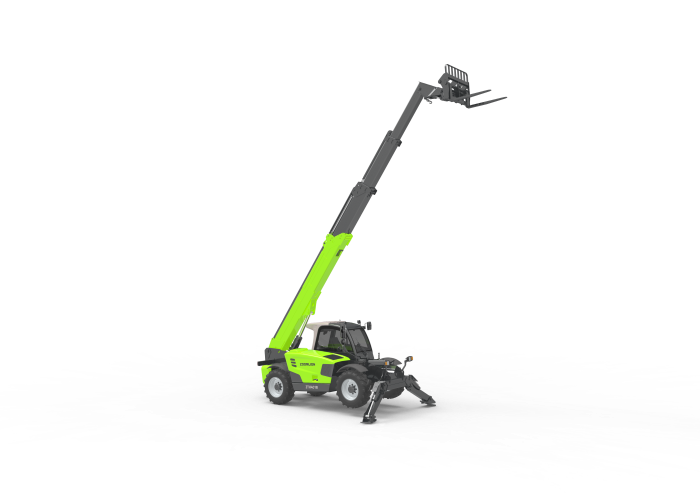

ZTH4518R
| A Overall length | 7.33m |
|---|---|
| B Overall width | 2.45m |
| C Overall height | 3.11m |
| F Wheelbase | 2.6m |
| G Min ground clearance | 0.35m |
| Rated capacity | 4500kg |
| Max lift height | 18m |
| Lift capacity at max height | 3000kg |
| Max forward reach | 15.1m |
| Lift capacity at max reach | 600kg |
| Weight | 14500kg |
| Max traction force | 92kN |
| Turning radius-outside | 3.6m |
| Engine | CumminsQSF3.8_02/CumminsF4.5/CumminsF3.8_01 |
| Rated power | 93/89/90kw |
| Max torque | 500Nm |
| Cylinder | 4 |
| Displacement | 3800/4500/3800ml |
| Transmission | Hydrostatic |
| Max drive speed | 35km/h |
| Steering | Front wheels/4WS/Crab |
| Type | 405/70-20 18PR |
| Implement pump | Piston pump |
| Hydraulic flow-pressure | 107-280L/min-bar |
| Hydraulic tank capacity | 150L |
| Fuel tank capacity | 140L |
| Fork size | 1220mm×122mm×50mm |
| Fork rotary | 118° |
| Boom up/down | 26/19s |
| Boom extend/retract | 19/19s |
| Fork lift | 6s |
| Fork retract | 5s |
| Rotate speed | 2.3r/min |
| Ourtrigger lowering | 6s |
| Ourtrigger retracting | 5s |
| A Overall length | 24ft 1in |
| B Overall width | 8ft |
| C Overall height | 10ft 2in |
| F Wheelbase | 8ft 6in |
| G Min ground clearance | 1ft 2in |
| Rated capacity | 9920lb |
| Max lift height | 59ft 1in |
| Lift capacity at max height | 6613lb |
| Max forward reach | 49ft 6in |
| Lift capacity at max reach | 1322lb |
| Weight | 31967lb |
| Max traction force | 20685lb |
| Turning radius-outside | 11ft 9in |
| Max torque | 368lb*ft |
| Displacement | 1/1.8gal1gal |
| Max drive speed | 21.75mph |
| Hydraulic flow-pressure | 28.26gal/min-280bar |
| Hydraulic tank capacity | 39.6 gal |
| Fuel tank capacity | 37gal |
| Fork size | 4ft×4.8in×1.968in |
