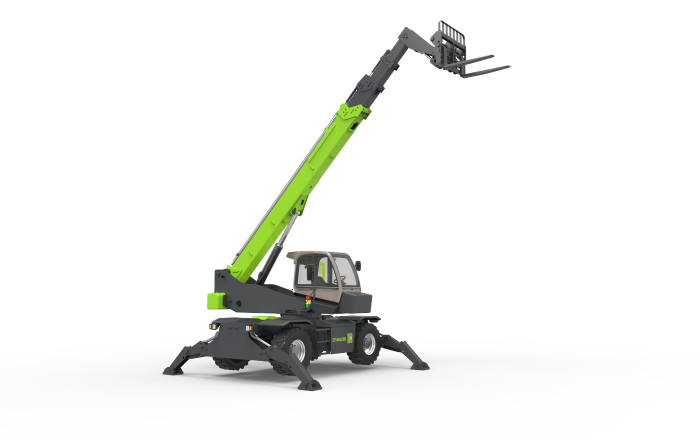

ZTH3513
| A Overall length | 5.84m |
|---|---|
| B Overall width | 2.28m |
| C Overall height | 2.55m |
| F Wheelbase | 3.07m |
| G Min ground clearance | 0.42m |
| Rated capacity | 3500kg |
| Max lift height | 12.7m |
| Lift capacity at max height | 3500kg |
| Max forward reach | 8.75m |
| Lift capacity at max reach | 1000kg |
| Weight | 9880kg |
| Max traction force | 82kN |
| Frame leveling angle | ±10° |
| Turning radius-outside | 3.8m |
| Engine | Cummins QSF3.8/Cummins F3.8 |
| Rated power | 73/55KW |
| Max torque | 420/400Nm |
| Cylinder | 4 |
| Displacement | 3760ml |
| Transmission | Hydrostatic |
| Max drive speed | 32.5/22.5km/h |
| Steering | Front wheels/4WS/Crab |
| Type | 400/70R24 |
| Implement pump | Piston pump |
| Hydraulic flow-pressure | 132-70L/min-bar |
| Hydraulic tank capacity | 145L |
| Fuel tank capacity | 145L |
| Fork size | 1220mm×122mm×50mm |
| Fork rotary | 126° |
| Boom up/down | 15/12s |
| Boom extend/retract | 17/15s |
| Fork lift | 5s |
| Fork retract | 5s |
| A Overall length | 19ft 2in |
| B Overall width | 7ft 6in |
| C Overall height | 8ft 4in |
| F Wheelbase | 10ft 1in |
| G Min ground clearance | 1ft 5in |
| Rated capacity | 7716lb |
| Max lift height | 41ft 10in |
| Lift capacity at max height | 7716lb |
| Max forward reach | 28ft 8in |
| Lift capacity at max reach | 2204lb |
| Weight | 21782lb |
| Max traction force | 18434lb |
| Turning radius-outside | 12ft 6in |
| Rated power | 98/74HP |
| Max torque | 310/295lb*ft |
| Displacement | 0.99gal |
| Max drive speed | 20.19/13.98mph |
| Hydraulic flow-pressure | 34.87gal/min-270bar |
| Hydraulic tank capacity | 38.3gal |
| Fuel tank capacity | 38.3gal |
| Fork size | 4ft×4.8in×1.968in |
