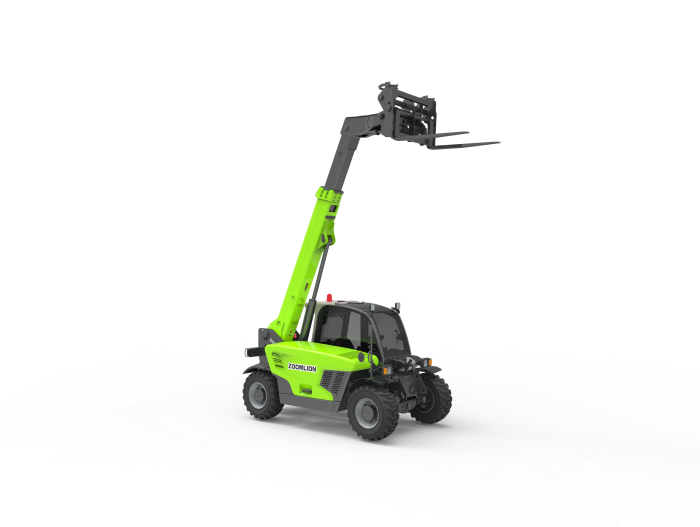

ZTH2506
| A Overall length | 13ft |
|---|---|
| B Overall width | 6ft 0.5in |
| C Overall height | 6ft 6in |
| F Wheelbase | 7ft 8in |
| G Min ground clearance | 1ft1in |
| Rated capacity | 5510lb |
| Max lift height | 19ft 10in |
| Lift capacity at max height | 4410lb |
| Max forward reach | 11ft 3in |
| Lift capacity at max reach | 1760lb |
| Weight | 10957lb |
| Max traction force | 7980lbf |
| Turning radius-outside | 11ft 1in |
| Engine | KUBOTA V3307-CR-T-EW08M/KUBOTA V3307-DI-T-MAR1-ET02 |
| Rated power | 73.2hp |
| Max torque | 213.5/195.6lb*ft |
| Cylinder | 4 |
| Displacement | 0.87gal |
| Transmission | Hydrostatic |
| Max drive speed | 12.2mph |
| Steering | Front wheels/4WS/Crab |
| Type | 12.00-16.5 |
| Implement pump | Gear pump |
| Hydraulic flow-pressure | 23.3gal/min-270bar |
| Hydraulic tank capacity | 29gal |
| Fuel tank capacity | 17gal |
| Fork size | 4ft×3.9in×1.77in |
| Fork rotary | 130° |
| Boom up/down | 7.5s/6.5s |
| Boom extend/retract | 6/5s |
| Fork lift | 4s |
| Fork retract | 3.5s |
