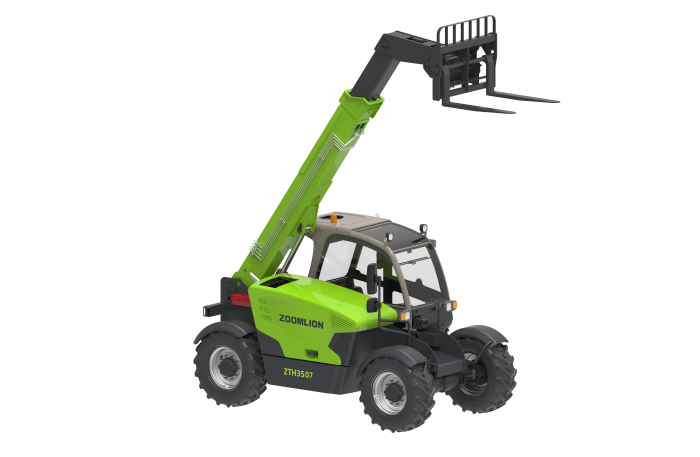

ZTH3507
| A Overall length | 4.84m |
|---|---|
| B Overall width | 2.29m |
| C Overall height | 2.57m |
| F Wheelbase | 3.04m |
| G Min ground clearance | 0.44m |
| Rated capacity | 3500kg |
| Max lift height | 7m |
| Lift capacity at max height | 3000kg |
| Max forward reach | 3.95m |
| Lift capacity at max reach | 1200kg |
| Weight | 7965kg |
| Max traction force | 66kN |
| Turning radius-outside | 3.98m |
| Engine | WEICHAI WP4.1/Cummins F3.8 |
| Rated power | 72/90KW |
| Max torque | 460/500Nm |
| Cylinder | 4 |
| Displacement | 4088/3760ml |
| Transmission | Hydraulic |
| Max drive speed | 40km/h |
| Steering | Front wheels/4WS/Crab |
| Type | 460/70R24 |
| Implement pump | Piston pump |
| Hydraulic flow-pressure | 150-270L/min-bar |
| Hydraulic tank capacity | 145L |
| Fuel tank capacity | 145L |
| Fork size | 1220mm×122mm×50mm |
| Fork rotary | 142° |
| Boom up/down | 8/8s |
| Boom extend/retract | 8/9s |
| Fork lift | 5s |
| Fork retract | 4s |
| A Overall length | 15ft 11in |
| B Overall width | 7ft 6in |
| C Overall height | 8ft 5in |
| F Wheelbase | 9ft 11in |
| G Min ground clearance | 1ft 5in |
| Rated capacity | 7716lb |
| Max lift height | 22ft 11in |
| Lift capacity at max height | 6614lb |
| Max forward reach | 12ft 11in |
| Lift capacity at max reach | 2646lb |
| Weight | 17559.8lb |
| Max traction force | 14837.39lb |
| Turning radius-outside | 13ft |
| Rated power | 97/120hp |
| Max torque | 339/368lb*ft |
| Displacement | 1.08/0.99gal |
| Max drive speed | 24.85mph |
| Hydraulic tank capacity | 38.3gal |
| Fuel tank capacity | 38.3gal |
| Fork size | 4ft×4.8in×1.968in |
