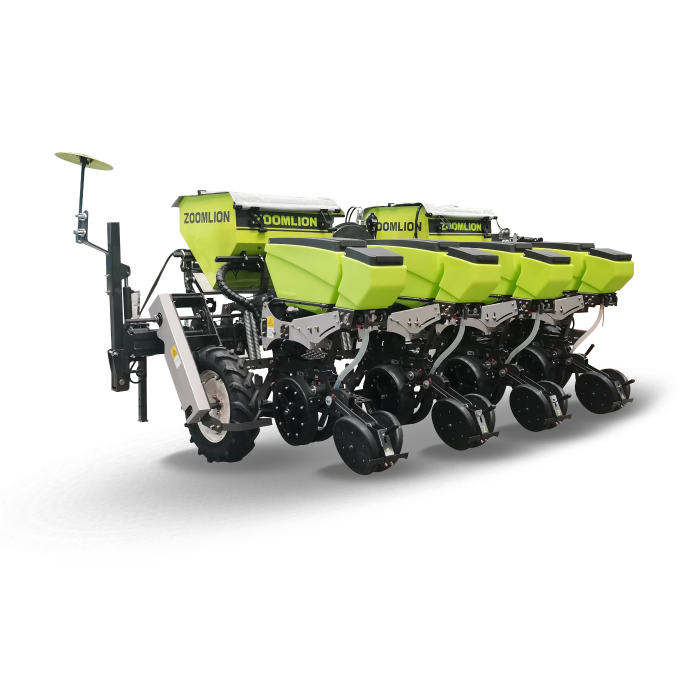

2BMXM Series Precision Seeder
| Model | 2BMXMF-4A 2BMXMF-6A 2BMXMF-8 |
|---|---|
| Overall dimensions/mm (L × W × H) | 1940×3200×1910 1940×4500×1910 1940×5900×1910 |
| Number of rows | 4 6 8 |
| Required tractor power/HP | 110+ 130+ 160+ |
| Required PTO speed/r/min | 540 540 540 |
| Operating weight/kg | 1222 1910 2168 |
| Hitch category | Category 2 Category 2 Category 3 |
| Row spacing/mm | 450-800 450-800 450-800 |
| Working width/mm | 1800-3200 2700-4500 3600-5900 |
| Seed hopper capacity/L | 50×4=200 50×6=300 50×8=400 |
| Fertilizer hopper capacity/L | 300×2=600 500×2=1000 650×2=1300 |
| Plant spacing/cm | 1-25 1-25 3-35 |
| Seeding depth/cm | 0-10 0-10 0-10 |
| Operating speed/KM/H | 6-10 6-10 6-10 |
| Field efficiency/hm²/h | 1.76-2.8 1.92-3.9 3.52-5.2 |
| Compatible tractor models | CN/RC/RM/RN904 CL/DL/PL/RG/RL/RS1604 RG1804/DG/PG/RG/RS2004 |
