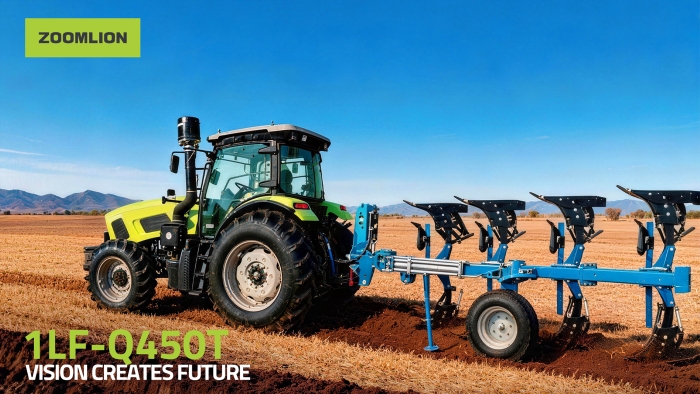

1LF-Q450T/Q550T Reversible Plow
| Model | 1LF-Q450T 1LF-Q550T |
|---|---|
| Overall dimensions (L × W × H)/mm | 4410 × 2416 × 1760 (Standard version)* 5168×3045×1798 (Standard version)* |
| Operating weight/kg | 1576* 1826* |
| Required tractor power/HP | 160-220 200-260 |
| Main frame structure | In-furrow/4 furrows (3+1) In-furrow/4 furrows (4+1) |
| Hitch category | Category 2, Category 3, Category 3N Category 2, Category 3, Category 3N |
| Beam size/mm | 120×120×10 120×120×10 |
| Furrow width/mm | 1000 1000 |
| Underbeam clearance/mm | 800 (Standard) 800 (Standard) |
| Body width/mm | 350/400/450/500 350/400/450/500 |
| Plowing depth/mm | 0-380 0-380 |
| Adjustment method | Mechanical Mechanical |
| Plowing speed, km/h | 6-12 6-12 |
| Depth wheel | Combined depth & Transport Wheel Combined depth & Transport Wheel |
| Transport speed, km/h | 25 25 |
| Overload protection type | Shear bolt protection Shear bolt protection |
| Plow body configuration | Slatted body, reinforced plow leg plate Slatted body, reinforced plow leg plate |
| Front furrow body | Small front moldboard Small front moldboard |
