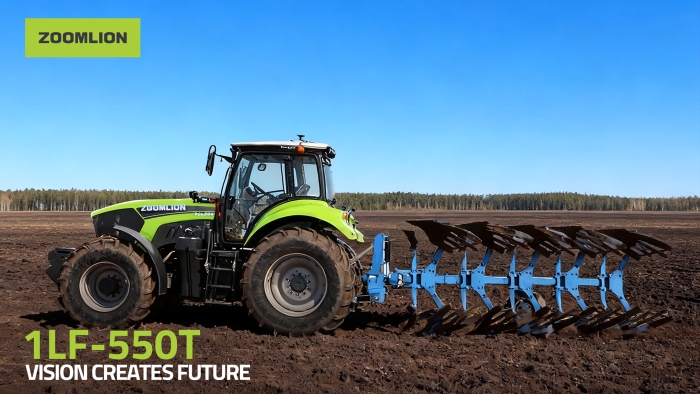

1LF-550T to 1350T Series Reversible Plow
| Model | 1LF-550T 1LF-560T 1LF-650T 1LF-750/850/950T 1LF-1050/1150/1250/1350T |
|---|---|
| Overall dimensions (L × W × H)/mm | 5370 × 3108 × 1860 (Standard version)* 6055 × 3485 × 1960 (Standard version)* 6415 × 3176 × 1860 (Standard version)* 11760 × 5900 × 1780 (Standard version)* 17085 × 7620 × 2480 (Standard version)* |
| Operating weight/kg | 2230* 2360* 2630* 5860* 8960* |
| Required tractor power/HP | 210-300 280-380 280-380 300-550 300-700 |
| Hitch category | Category 3, Category 3N, Category 4N Category 3, Category 3N, Category 4N Category 3, Category 3N, Category 4N On-land/in-furrow Category 3, Category 3N, Category 4N |
| Main frame structure | In-furrow/5 furrows (4+1) In-furrow/5 furrows (4+1) In-furrow/6 furrows (5+1) Category 3, Category 3N, Category 4N On-land/13 furrows (8+3+1+1) |
| Beam size/mm | 140×140×10 140×140×10 160×160×10 180×180×12.5 180×180×10 (twin beams) |
| Furrow width/mm | 1000 1200 1000 1000 1000 |
| Underbeam clearance/mm | 850 (Standard) 900 (Standard) 850 (Standard) 800/850/900 800/850/900 |
| Body width/mm | 350/400/450/500 420/480/540/600 350/400/450/500 350/400/450/500 350/400/450/500 |
| Plowing depth/mm | 0-380 0-380 0-380 0-380 0-380 |
| Adjustment method | Mechanical Mechanical Mechanical Mechanical Mechanical |
| Plowing speed, km/h | 6-12 6-12 6-12 8-12 8-12 |
| Depth wheel | Combined depth & Transport Wheel Combined depth & Transport Wheel Combined depth & Transport Wheel Combined depth & transport wheel Combined depth & transport wheel |
| Transport speed, km/h | 25 25 25 25 25 |
| Overload protection type | Shear bolt protection Shear bolt protection Shear bolt protection Shear bolt protection Shear bolt protection |
| Plow body configuration | Slatted body, reinforced plow leg plate Slatted body, reinforced plow leg plate Slatted body, reinforced plow leg plate Slatted body, reinforced plow leg plate Slatted body, reinforced plow leg plate |
| Front furrow body | Large front mouldboard Large front mouldboard Large front mouldboard Large front mouldboard Large front mouldboard |
| Compatible tractor models | DG2204 PQ2804 PQ2804 PV3204 DV3504 DV4004/4104 DV4004/4104 DX7004 |
| PL2304-3 | PV3204 PV3204 |
| PQ2404 | DV3504 DV3504 |
