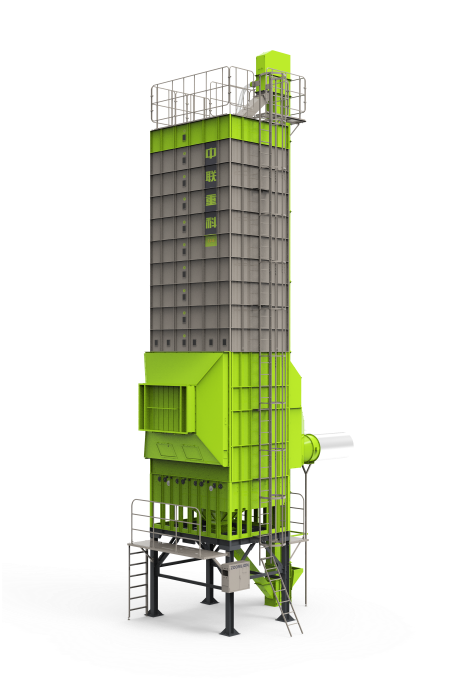

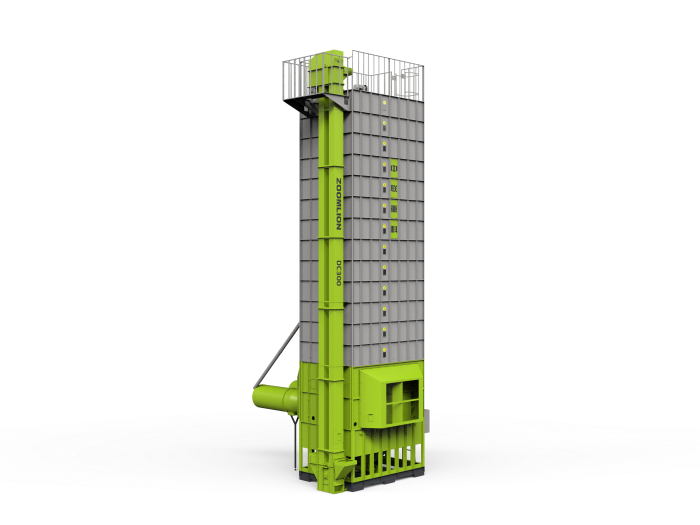

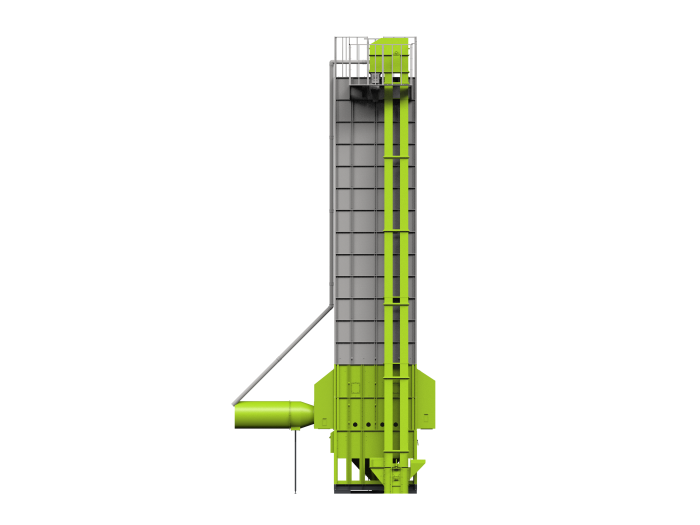

5HXH-30
| Model | 5HXH-30 |
|---|---|
| ID No. | DF300-G DF300-E |
| Parameter | Unit Value/Specification |
| Upper discharge chute + lower auger | Upper discharge chute + lower discharge chute |
| Structure type (continuous flow/batch recirculating/batch static) | / Batch recirculating |
| Heating mode (direct/indirect heating) | / Indirect heating |
| Drying principle (concurrent flow/cross flow/mixed flow/counter flow) | / Mixed flow |
| Overall dimensions (L × W × H) | mm 3090×2260×12028 |
| Batch capacity | t 30 |
| Moisture removal rate | %/h 0.6-1.2 |
| Number of drying sections | pcs 1 |
| Number of tempering sections | pcs 1 |
| Total height of drying sections | mm 3300 |
| Total height of tempering sections | mm 6000 |
| Effective volume | m³ 53.61 |
| Hot air temperature range | ℃ 30-120 |
| Fan type (positive/negative pressure) | / Negative pressure |
| Total motor power | kW 16.94 15.84 |
| Elevator capacity | t/h ≥ 30 |
