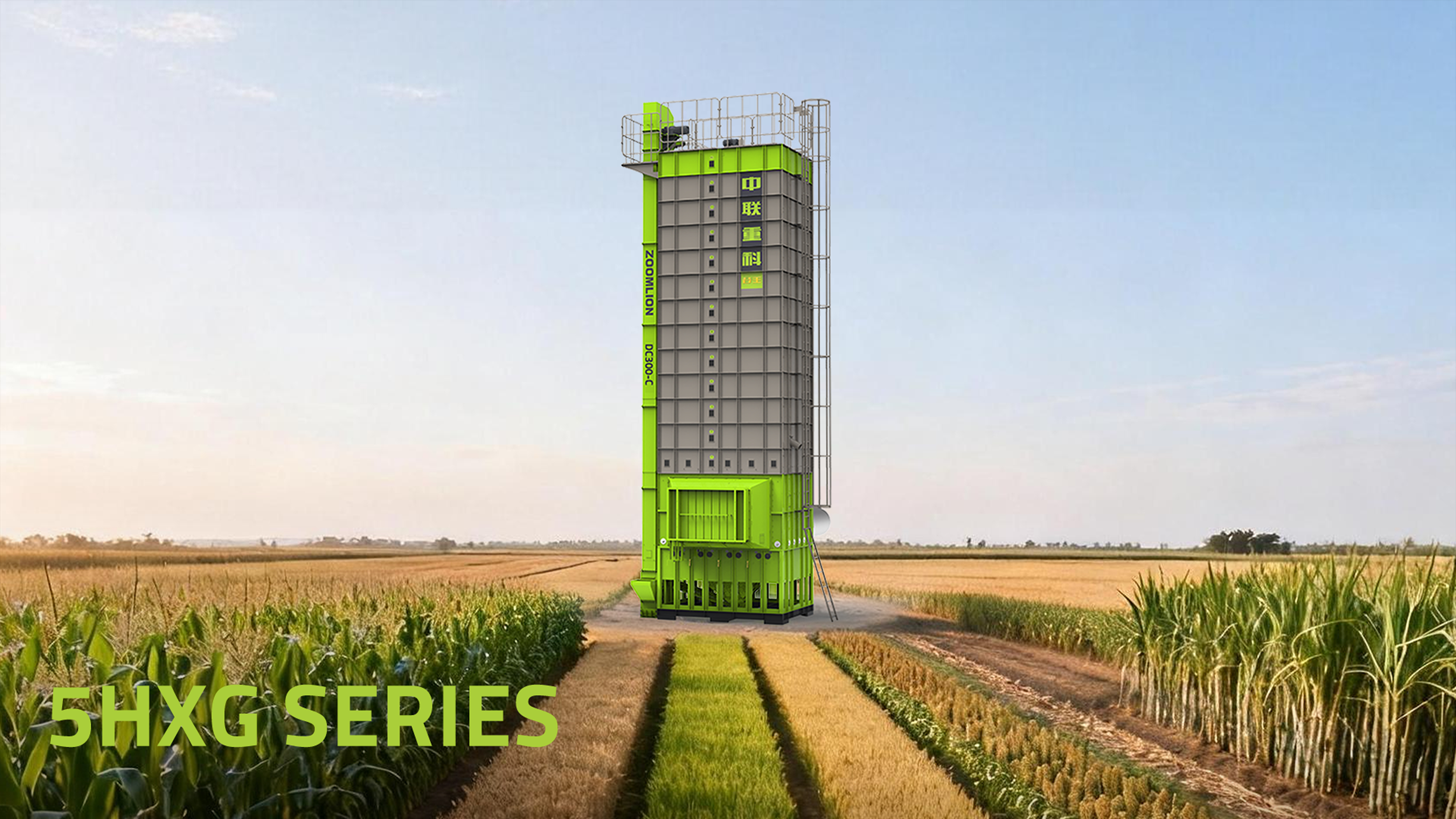

5HXG-30E
| Model | 5HXG-30E |
|---|---|
| ID No. | DC300-E |
| Configuration | / Upper discharge chute + lower discharge chute |
| Structure type (continuous flow/batch recirculating/batch static) | / Batch recirculating |
| Heating mode (direct/indirect heating) | / Indirect heating |
| Drying principle (concurrent flow/cross flow/mixed flow/counter flow) | / Cross flow |
| Overall dimensions (L × W × H) | mm 3090×2790×11880 |
| Batch capacity | t 30 |
| Moisture removal rate | %/h 0.6-1.2 |
| Effective volume | m³ 54.3 |
| Hot air temperature range | ℃ 30-120 |
| Fan type (positive/negative pressure) | / Negative pressure |
| Power supply | V/Hz 380 V/ 50 Hz, three-phase four-wire (with ground) |
| Total power consumption | kW 19.84 |
| Heat source options | / Biomass furnace, electric heat pump, oil/gas burner, steam heat exchanger |
| Thermal power | KJ/h ≥ 1250000 |
