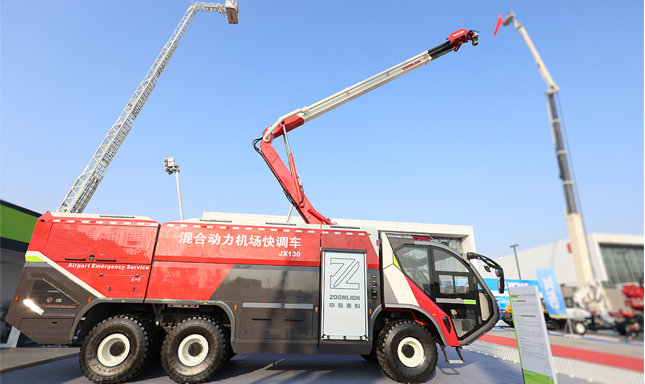

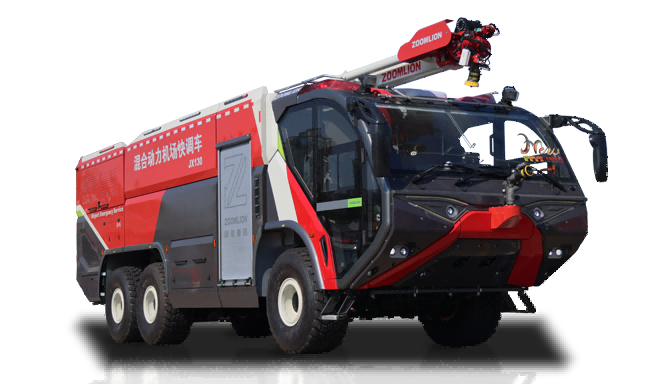

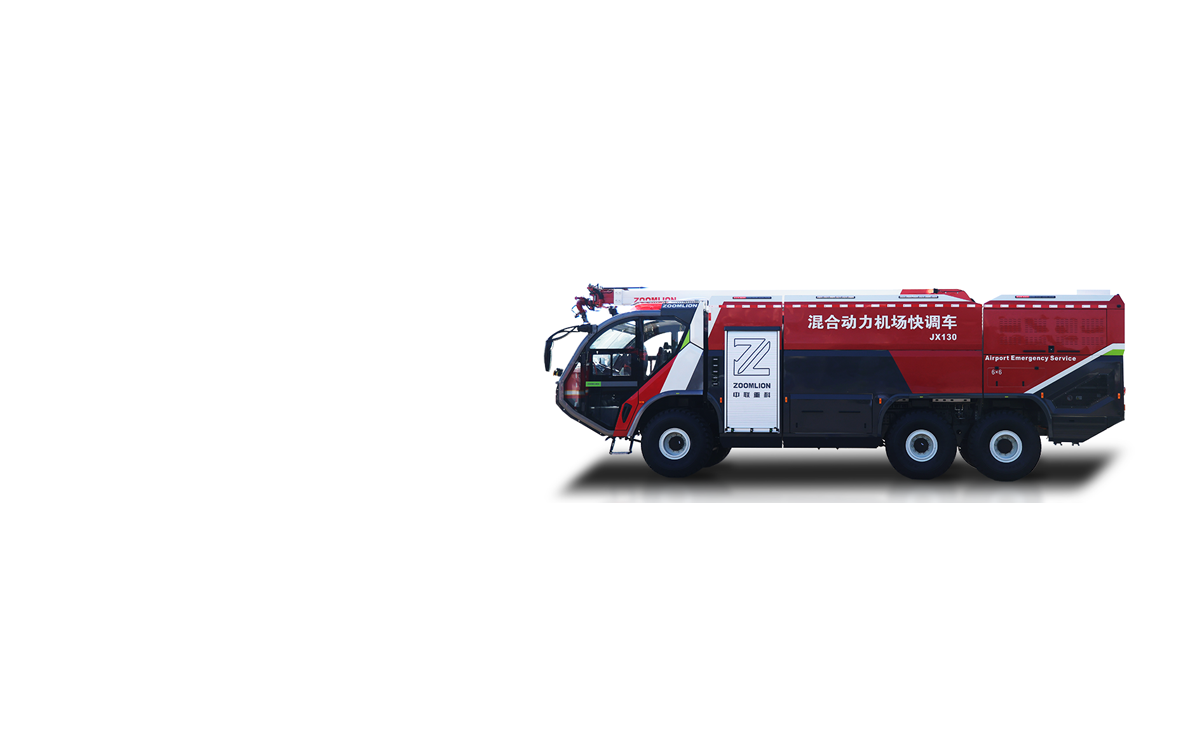

ZLF5390GXFJX130
| P erformance | Unit Parameter |
|---|---|
| Dimensions(length x width x height) | mm 11800x3100x3890 |
| Full load quality | kg 38400 |
| Rated power | Kw 626 (peak value 800) |
| Specific power | kw/t 16 |
| 0-80km/h acceleration time | s 20 |
| Maximum speed | km/h 120 |
| Extinguish train speed while moving | km/h 60 |
| Fire pump flow rate | L/s 150 |
| Roof monitor flow rate | L/s 100 |
| Roof monitor range | m Water ≥ 90, foam ≥ 85 |
| Front monitor flow rate | L/s 24 |
| Front monitor range | m Water ≥ 58 |
| Vehicle mounted fire extinguishing agent | kg Water ≥ 10600, foam ≥ 2000 |
| Maximum working height of boom | m 17.5 |
| Person capacity | people 6 |
