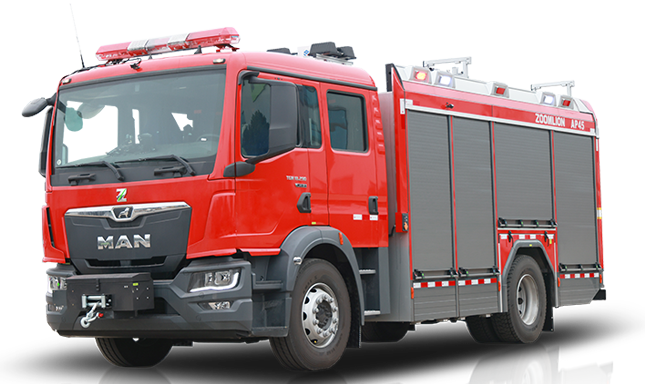

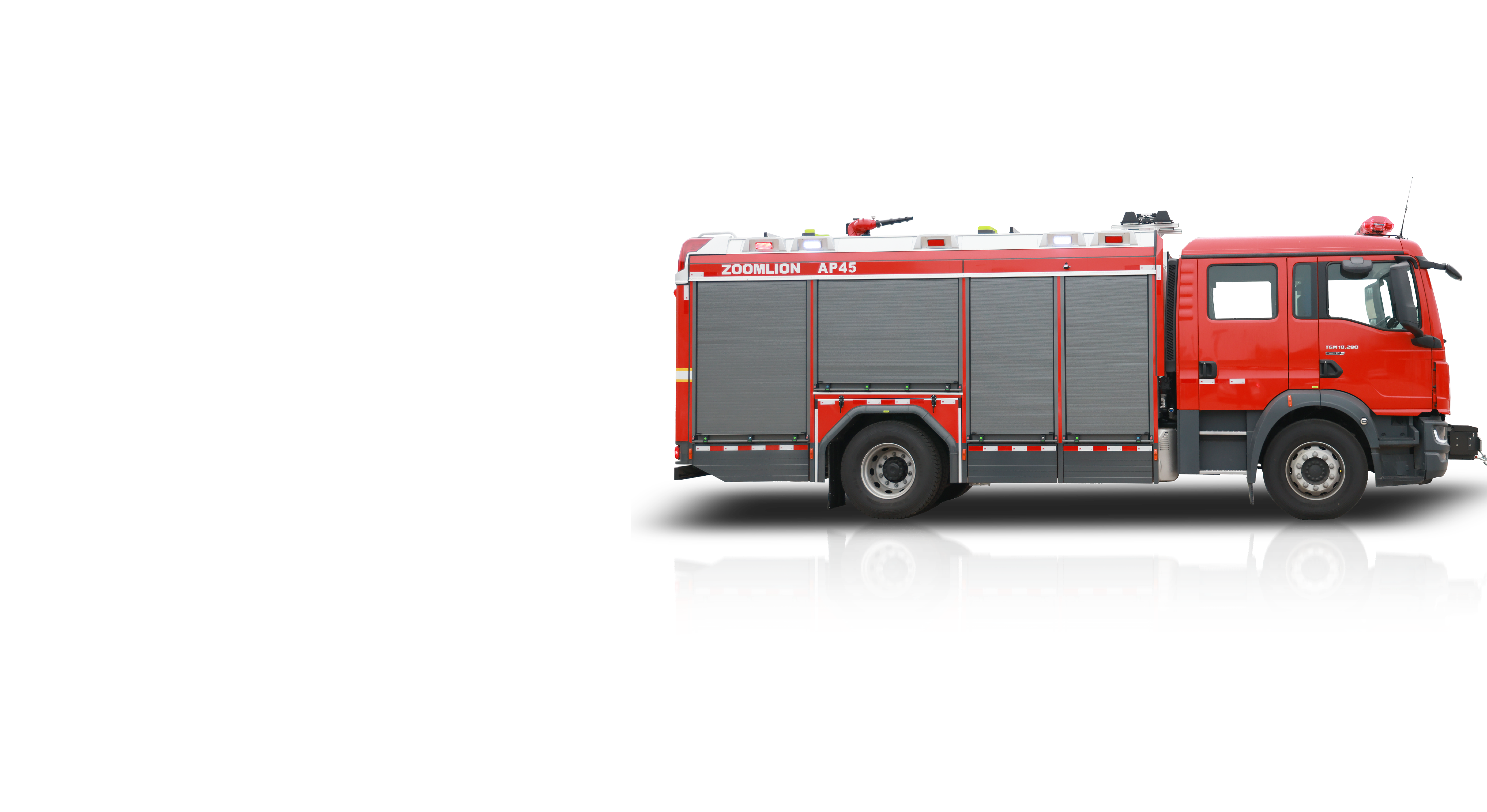

ZLF5166GXFAP45
| Performance | Unit Parameter |
|---|---|
| Chassis Model | / MAN TGM18.290 |
| Maximum engine power | kW/rpm 215 |
| Person capacity | people 2+4 |
| Maximum driving speed | km/h 95 |
| Specific power | kW/t 13 |
| Dimensions （length x width x height） | mm 8600x2520x3440 |
| Total Quality | kg 16000 |
| Fuel tank capacity | L 150 |
| wheelbase | mm 4425 |
| Tank volume | L 3800 （water）+200 （foam）+500 （type B foam） |
| Fire pump flow rate | L/ min@MPa 3600@1.0 |
| Fire monitor flow rate | L/min 3600 |
| Fire cannon range | m ≥ 70 （water）/24 （foam monitor） |
| Compressed air foam system model | / PTO-CAFS120/MBP |
| Fire monitor model | / PS10/60-3430A |
