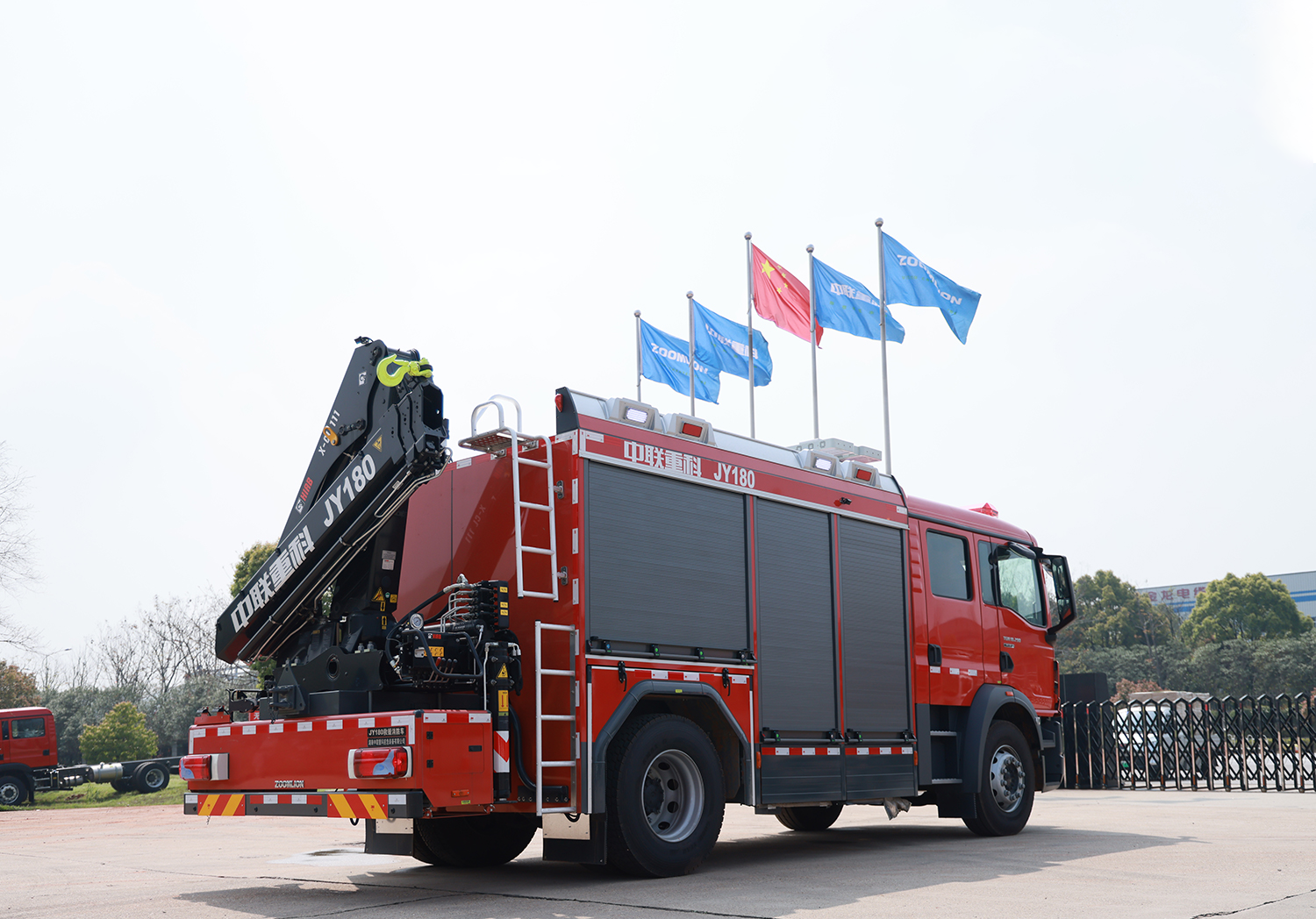

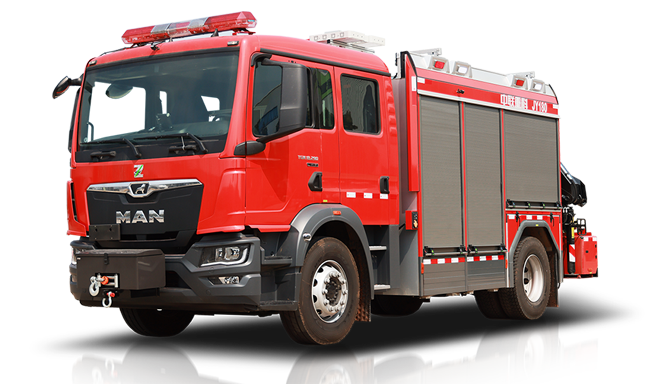

ZLF5140TXFJY180
| Performance | Unit Parameter |
|---|---|
| Dimensions （length x width x height） | mm 8460×2510×3420 |
| GVW | kg ≤13600 |
| Maximum lifting weight of the crane | kg 6000 |
| Maximum lifting amplitude of the crane | m 8.05 |
| Maximum traction force of winch | kN 74 |
| Maximum traction distance of winch | m 33 |
| Generator output power | kW 10 |
| Power of lifting lighting | W 4×600（LED） |
