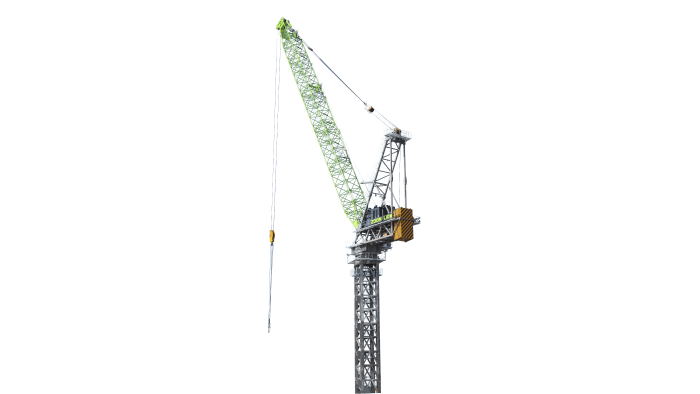

LH3350-120

Category Unit Ⅱ Falls Ⅲ Falls Ⅳ Falls Max. hoisting capacity t 5 7.5 10 Max. hoisting capacity at jib end (55m) t 2.4 2.34 2.29 Max. free standing height m 57.15 Jib length m 30~55 Hoisting speed t 5 2.5 1.25 7.5 3.75 1.88 10 5 2.5 m/min 45 90 112 30 60 75 22 45 56…

Category Unit Ⅰ Falls Ⅱ Falls Max. hoisting capacity t 25 50 Max. hoisting capacity at jib end (60m) t 11.8 11 Max. free standing height m 51.45 Jib length m 45~60 Hoisting speed t 25 12.5 6.25 2.5 50 25 12.5 5 m/min 40 80 120 140 20 40 60 70 Slewing speed r/min 0~0.6 Luffing…

Category Unit Ⅱ Falls Ⅲ Falls Ⅳ Falls Max. hoisting capacity t 5 7.5 10 Max. hoisting capacity at jib end (50m) t 1.5 1.45 1.39 Max. free standing height m 44.2 Jib length m 25~50 Hoisting speed t 5 5 2.5 7.5 7.5 3.75 10 10 5 m/min 28 40 80 18 26.5 53 14 20 40…
