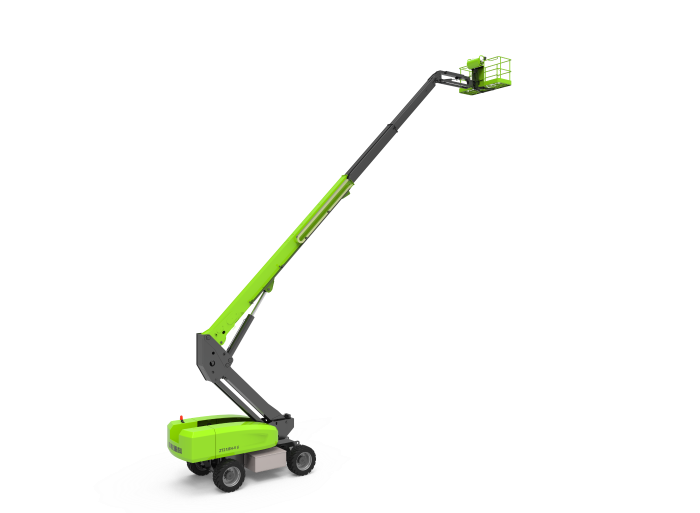

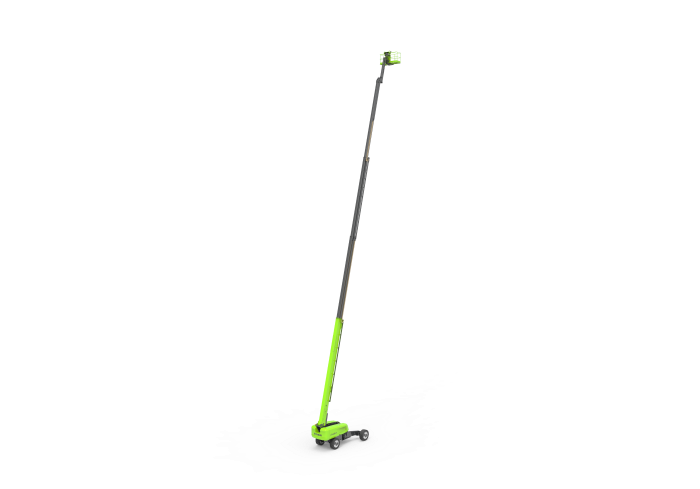

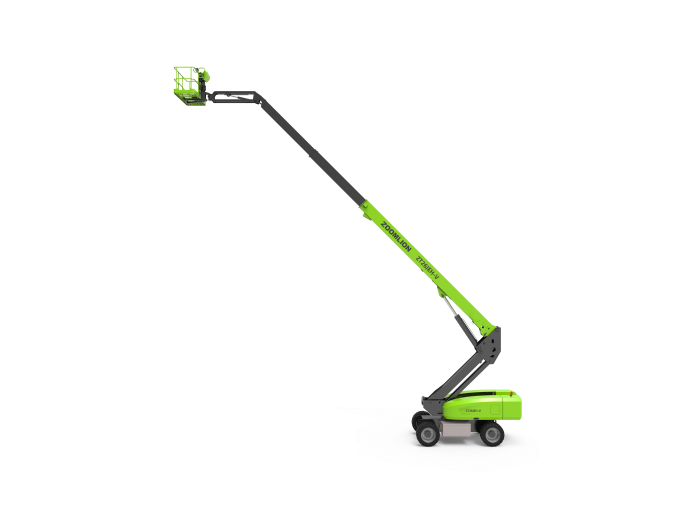

ZT26JEH
| Work Height | 28.7m&& |
|---|---|
| Platform Height | 26.7m&& |
| Horizontal Outreach | 22.1m&& |
| A – Stowed Length (w/ platform） | 11.91m&& |
| D – Stowed Length (w/o platform) | 2.44m&& |
| B – Stowed Width | 2.49m&& |
| C – Stowed Height | 2.82m&& |
| E – Platform Length | 0.91m&& |
| F – Platform Width | 2.80m&& |
| G – Platform Height | 0.41m&& |
| Platform Capacity | 300/454kg&& |
| Drive Speed | 5.5km/h&& |
| Gradeability | 45%(24°)&& |
| Platform Rotation | ±90°&& |
| H-Tail Swing | 1.61m&& |
| Max Wind Speed | 12.5m/s&& |
| Battery | 80V/460Ah&& |
| Charger | 80V/80A&& |
| Drive Motor | 5.2KW&& |
| Lift Motor | 30KW&& |
| Auxiliary Power | 12V DC&& |
| Hydraulic Tank Capacity | 120L&& |
| Crawler type | Foam filled tire/Solid tire&& |
| Gross weight | 17000kg&& |
