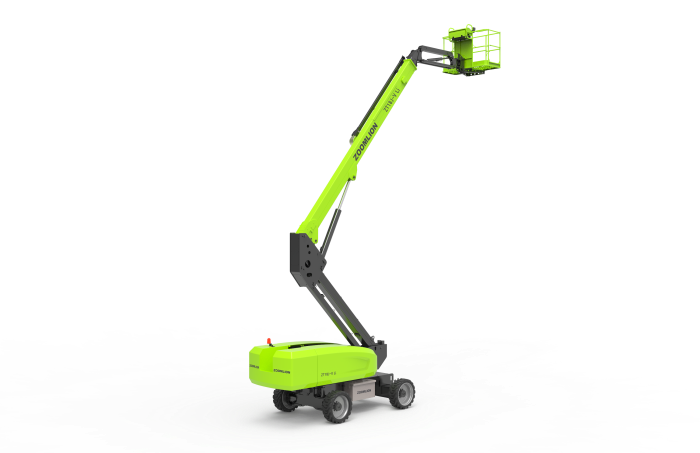

ZT18JE-Li
| Work Height | 20.6m |
|---|---|
| Platform Height | 18.6m |
| Horizontal Outreach | 13.3m |
| A – Stowed Length | 9.74m(7.6m) |
| B – Stowed Width | 2.28m |
| C – Stowed Height | 2.57m |
| D – Platform Length | 1.83m |
| E – Platform Width | 0.76m |
| F – Wheelbase | 2.52m |
| Tread | 2.28m |
| G – Ground Clearance | 0.33m |
| Platform Capacity (Unrestricted/Restricted) | 300kg |
| Drive Speed (Stowed) | 5.2km/h |
| Gradeability | 45%(24°) |
| Turning Radius (Inside) | 2.69m |
| Turning Radius (Outside) | 5.45m |
| Turntable Swing | 360°continuous |
| Platform Rotation | ±90° |
| Tail Swing | 1.7m |
| Jib Rotation | 135°（﹣60°~75°） |
| Max. Wind Speed | 12.5m/s |
| Charger | 48V/60A |
| Drive Motor | 3.3KW |
| Lifting Motor | 10KW |
| Auxiliary Power | 12V DC |
| Hydraulic Tank | 75L |
| Type | Foam-filled tire |
| Gross | 8600KG |
| Work Height | 67ft 7in |
| Platform Height | 61ft |
| Horizontal Outreach | 43ft 8in |
| A – Stowed Length | 31ft 11in(24ft 11in) |
| B – Stowed Width | 7ft 6in |
| C – Stowed Height | 8ft 5in |
| D – Platform Length | 6ft |
| E – Platform Width | 2ft 3in |
| F – Wheelbase | 8ft 3in |
| Tread | 7ft 6in |
| G – Ground Clearance | 1ft 1in |
| Platform Capacity (Unrestricted/Restricted) | 660lb |
| Drive Speed (Stowed) | 3.23mph |
| Turning Radius (Inside) | 8ft 10in |
| Turning Radius (Outside) | 10ft 11in |
| Turntable Swing | 360°continuous360°continuous |
| Tail Swing | 5ft 7in |
| Max. Wind Speed | 28mph |
| Hydraulic Tank | 19 gal |
| Gross | 18353LB |
